Jireh Skoot Manual

Motorized scanner
Hide thumbs Also See for Skoot:
Table of Contents

Advertisement

Quick Links

Download this manual
DN0047 Rev 04.2
Motorized Scanner

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Skoot and is the answer not in the manual?

Questions and answers

Related Manuals for Jireh Skoot

Summary of Contents for Jireh Skoot

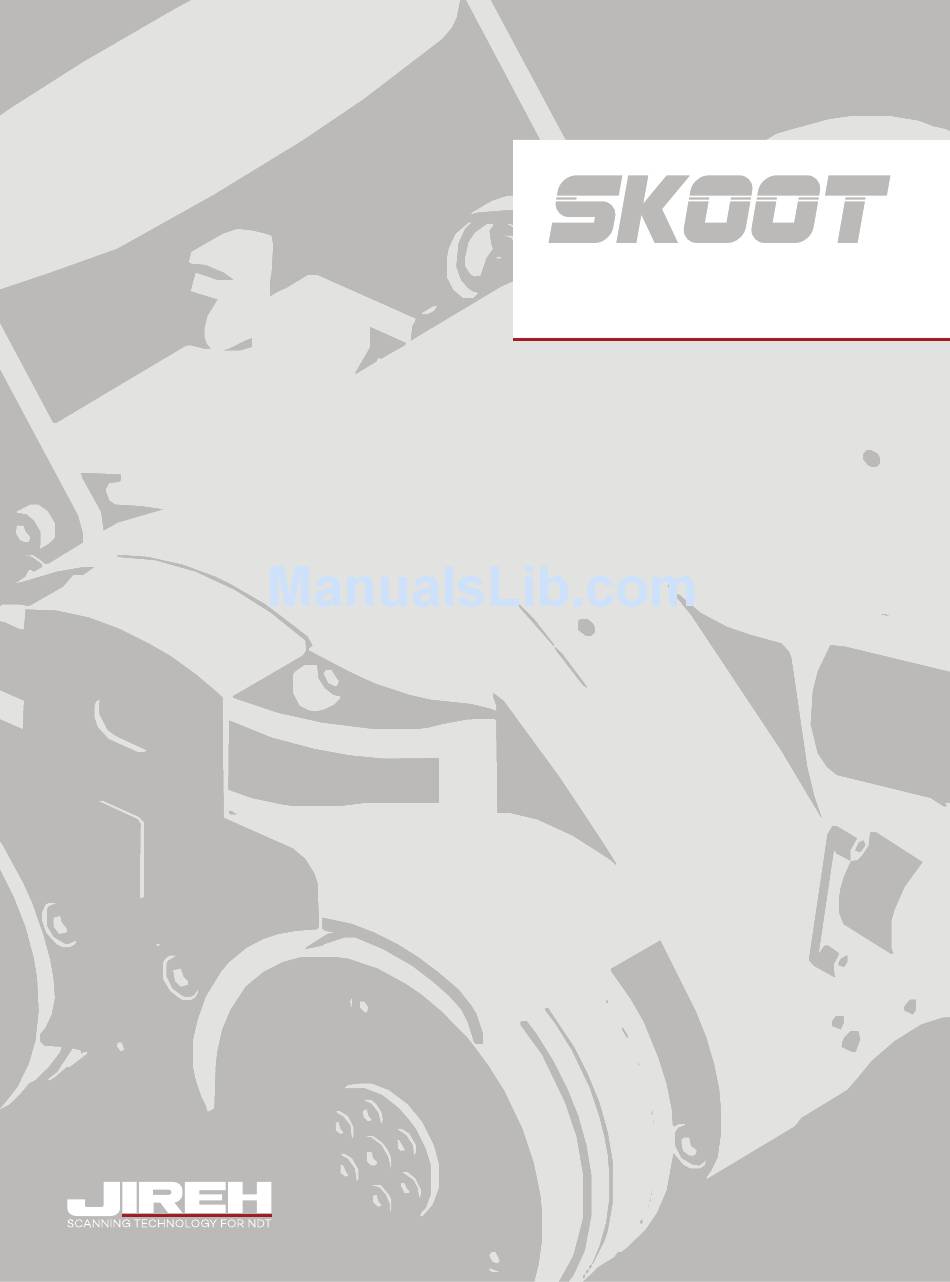

  • Page 1 DN0047 Rev 04.2 Motorized Scanner...
  • Page 2 SAFETY WARNINGS / PRECAUTIONS KEEP THIS MANUAL – DO NOT LOSE THIS MANUAL IS PART OF THE SKOOT SYSTEM AND MUST BE RETAINED FOR THE LIFE OF THE PRODUCT. PASS ON TO SUBSEQUENT OWNERS. Ensure any amendments are incorporated with this document.
  • Page 3 Pinch points exist with this product. Keep fingers and hands clear of pinch points. CAUTION! DO NOT operate the SKOOT crawler on an inspection surface which is electrically connected to a component that is being welded. CAUTION! Do not disconnect under load. Shut off power before connection or disconnecting.
  • Page 4 (see Disposal on page 109 for additional details) NOTE: The above safety warnings highlighted in white are labelled on the products. DISTRIBUTOR: MANUFACTURER: Jireh Industries Ltd. 53158 Range Road 224 Ardrossan, Alberta, Canada T8E 2K4 Phone: (780) 922-4534...

  • Page 5: Table Of Contents

    TABLE OF CONTENTS Introduction Chapter 1.1. Product Information 1.1.1. Intended use 1.1.2. Unintended Use 1.2. Regulations 1.2.1. European Union CE Declaration 1.2.2. FCC 1.2.3. Industry Canada 1.3. Intended User 1.4. Crawler Weight 1.5. Crawler Dimensions 1.6. Scanner Operation Specifications 1.7. Performance specifications 1.8.
  • Page 6 4.3.6. System Utilities Screen 4.3.6.1 User Settings Screen 4.3.6.2 Diagnostics Screens 4.3.6.2.1. Detected Modules 4.3.6.2.2. System 1 4.3.6.2.3. System 2 4.3.6.2.4. System 3 4.3.6.2.5. Skoot-L, Raster 4.3.6.3 Touch Calibration Screen 4.3.6.4 Joystick Calibration Screen 4.3.6.5 Draw System Components Chapter 5.1. Handheld Controller 5.2.
  • Page 7 5.4. Raster Arm Module 5.4.1. Mounting a Raster Arm 5.4.2. Attaching a Cable Tray 5.4.3. Using the Cable Tray 5.4.4. Raster Arm Cable Setup 5.5. Probe Holder Attachments 5.5.1. HydroFORM™ Probe Holder 5.5.2. Heavy Duty Vertical Probe Holder 5.5.2.1 Probe Holder Setup 5.5.2.2 Probe Holder Vertical Adjustment 5.5.2.3 Probe Holder Left/Right Conversion 5.5.2.4 Probe Holder 90°...
  • Page 8 Chapter 8.1. Technical Support 8.2. Disposal Spare Parts Chapter 9.1. Skoot Crawler 9.2. Skoot Kit Components 9.3. Raster Arm Module 9.3.1. Mounting Rail 9.3.2. Cable Tray 9.4. Probe Holder Frame 9.5. Low Profile Probe Holder Frame 9.6. Pivoting Probe Holder Frame DN0047 Rev 04.2...
  • Page 9 9.7. Slip Joint Probe Holder Parts 9.8. Vertical Probe Holder Parts 9.9. Heavy Duty Vertical Probe Holder 9.10. Corrosion Thickness Probe Holder 9.11. HydroFORM™ Probe Holder 9.12. Probe Holder Components 9.12.1. Arm Style 9.12.2. Yoke Style 9.12.3. Heavy Duty Yoke Style 9.12.4.

  • Page 10: Introduction

    1.36 kg (3 lb) ► are attached to the SKOOT via a tether or probe cables strong enough to ► prevent the object from falling have smooth edges so as not to cut backpack strap ►...

  • Page 11: Unintended Use

    ► than 1.36 kg or objects that are not attached to the SKOOT via a (3 lb) tether or probe cables, or objects with sharp edges 1.2. Regulations 1.2.1.

  • Page 12: Fcc

    People with pacemakers or ICD’s must stay at least 25 cm away. (10 in) The SKOOT is intended to be used by persons who have read and understood this user manual. For operating at a height greater than 2 m , the SKOOT is intended to be used...

  • Page 13: Crawler Weight

    1.4. Crawler Weight WARNING! LIFTING HAZARD. The SKOOT can be heavy. Single person lift could cause injury. Two person lift recommended. Crawler weight* 7.3 kg 16 lb Raster arm 300 mm 2.45 kg 5.4 lb (12 in) Raster arm 600 mm 3.36 kg...

  • Page 14: Performance Specifications

    (refer to generator manual) Shut off power before connection or disconnecting. Permanent damage to electronics could occur. Power Requirements: 100-240VAC, 50/60Hz, 1.4 Amps NOTE: The SKOOT power controller automatically adjusts to the supplied voltage. DN0047 Rev 04.2 PAGE 5...

  • Page 15: Encoder Interface Specifications

    Enc +5V Enc Com Shield - Jireh Industries pin out configuration Fig. 3 1.10. Operating Environment The SKOOT is designed for operation in ambient temperatures between -20° C and 50° C (-4° F) (122° F) 1.11. Definition of symbols Instructions to ‘look here’ or to ‘see this part’.

  • Page 16: Included Tools

    Fig. 5 - 3 mm hex driver Fig. 4 The included 3 mm hex driver (Fig. 4) suitable for typical SKOOT and probe holder adjustments. A 3/8 in wrench is provided to (Fig. 5) remove and install probe holder buttons.

  • Page 17: Preparation For Use

    2.1. Transportation CAUTION! PINCH / CRUSH HAZARD. BE CAREFUL when passing the SKOOT crawler through narrow ferrous (magnetic) openings, such as man-holes. The magnetic drive wheels can cause bodily harm if allowed to slam onto the walls of the opening.

  • Page 18: Tether Requirements And Attachment

    Before placing the crawler on the surface to be inspected , attach the (e.g. tank) provided lifting sling to the SKOOT and then hook the tether hook to the lifting sling. CAUTION! The overhead attachment point for the tether must be located as close as possible...

  • Page 19: Lifting Sling Setup

    - Attach the lifting sling with a choker hold Fig. 12 Fig. 13 Wrap the supplied lifting sling around the handle of the SKOOT using a choker hold knot (Fig. 12) and (Fig. 13) Ensure the lifting sling is attached correctly to the SKOOT and inspect the lifting sling for any damage prior to use.

  • Page 20: Scanner Component Identification

    2.5. Scanner Component Identification The SKOOT system may contain the following components (see System Components on page 37 for additional details) - Skoot - Backpack - Manipulation handle Fig. 14 (crawler) Fig. 15 Fig. 16 - Handheld controller - Encoder cable - Controller cable Fig.
  • Page 21 - Raster arm - HydroFORM™ probe holder - Corrosion thickness probe Fig. 26 Fig. 27 Fig. 28 holder - Low profile probe holder frame - Probe holder frame - Pivoting probe holder frame Fig. 29 Fig. 30 Fig. 31 - Heavy Duty Probe Holder Fig.

  • Page 22: Configurations

    Chapter 3 CONFIGURATIONS 3.1. Crawler with Raster Arm Module Description BOM ID Raster Arm Crawler Raster Cable Umbilical Controller Cable (alt) Controller Cable (main) Power Controller User’s Instrument Encoder Cable Handheld Controller - Raster arm configuration Fig. 33 DN0047 Rev 04.2 PAGE 13...
  • Page 23 To configure the SKOOT system for scanning using a raster arm module, follow these steps (see Backpack on page 43 for additional details) CAUTION! Do not disconnect under load. Shut off power before connection or disconnecting. Permanent damage to electronics could occur.

  • Page 24: Crawler With Probe Holder Frame

    3.2. Crawler with Probe Holder Frame Description BOM ID Probe Holder Frame Crawler Umbilical Power Controller Controller Cable (alt) Controller Cable (main) User’s Instrument Encoder Cable Handheld Controller - Probe holder frame configuration Fig. 34 DN0047 Rev 04.2 PAGE 15...
  • Page 25 To configure the SKOOT system for scanning using a probe holder frame, follow these steps (see “Probe Holder Frame” on page 86) CAUTION! Do not disconnect under load. Shut off power before connection or disconnecting. Permanent damage to electronics could occur.

  • Page 26: Operation

    Chapter 4 OPERATION 4.1. System Startup - Power controller Fig. 35 To activate the system, follow these steps: Plug-in the power controller to the appropriate power source (see “Power Requirements” on page 5) Connect the components (see “Configurations” on page 13) Locate the red emergency stop push-button on the power controller.
  • Page 27 A warning message will display on the handheld controller when power has been activated . Once the dangers of using the SKOOT are recognized (Fig. 37) and understood by reading this user manual, touch Ok to acknowledge the warning. *** DANGER ***...

  • Page 28: Placement Of Crawler On Inspection Surface

    4.2. Placement of Crawler on Inspection Surface IMPORTANT! To place the crawler on the inspection surface, use the scanner installation/removal as a spacer between the wheels and the (Fig. 22) surface on which the crawler is to drive. This is necessary to protect the electronic components within the crawler from damaging shock, should the crawler be slammed directly onto the surface.
  • Page 29 Set the crawler to Jog Mode (see “Jog Mode” on page 23) - Place installation/removal mat - Lower crawler to mat Fig. 40 Fig. 41 Place the installation/removal mat on the inspection surface (Fig. 22) (Fig. 40) WARNING! MAGNETIC MATERIAL. The installation/removal mat contains magnetic material.

  • Page 30: Operation

    TIP: Avoid the crawler slamming to the inspection surface. This can occur when all four wheels are not in contact with the installation/removal mat while the crawler is driven onto the inspection surface. Remove the installation/removal mat from the inspection surface. TIP: Circumstance may arise when only one person is available for placement of the crawler on a inspection surface.

  • Page 31: Touchscreen

    Net Status: 05000000 Last Error: 00118130 Status Word: 1217 4.3.1.1 Touchscreen Current mA: The handheld controller touchscreen is the primary operator (Fig. 45-5) interface for the system. Buttons are indicated on-screen with a 3D Temperature: border (Fig. 46). PREV NEXT Exit - Sample touchscreen buttons Fig.

  • Page 32: Jog Mode

    4.3.3. Jog Mode Jog mode manually controls the system movement using the joysticks. Jog Mode SCAN Jog Mode SCAN Zero Crawler Crawler Raster Zero 76mm/s 76mm/s 92mm/s Exit Exit - Jog mode with raster arm - Jog mode Fig. 48 Fig.
  • Page 33 Press to set the position to any value using the Edit screen. When a module position is modified, the position will be modified for all other system modes. SKOOT NOTE: This function only zeroes the number displayed on the handheld controller.

  • Page 34: Latched Jog Mode

    4.3.4. Latched Jog Mode Jog Mode SCAN Zero Crawler Raster 76mm/s 92mm/s Screen or Knob to STOP Exit - Latched Jog Mode Fig. 51 Identical to standard jog mode, latched jog mode adds forward or reverse crawler movement at the selected scan rate. This eliminates the need to manually hold the left joystick (see “Jog Mode”...

  • Page 35: Two Axis Scan Setup Screen

    4.3.5.1 Two Axis Scan Setup Screen Two Axis Scan Setup Scan Index Index Path Speed Exit - Two axis scan setup The Two Axis Scan Setup screen is used to program the desired scan pattern the system will use. Point A – The current position of the crawler and index axis. The A position may also be set while in the Jog Modes.

  • Page 36: Scan Speeds Screen

    Index C Past Max Raster Travel - Run button error Fig. 54 Run Button: Initiates a check of the input values to ensure they are within the system capabilities. When a scan pattern is invalid or out of range points entered, a warning will be displayed .

  • Page 37: Two Axis Scan Screen

    4.3.5.3 Two Axis Scan Screen Two Axis Scan Setup Scan Index Start Reset Exit - Two axis scan screen Fig. 56 The Two Axis Scan screen initiates and monitors the two axis scan. The screen displays a visual representation of the scan area (Fig.
  • Page 38 During a scan, a graphical representation of the scanner path is displayed (Fig. 57) Two Axis Scan Scan 178mm Index 166mm Stop Reset Exit - Scan path close up Fig. 58 When the scanner reaches the scan area, the graphic zooms to display that scan area.

  • Page 39: System Utilities Screen

    4.3.6. System Utilities Screen Utilities User Settings Diagnostics Touch Cal Joystick Cal Draw Bounce Exit - Utilities screen Fig. 60 The Utilities screen provides access to the setup, diagnostics and user preference settings. User Settings Button: Access the User Settings screen allowing for various user preferences to be adjusted.

  • Page 40: Diagnostics Screens

    TITLE DESCRIPTION VALID DEFAULT RANGE Units In=0/MM=1 Changes the measurement units for display and user entry. When set to 0, units measure in inches. When set to 1, units measure in millimeters. Crawler Scan Sets the crawler scan rate in the 5-142 mm/s 43 mm/s unit/s...

  • Page 41: Detected Modules

    4.3.6.2.1. Detected Modules Diagnostics Detected Modules Skoot-L Raster600 NEXT Exit - Detected modules screen Fig. 62 Screen indicates the system software version and displays which modules were detected when the system was activated. 4.3.6.2.2. System 1 Diagnostics System 1 PowerOnTime:...

  • Page 42: System 3

    4.3.6.2.3. System 2 Diagnostics System 2 Free Timer: 5568 Heart Timer: Scrollwheel: Scrollbutton: Port B: 1010000000000000 Port D: 1100110000011110 PREV NEXT Exit - Diagnostic screen Fig. 64 Additional general system function information is displayed within the System 2 screen. An empty button is provided to allow testing of the click wheel.

  • Page 43: Skoot-L, Raster

    Exit - Diagnostic screen Fig. 66 The Skoot-L diagnostic screen provides information regarding the status of the crawler. A separate screen is available for each module detected upon system startup. CURRENT mA – Displays the output of the crawler to the motor. The current (mA) displayed is directly proportional to the motor’s output torque.

  • Page 44: Touch Calibration Screen

    4.3.6.3 Touch Calibration Screen - Touch calibration screen Fig. 68 This option allows calibration of the touch screen. Typically, this should not be necessary. Touch the screen as the markers appear in the four corners of the screen. TIP: It is recommended that the markers be touched with a small object to enhance the touch position accuracy during calibration.

  • Page 45: Draw

    Joystick Calibration Left: Right: Calibrate Exit - Joystick calibration screen Fig. 70 Current readings of the joysticks are displayed in the Joystick Calibration screen . When the numbers are not near zero, (Fig. 70) press the Calibrate button to recalibrate to 0. The new calibration is stored when the Exit button is pressed.

  • Page 46: System Components

    Chapter 5 SYSTEM COMPONENTS 5.1. Handheld Controller - Handheld controller Fig. 72 The handheld controller is used to manipulate a scanner installed on an inspection surface. User settings and scan information are edited using the handheld controller. The handheld controller is connected to the power controller with the controller cable (Fig.

  • Page 47: Crawler

    5.2. Crawler - Crawler Fig. 73 The crawler includes the motor encoder, umbilical connections and accessory mounting point. WARNING! MAGNETIC MATERIAL. The wheels of the crawler produce an extremely strong magnetic field which may cause failure or permanent damage to items such as watches, memory devices, CRT monitors, medical devices or other electronics.

  • Page 48: Swivel Mount

    5.2.1. Swivel Mount - Frame bar installation - Swivel mount angle Fig. 74 Fig. 75 Located at the front of the crawler, the swivel mount is used to connect scan- ning accessories such as a raster arm module, probe frame system or corro- sion thickness probe holder.

  • Page 49: Umbilical

    - Connect to umbilical - Align with crawler’s umbilical mount Fig. 79 Fig. 80 Align the pins of the umbilical to the connector at the rear of the SKOOT (Fig. 79) Twist the umbilical’s sleeve clockwise locking the umbilical in place. (Fig. 80) 5.2.3.

  • Page 50: Emergency Off Button

    The red button located on the top left of the crawler provides an emergency off button to the entire system. When pressed, all power to the SKOOT system will disengage. To restore system power, it is necessary to press the...

  • Page 51: Manipulation Handle

    5.2.6. Manipulation Handle - Manipulation handle Fig. 87 The manipulation handle provides a means of orienting the scanner (Fig. 87) direction. The handle can be used to set initial scanner direction as well as occasional orientation correction. The manipulation handle is not intended as a tool for constant adjustment during a scan operation.

  • Page 52: Backpack

    5.3. Backpack The SKOOT backpack provides a mounting point for scanning peripherals. The flexible strap securely holds any pre-amp, splitters or scan accessories to the SKOOT crawler. 5.3.1. Mounting a Backpack To mount the backpack, follow these steps. - Angle backpack - Fit backpack into notches Fig.

  • Page 53: Using The Backpack

    5.3.2. Using the backpack The flexible strap of the backpack stretches to hold various scanning accessories to crawler. - Press lever down and pull to release Fig. 91 Press the strap’s lever down and then pull to release (Fig. 91-1) (Fig.

  • Page 54: Raster Arm Module

    The raster arm can carry many different probes for various types of corrosion scans, including conventional 0° transducers, phased array probes (e.g. Olympus and more. The SKOOT handheld controller is used to setup all the HydroFORM™) parameters of the scan (see Two Axis Scan Mode on page 25 for additional details).

  • Page 55: Mounting A Raster Arm

    5.4.1. Mounting a Raster Arm - Slide onto one swivel mount Fig. 94 Loosen the two black wing knobs, slide the raster arm’s mounting rail onto the dovetail jaws of the crawler (Fig. 94) - Properly mounted raster arm Fig. 95 Tighten the two black wing knobs to secure the raster arm (Fig.

  • Page 56: Attaching A Cable Tray

    5.4.2. Attaching a Cable Tray - Attaching the cable tray Fig. 96 Attach the cable tray’s magnetic end to the magnetic base on the raster arm. Ensure the four divots are aligned with notches on the magnetic end (Fig. 96) - Press bracket to carriage Fig.

  • Page 57: Using The Cable Tray

    - Slide bracket attaching to carriage Fig. 98 Slide the cable tray bracket until it locks in place (Fig. 98) TIP: The cable tray can be flipped over and reversed to switch which side of the raster arm the cable tray protrudes. 5.4.3.
  • Page 58 - Route cabling and close flaps Fig. 100 Route all hoses and cables into the cable tray. Clip the flaps to trap the cables in the cable tray (Fig. 100) TIP: Cable routing can be made more convenient. Removal of several flaps every few inches can ease the cable routing process.

  • Page 59: Raster Arm Cable Setup

    5.4.4. Raster Arm Cable Setup Plug the supplied raster arm cable into the raster arm’s connec- located on (Fig. 101) the raster arm encoder housing. Pinch the cable into the first cable bracket on the side of the raster arm encoder housing.
  • Page 60 Route the cable through the adjustable clips on the raster arm (Fig. 102) These clips slide along the raster arm allowing the raster arm cable to be positioned as required. - Adjustable cable clips Fig. 102 TIP: Do not tighten or loosen the clip screws. These clip screws have been specially torqued by the manufacturer to allow for friction movement.

  • Page 61: Probe Holder Attachments

    5.5. Probe Holder Attachments 5.5.1. HydroFORM™ Probe Holder Designed to function with the Olympus HydroForm™ scanner . To (not provided) utilize this probe holder, follow these steps: - Attach probe holder - Arm adjustment - Lift and pull latch Fig. 104 Fig.

  • Page 62: Probe Holder Setup

    5.5.2.1 Probe Holder Setup - Mount probe holder to carrier - Vertical adjustment Fig. 108 Fig. 109 Loosen the probe holder adjustment knob and mount the (Fig. 108) heavy duty vertical probe holder’s dovetail jaw to the carrier. The vertical adjustment knob allows the heavy duty (Fig.

  • Page 63: Probe Holder Vertical Adjustment

    - Align probe with yoke - Tighten knobs and screws Fig. 112 Fig. 113 Align the middle of the wedge with the centre of the yoke (Fig. 112). Tighten both the probe holder adjustment knob and the arm clamp screw while ensuring the wedge remains centred with the (Fig.

  • Page 64: Probe Holder Left/Right Conversion

    5.5.2.3 Probe Holder Left/Right Conversion - Remove yoke - Orient to opposite side Fig. 116 Fig. 117 Using the supplied 3 mm driver, unscrew the yoke (Fig. 116). Position the yoke and arms to the opposite side of the probe holder (Fig.

  • Page 65: Probe Holder 90° Adjustment

    Position the pivot buttons to the inside of the probe holder arms (Fig. 120) Place the probe holder arms on the yoke and tighten the arm clamp screw and probe holder adjustment knob (Fig. 121) Screw the yoke to the probe holder (Fig.

  • Page 66: Corrosion Thickness Probe Holder

    5.5.3. Corrosion Thickness Probe Holder Follow these steps when using the corrosion thickness probe holder in con- junction with a raster arm. - Cable clip - Loosen knob - Remove bracket Fig. 124 Fig. 125 Fig. 126 The supplied cable clip is offered as a means of cable manage- (Fig.

  • Page 67: Two Probe Raster Arm

    5.5.4. Two Probe Raster Arm - Raster arm with 2 probe holders Fig. 129 To mount 2 probe holders to the raster arm, follow these steps: NOTE: Do not mount in excess of 2 probe holders to the front of the raster arm. - Remove pivot nose - Install (male) pivot nose Fig.

  • Page 68: Pivoting The Raster Arm

    Mount a frame bar to the pivot nose (Fig. 132) Follow the steps to mount and (see “Probe Holder Setup” on page 71) setup the vertical probe holders (Fig. 133) 5.5.5. Pivoting the Raster Arm - Pivot raster arm - Parallel with scan surface Fig.

  • Page 69: Lowering Probe Holder To Scan Surface

    5.5.7. Lowering Probe Holder to Scan Surface - Remove pivot nose and carriage bracket Fig. 138 Gently lift the probe holder , the pull the probe holder latch (Fig. 138-1) and lower the probe holder gently to the scan surface (Fig.
  • Page 70 Remove the mounting rail from the raster arm. - Remove magnetic base Fig. 140 Remove the magnetic base from the raster arm (Fig. 140) WARNING! MAGNETIC MATERIAL. The magnetic base of the raster arm cable tray contains magnetic material. People with pacemakers or ICD’s must stay at least 10 cm away.
  • Page 71 - Remove screw Fig. 142 Using a 2.5 mm hex tool, remove the socket head cap screw located at the end of the raster arm in the cable clip grove (Fig. 142) - Slide cable clips from the raster arm Fig.
  • Page 72 - Slide cable clips from the raster arm Fig. 144 Rotate the orientation of the raster arm (Fig. 144) - Ensure proper cable management clip orientation Fig. 145 Confirm the cable management clips are in proper orientation (Fig. 145) - Replace cable management clip Fig.
  • Page 73 - Replace socket head cap screw Fig. 147 Replace the socket cap head screw at the end of the raster arm (Fig. 147) - Attach mounting rail Fig. 148 Attach the raster arm’s mounting rail below the cable management clips. Align and tighten all the screws on the mounting rail (Fig.
  • Page 74 - Affix the magnetic base to the raster arm Fig. 149 Align the screw for the cable tray’s magnetic base to the centre of the raster arm. Tighten magnetic base screw (Fig. 149) - Attach the pivot nose to the carriage Fig.

  • Page 75: Raster Arm Cable

    - Attach the pivot nose to the carriage Fig. 151 Attach the carriage bracket to the raster arm carriage (Fig. 151) Program the raster arm orientation using the handheld controller. (see “System Utilities Screen” on page 30) 5.5.9. Raster Arm Cable The raster arm cable connects the raster arm module to the crawler.

  • Page 76: Battery Powered Laser Guide

    - Laser guide Fig. 153 The battery powered laser guide provides a reference point useful for a aligning the SKOOT too a given path . The battery (i.e. a weld) powered laser guide may be installed and setup as follows: Loosen the laser guide knob.

  • Page 77: Power Controller

    5.7. Power Controller - Power controller Fig. 156 The SKOOT power controller converts power from a 100-240 VAC, 50/60Hz, 1.4A power source to 36VDC, 2.65A. A start/stop safety circuit and physical ON and OFF push-buttons are integrated into the supply.
  • Page 78 The encoder cable connects to the ENC socket (Fig. 156-2) ► The status LCD screen displays the power controller system’s status. (Fig. 157-6) ► Connect the umbilical to the umbilical connection located at the rear (Fig. 157-7) ► of power supply. In the event of a break in the stop circuit (the stop circuit runs through the power power will shut off.

  • Page 79: Controller Cable

    5.9. Encoder Cable The encoder cable (Fig. 159) connects the SKOOT system to the user’s instrument. This cable allows transmission of necessary two axis position signals from the SKOOT system to the instrument.

  • Page 80: Vertical Probe Holder

    5.10. Vertical Probe Holder Latch Probe Holder Adjustment Knob Vertical Adjustment Knob Pivot Buttons Probe Holder Arms Yoke Probe Holder Arm Adjustment Knob Transverse Adjustment Screw Frame Bar - Vertical probe holder Fig. 160 5.10.1. Probe Holder Setup - Adjust on frame bar - Vertical adjustment - Place buttons Fig.

  • Page 81: Probe Holder Vertical Adjustment

    To mount a UT wedge in the probe holder, follow these steps: - Adjust inner arm - Adjust outer arm - Tighten arm knob Fig. 164 Fig. 165 Fig. 166 Position the wedge on the inner probe holder arm (Fig. 164) TIP: The probe holder yoke can accommodate many different probe and wedge sizes of varying widths.

  • Page 82: Probe Holder Transverse Adjustment

    holder until the latch is fully exposed and snaps out to lock (Fig. 167). Loosen the vertical adjustment knob and slide the probe holder down until the wedge is approximately 6 mm above inspection surface. (¼ in) Tighten the vertical adjustment knob (Fig.

  • Page 83: Probe Holder Longitudinal Adjustment

    Using the supplied 3 mm hex driver loosen the transverse adjustment screw and rotate the yoke about the vertical shaft achieving the (Fig. 171) desired angle. Tighten the transverse adjustment screw (Fig. 172) To return the transverse adjustment to neutral (90°). The probe holder must be in the latched, upper position Rotate the yoke until the stop post (Fig.

  • Page 84: Probe Holder Left/Right Conversion

    5.10.5. Probe Holder Left/Right Conversion To reverse the probe holder, follow these steps: NOTE: To perform this operation the 1.5 mm hex wrench (Fig. 3) is required. - Unscrew yoke pivot screw - Remove probe holder arms Fig. 177 Fig. 178 Ensure the probe holder is in latched, upper position (Fig.
  • Page 85 - Screw yoke to opposite side - Lower 90° stop post Fig. 181 Fig. 182 Mount the yoke to the opposite side of the base using the supplied 3 mm hex driver (Fig. 181) TIP: Keep the yoke level with the base as to ensure no conflicts with the plunger/set screw attached to the yoke.

  • Page 86: Slip Joint Probe Holder

    5.11. Slip Joint Probe Holder Frame Bar Probe Holder Adjustment Knob Latch Swing Arm Knob Yoke Probe Holder Arm Adjustment Knob Probe Holder Arm Arm Clamp Screw Pivot Buttons - Slip Joint Probe Holder Fig. 185 5.11.1. Probe Holder Setup To mount a UT wedge in the probe holder, follow these steps: - Adjust on frame bar - Attach to frame bar...
  • Page 87 Use swing arm knob to position the swing arm (Fig. 188). TIP: The swing arm is typically used to adjust TOFD center to center distance relative to the phased array probes on a four probe configuration. Using the supplied 3/8 in wrench, place the pivot buttons farthest (Fig.

  • Page 88: Probe Holder Adjustment

    5.11.2. Probe Holder Adjustment To adjust the probe holder, follow these steps: 6mm approx. - Lift to Latched position - Lower to scanning surface Fig. 193 Fig. 194 Ensure probe holder is in latched, upper position . If the probe (Fig.
  • Page 89 To adjust the probe holder’s force, follow these steps: NOTE: Do not perform this operation on scanning surface. - Lift slightly and press Latch - Unlatched position Fig. 197 Fig. 198 Ensure the probe holder is in the upright latched position (Fig.

  • Page 90: Slip Joint Probe Holder Left/Right Conversion

    5.11.4. Slip Joint Probe Holder Left/Right Conversion To reverse the probe holder, follow these steps: - Unscrew yoke pivot screw - Remove arms Fig. 202 Fig. 203 Unscrew the yoke from the swing arm (Fig. 202) Loosen the probe holder arm adjustment knob and arm clamp screw. Slide the arms from the yoke (Fig.
  • Page 91 - Position swing arm - Install yoke to swing arm Fig. 206 Fig. 207 Loosen the swing arm knob and slide the swing arm to the opposite end of the probe holder bracket or preferred position. Tighten swing (Fig. 206) arm knob.

  • Page 92: Low Profile Probe Holder Frame

    - Low profile probe holder frame Fig. 209 The low profile frame adds weld scanning capability to the SKOOT motorized scanner. This frame can utilize (4) slip joint probe holders (2 Phased Array and 2 TOFD, typically). The low profile design of this frame allows for scanning on diameters where radial clearance is limited.
  • Page 93 Affix the probe holders to the low profile probe (with attached wedges) holder frame. On the frame bar, place the secondary probe holders at the front and the primary probe holders at the rear (Fig. 210-2) (Fig. 210-1). TIP: Due to their larger size, scan results are generally improved when pulling or dragging phased array wedges.
  • Page 94 - Align probe holder tangent with scan surface Fig. 213 Loosen the front rotational adjustment knob to align the frame (Fig. 213) bar parallel with the scan surface (Fig. 214) Lower the probe holders to the inspection surface. (see “Probe Holder Adjustment” on page 79) - Low profile probe holder frame Fig.

  • Page 95: Probe Holder Frame

    5.13. Probe Holder Frame The probe holder frame adds weld scanning capability to the SKOOT motorized scanner. This frame uses vertical probe holders. Additional frame components allow up to eight probes to be used (contact Jireh Industries Ltd. on page iii) - Probe holder frame Fig.

  • Page 96: Probe Holder Frame Setup

    5.13.1. Probe Holder Frame Setup Attach the wedges to the probe holders that will be used (see Probe Holder Setup on page 71 for additional details). - Position primary and secondary probe holders Fig. 216 Affix the probe holders to the probe holder frame. (with attached wedges) Place the secondary probe holder at the front of the frame (Fig.
  • Page 97 Release the two swivel mount levers to position the swivel (Fig. 217) mount parallel to the scan surface . When alignment with scan (Fig. 218) surface is achieved, lock the crawler swivel mount levers. - Set rear rotational adjustment knob Fig.
  • Page 98 Loosen the front rotational adjustment knob to align the TOFD (Fig. 219) probe holders parallel with the scan surface (Fig. 220) - Align probes with the scan surface tangent Fig. 220 DN0047 Rev 04.2 PAGE 89...

  • Page 99: Pivoting Probe Holder Frame

    5.14. Pivoting Probe Holder Frame The pivoting probe holder frame utilizes vertical probe holders. The SKOOT can guide as many as 6 probes in the longitudinal direction. NOTE: A minimum OD of 762 mm (30 in) is required for longitudinal scanning.

  • Page 100: Mounting A Pivoting Probe Holder Frame

    5.14.1. Mounting a Pivoting Probe Holder Frame If attached, use the 3 mm hex driver to remove the probe holder pivot mount from the pivoting probe holder frame. Attach the wedges that are to be used with the probe holders (see Probe Holder Setup on page 71 for additional details).

  • Page 101: Pivoting Probe Holder Frame Setup

    5.14.2. Pivoting Probe Holder Frame Setup 5.14.2.1 Longitudinal Scanning To prepare the pivoting probe holder frame for longitudinal scanning, follow these steps: - Loosen pivot wing knobs Fig. 224 NOTE: The swivel mount must be in a horizontal position during longitudinal scanning (see “Swivel Mount”...

  • Page 102: Circumferential Scanning

    Lower the vertical probe holders (see “Probe Holder Vertical Adjustment” on page 72). - Correct probe holder longitudinal adjustment Fig. 226 Ensure probe holder arms are parallel to the scan surface (see “Probe Holder Longitudinal Adjustment” on page 74). 5.14.2.2 Circumferential Scanning (see Probe Holder Frame on page 114 for additional details) DN0047 Rev 04.2 PAGE 93...

  • Page 103: Flange Scanning

    Disassemble the pivoting probe holder frame to achieve the setup shown . Ensure proper placement of the frame bar with (Fig. 227) attached mounting point in relation to the SKOOT. TIP: When the scanning surface is circumferential, only one frame bar with two probes can be used. PAGE 94...
  • Page 104 - Lift frame bar to avoid interference Fig. 228 Loosen the pivot wing knob and raise the frame bar to an angle greater than the surface to be scanned . Tighten the pivot (Fig. 228) wing knob and place crawler on scan surface (see “Placement of Crawler on Inspection Surface”...
  • Page 105 - Align frame bar with flange scan surface Fig. 230 Loosen the pivot wing knob and align the frame bar parallel with the scan surface (Fig. 230) PAGE 96...

  • Page 106: Laser Guide Pivot Mount

    5.14.3. Laser Guide Pivot Mount - Correct probe holder longitudinal adjustment Fig. 231 An optional mounting point for the laser guide (see “Battery Powered Laser is available. To install the pivot mount, see these following Guide” on page 67) instructions: Remove the dovetail bar pivot from one of the sets of frame bars .

  • Page 107: Cable Management

    5.15. Cable Management The zipper tube is offered in a variety of lengths and provides a means of bundling and protecting cables and hoses that connect to the scanner. 5.15.1. Mounting a Zipper Tube To attach a zipper tube for cable management, follow these steps: - Align with umbilical - Tighten wing knob Fig.

  • Page 108: Clamp Setup

    - Zip opposite end - Flexible routing Fig. 236 Fig. 237 Once the cable is placed the entire length of tube, bring the zipper from the opposite end to meet at any point in the middle. When necessary, the two zippers may be opened to allow any cables to be routed out of the tube.

  • Page 109: Pre-Amp Bracket

    5.16. Pre-Amp Bracket The pre-amp bracket mounts to any dovetail groove to hold a pre-amp. Compatible with most standard pre-amps, use the adjustable screw mounting channel on the bottom of the bracket to attach a pre-amp. The pre-amp bracket may also be ordered with Velcro straps which are used to hold the pre-amp.

  • Page 110: Maintenance

    Chapter 6 MAINTENANCE 6.1. Safety Precautions Before Maintenance WARNING! ELECTRICAL SHOCK HAZARD. Disconnect the power controller when servicing the equipment. The power controller is powered even when the E-Stop push-button is latched in the off position. WARNING! MAGNETIC MATERIAL. The wheels of the crawler produce an extremely strong magnetic field which may cause failure or permanent damage to items such as watches, memory devices,...
  • Page 111 The SKOOT system must be maintained according to the following schedule. MAINTENANCE ITEM FREQUENCY Inspect safety apparatus This includes: ● All components of tether system. Replace damaged components as necessary. ● Lifting sling on crawler. If the lifting sling shows signs of Every Use do NOT use.

  • Page 112: Troubleshooting

    Chapter 7 TROUBLESHOOTING 7.1. Startup Issues Two messages are possible in the event of a startup issue: Joystick Off Center or Checking Network. 7.1.1. Joystick Off Center Left Joystick off Center and Will be Disabled. - Joystick off centre screen Fig.

  • Page 113: Startup Override

    During startup, the system initializes the communications to all the devices on the network. If the network communication fails for any reason, the Checking Network message will appear and remain on screen. Likely causes of this failure: No devices connected to the network. A problem with one of the devices.

  • Page 114: Scan Devices

    7.2.1. Scan Devices This utility scans the system network for devices. All possible device address- es and speeds are scanned. As devices are found, the address of the device and speed are displayed. When the scanning is complete, power to the system must be cycled.

  • Page 115: Reset Parameters

    7.2.2. Reset Parameters If the system parameters become corrupt or a change is made that prevents the system from functioning properly. All system parameters may be restored to their factory settings by selecting this option. When pressing the Reset Params button, the changes occur immediately. Power will need to be cycled for the reset to be complete.

  • Page 116: Additional Issues

    Umbilical cable not Check umbilical cable connections at properly connected. both ends. Ensure connectors are dry, clean and connector pins are not bent. SKOOT system not Start the SKOOT system. (see “System started. Startup” on page 17) Damaged components in Contact manufacturer.

  • Page 117: Retrieval Of A Stranded Crawler

    (i.e. a mechanism or person must be continuously taking up the slack in the tether) Should the SKOOT crawler become inoperative while out of reach, attempt first, the solutions offered in this manual (see “Troubleshooting” on page 103) If troubleshooting does not rectify the issue, it may be necessary to retrieve the crawler manually.

  • Page 118: Service And Repair

    In accordance with European Directive on Waste Electrical and Electronic Equipment (WEEE), this symbol indicated that the product must not be disposed of as unsorted municipal waste, but should be collected separately. Refer to Jireh Industries for return and/or collection systems available in your country. DN0047 Rev 04.2...

  • Page 119: Spare Parts

    Chapter 9 SPARE PARTS To order accessories or replacement parts for your SKOOT system. (contact Jireh Industries Ltd. on page iii) NOTE: These drawings are for parts order. This is not a list of kit contents. 9.1. Skoot Crawler BOM ID Part #...

  • Page 120: Skoot Kit Components

    9.2. Skoot Kit Components BOM ID Part # Description UMA022-X Umbilical (various lengths available) EA243 Sling See Zipper Tube Length UMA017-06 Controller Cable SL039 Power Cord - North American SL032 Power Cord - European CES066 Zipper Tube Clamp DNS006 Manipulation Handle...

  • Page 121: Raster Arm Module

    9.3. Raster Arm Module BOM ID Part # Description CWS007 Raster Arm Pivot Nose (female) CWS019 Raster Arm Pivot Nose (male) CWS011 Cable Management Clip MD049-004 Screw, M3x0.5 X 4 See Mounting Rail See Cable Tray UMA020-0.84 Raster Arm Cable - 600 mm raster arm parts Fig.

  • Page 122: Mounting Rail

    9.3.1. Mounting Rail Part # Length CWS008-1160 1160 mm (45 in) CWS008-0900 900 mm (35 in) CWS008-0600 600 mm (24 in) CWS008-0300 300 mm (12 in) - 600 mm raster arm parts Fig. 267 9.3.2. Cable Tray Length Part # 1160 mm (45 in) CWS018-1160 900 mm (35 in)

  • Page 123: Probe Holder Frame

    9.4. Probe Holder Frame BOM ID Part # Description CXS043 Vertical Probe Holder Side Arm, Left CXS072-L Arm Mount Block, Left CX0126 Knob CXS080 Battery Powered Laser Guide BGS068 Perpendicular Dovetail Mount CXS072-R Arm Mount Block, Right CXS042 Vertical Probe Holder Side Arm, Right BG0038-X Frame Bar (see Frame Bar)

  • Page 124: Low Profile Probe Holder Frame

    9.5. Low Profile Probe Holder Frame BOM ID Part # Description CXS023 Low Profile Side Arm CXS072-L Arm Mount Block, Left CX0126 Knob CXS072-R Arm Mount Block, Right CXS080 Battery Powered Laser Guide Perpendicular Dovetail Mount BGS068 BG0038-X Frame Bar (see Frame Bars) CES029 Pre-Amp Bracket* - Low profile probe holder frame parts...

  • Page 125: Pivoting Probe Holder Frame

    9.6. Pivoting Probe Holder Frame BOM ID Part # Description CXS043 Vertical Probe Holder Side Arm , Left CXS072-L Arm Mount Block, Left CX0126 Knob BG0038-X Frame Bar (see Frame Bar) CXS080 Battery Powered Laser Guide CXS064 Probe Holder Pivot Mount BGS068 Perpendicular Dovetail Mount CXS055...

  • Page 126: Slip Joint Probe Holder Parts

    9.7. Slip Joint Probe Holder Parts BOM ID Part # Description PHS022 Slip Joint Probe Holder Subassembly MD050-010 Arm Clamp Screw, SHCS, M4x0.7 X 10 , SST PH0104 Swing Arm Knob PH0100 Swing Arm PH0082 Probe Holder Arm Adjustment Knob See Yoke Style See Arm Style PH0011-X...

  • Page 127: Vertical Probe Holder Parts

    9.8. Vertical Probe Holder Parts BOM ID Part # Description PHS028 Vertical Probe Holder Subassembly PH0082 Probe Holder Arm Adjustment Knob See Arm Style PH0011-X Pivot Button Style ( see Pivot Button Style) See Yoke Style MD050-010 Arm Clamp Screw, SHCS, M4x0.7 X 10 , SST - Vertical probe holder parts Fig.

  • Page 128: Heavy Duty Vertical Probe Holder

    9.9. Heavy Duty Vertical Probe Holder BOM ID Part # Description MD074-020 Arm Clamp Screw, BHCS, Metric SST PHS049 Heavy Duty Probe Holder Subassembly EA154 Probe Holder Arm Adjustment Knob See Heavy Duty Yoke Style PH0165 Probe Holder Arm PH0011-X Pivot Button Style ( see Pivot Button Style) - Heavy duty vertical probe holder parts...

  • Page 129: Corrosion Thickness Probe Holder

    9.10. Corrosion Thickness Probe Holder ⌀ BOM ID Part # Description PH0178 Corrosion Thickness Probe Holder Slider MA264 Screw, M8x12 mm Dog Point Set, SST 5.5x4.3 mm) MD049-012 SHCS, M3x0.5 X 12 mm, SST BG0091 Cable Clip - Corrosion thickness probe holder parts Fig.

  • Page 130: Hydroform™ Probe Holder

    9.11. HydroFORM™ Probe Holder BOM ID Part # Description PH0011-X Pivot Button Style (see Pivot Button Style) MD074-020 Arm Clamp Screw, BHCS, M5x0.8 x 20 mm, SST PH0157 HydroFORM™ Probe Holder Arm EA154 Probe Holder Arm Adjustment Knob - HydroFORM™ probe holder parts Fig.

  • Page 131: Probe Holder Components

    NOTE: Additional probe holder pivot button types available. (1.97 (3.94 BG0038-05 BG0038-10 BG0038-15 (5.91 BG0038-20 (7.87 Part # Length Part # Length (contact Jireh Industries Ltd. on page iii) (9.84 (11.81 BG0038-25 BG0038-30 BG0038-15 (5.91 BG0038-20 (7.87 (1.97 (3.94 BG0038-05 BG0038-10 (9.84...

  • Page 132: Variable Components

    Sonatest - VEO, PRISMA TD - Focus Scan, Handy Scan, Pocket Scan Pragma PAUT 16/128, PragmaLite / Pragma UT400 - Encoder connectors Fig. 266 NOTE: Additional encoder connector types available. (contact Jireh Industries Ltd. on page iii) DN0047 Rev 04.2 PAGE 123...

  • Page 133: Limited Warranty

    THREE (3) YEARS from the original date of purchase. If a defect exists, at its option Jireh will (1) repair the product at no charge, using new or refurbished replacement parts, (2) exchange the product with a product that is new...
  • Page 134 Changes or modifications to this unit or accessories, not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. All specifications are subject to change without notice. © 2016 Jireh Industries Ltd. DN0047 Rev 04.2 PAGE 125...
  • Page 135 Jireh Industries Ltd. 53158 Range Road 224 Ardrossan, Alberta Canada T8E 2k4 780-922-4534 jireh-industries.com...

Table of Contents
