Usb To Rs-485 Converter Installation Method - Fastech Ezi-servo plus-R User Manual

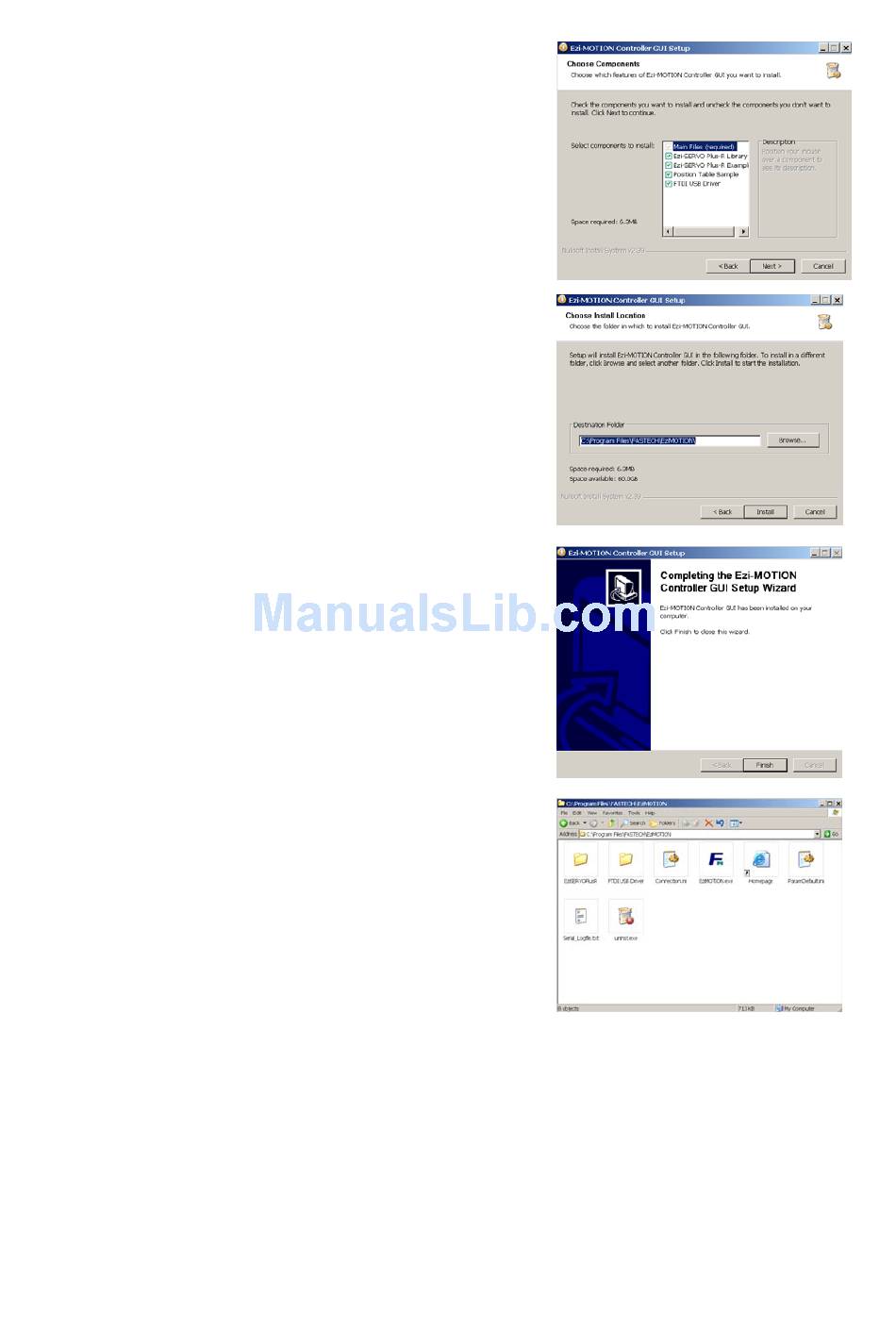

Select all installation components,
and click 'next' button.
Select a folder which the program is installed,
and click 'Install' button.
Installation is finished.
Then installation is finished at the selected folder,
'Program Files/FASTECH/EziMOTION PlusR'
folder is created and also GUI icon and program
folders are installed.
1)Include folder : *dll, *.lib, *.h files
2)Example folder : source code for sample
3)PT_Samples folder : sample data files for position table.
4)FTDI USB Driver folder : driver program for USB converter

1.3 USB to RS-485 Converter Installation Method

In case of using RS-232 to RS-485 converter, there's no need to install for converter.
But when you connecting USB to RS-485 converter to PC, you can see the Installation Start window.
When using USB to RS-485 converter, you need to install driver
program for that.
- 5 -
