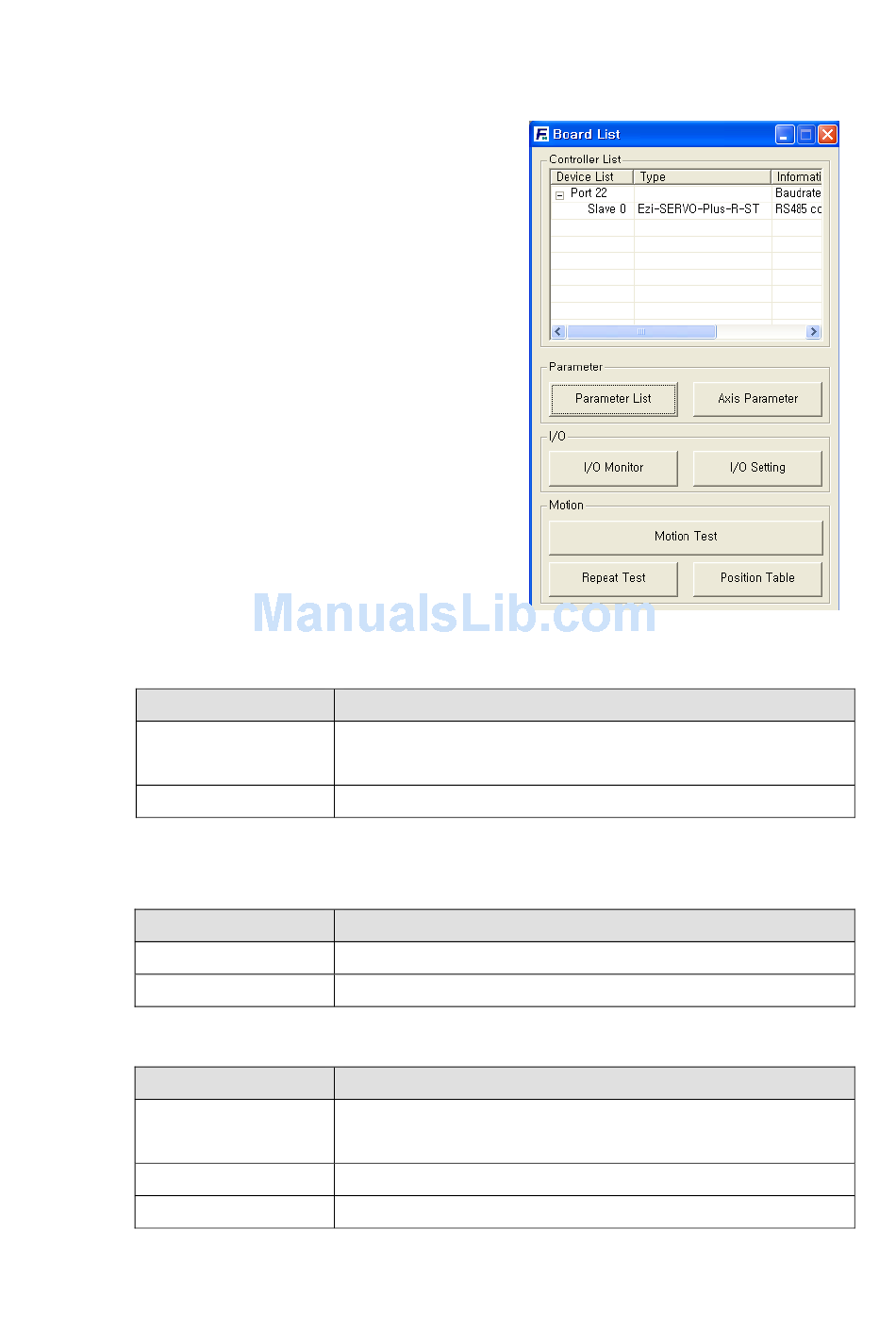

2.4 Board List

To check the drive list connected with communication.
The user can check information of each drive. There
are buttons to go to windows for function setting or
test.

2.4.1 Parameter Area

Button
Parameter List
Axis Parameter

2.4.2 I/O Area

Button
I/O Monitor
I/O Setting

2.4.3 Motion Area

Button
Motion Test
Repeat Test
Position Table
To display the window that the user can check, edit, and manage drive
parameters
To display parameters edited when the machine is set up
To monitor digital I/O signals of CN1 connector
To set digital I/O signal assignment of CN1 connector.
To execute motion commands such as Jog operation, Position
operation, Origin return operation
To test fixed motioning for 1 axis repeatedly
To input and execute position table data
- 10 -
Function
Function
Function
