This manual describes how to operate User Program(GUI) for Ezi-SERVO Pus-R. For more information,
refer related manuals.
(1) User Manual-Text
(2) User Manual-Communication Function
(3) User Manual-Position Table Function

1. Installation and Connection of the Program

Ezi-SERVO Plus-R consists of two operation modes as follows:
1) Using Motion Library(DLL) provided for the program from Windows 2000/XP/VISTA
2) Using position table(PT) and external signals inputted by the user
For the operation modes above, refer to each related manual.
This chapter describes the user program used for installation and test run of the controller.
Ezi-SERVO Plus-R is associated with RS-485. So, the user needs to convert RS-232C or USB
for the PC into RS-485

1.1 Installation Environment of PC

Machine Type :
Compatible with PC/AT
RS－232C Port or USB Port
Hard disk more than 10MB
Screen SVGA(1024×768 or more)
CPU Pentium4 2.0 GHz or more
OS： Windows 2000/XP/VISTA should be normally installed.

1.2 User Program(GUI) Installation Method

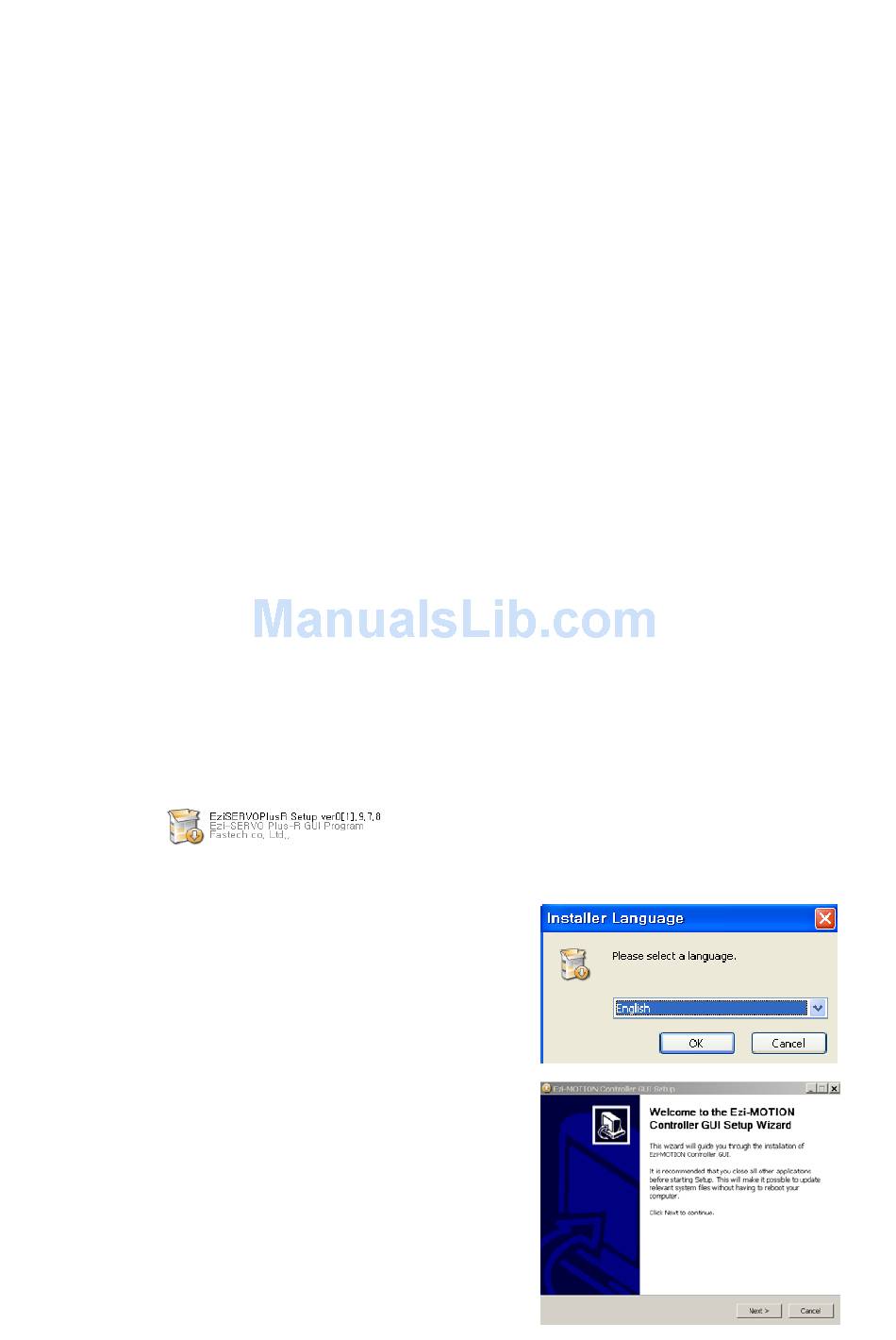

Click
product, and perform as described at the window.
Select a language of installation screen.
Installation Start window.
Click 'Next' button.
icon at the installation program provided with the
- 4 -
