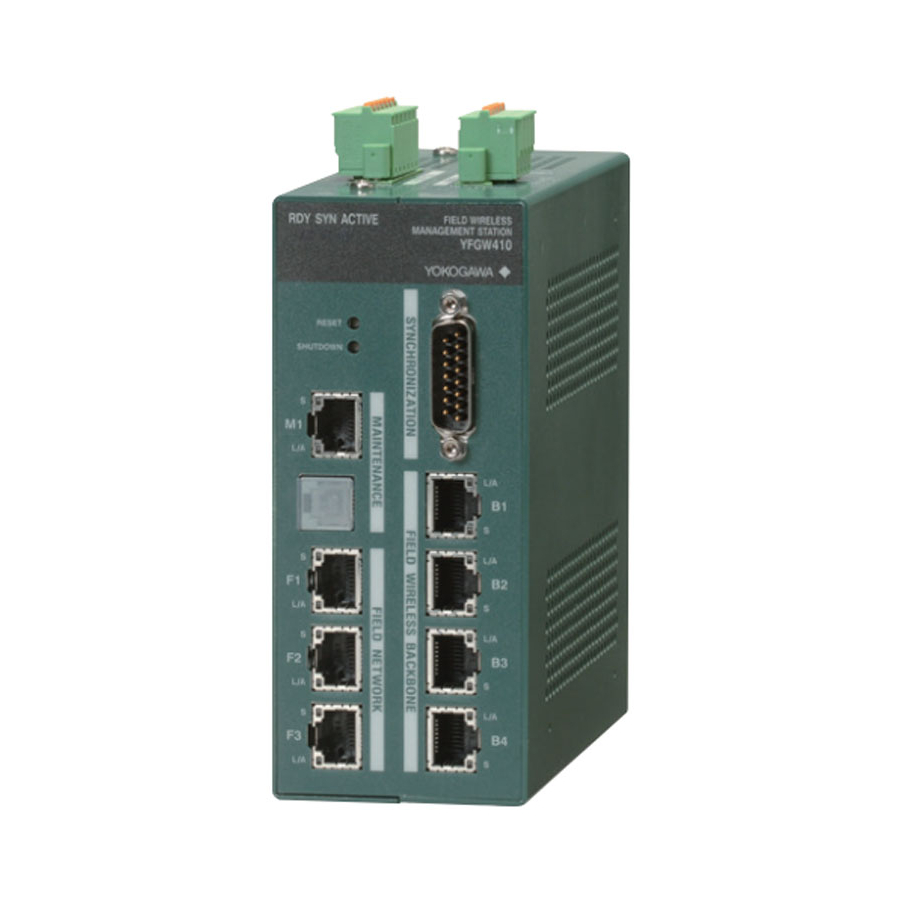

YOKOGAWA YFGW410 User Manual

Field wireless management station

Hide thumbs Also See for YFGW410:

User manual (220 pages)

Startup manual (45 pages)

User manual (67 pages)

Table of Contents

Quick Links

Need help?

Do you have a question about the YFGW410 and is the answer not in the manual?

Questions and answers

Summary of Contents for YOKOGAWA YFGW410

Page 1: Table Of Contents
IM 01W02D01-11EN This document specifies the important information to use this product correctly and safely and the License Agreement of Attached Software for YFGW410 Field Wireless Man- agement Station. Before use the product, be sure to read this document first.
Page 2: Introduction
This manual (IM 01W02D01-11EN) describes the safety precautions, explosion protected type specifications and the license agreement of attached software for the YFGW410. There are three documents including this one for the YFGW410 listed below. Read them along with this manual.
Page 3 <Read Me First> ATEX Documentation This is only applicable to the countries in European Union. IM 01W02D01-11EN...
Page 4: Safety Precautions
If any protection or safety circuit is required for the system controlled by the product or for the product itself, prepares it separately. Be sure to use the spare parts approved by Yokogawa Electric Corporation (hereafter simply referred to as Yokogawa) when replacing parts or consuma- bles.
Page 5 If these instructions are not heeded, the protection pro- vided by this product may be impaired. In this case, Yokogawa cannot guarantee that this product can be safely operated. Please pay special attention to the following points: (a) Installation •...
Page 6 • The following is an explanation about the new EU Battery Directive (DIRECTIVE 2006/66/ EC). This directive is only valid in the EU. • If you dispose of this product within the EU, contact your local Yokogawa Europe B.V. office. Do not dispose of them as domestic household waste.
Page 7 Yokogawa shall have neither liability nor responsibility to any person or entity with respect to any direct or indirect loss or damage arising from using the product or any defect of the product that Yokogawa can not predict in ad- vance.
Page 8 Notes on Attached Software Before opening the media package, read YFGW410 Software License Agree- ment. Once the package is opened, it is thought that the contract is agreed. Yokogawa assumes no responsibilities for this software except as stated in the warranty.
Page 9 To connect the ground cable to the FG terminal, use a ring tongue terminal for M4 with an insulation sleeve. Secure the M4 screws at a tightening torque of 1.2 to 1.5 Nm. For grounding of YFGW410, see “C4.3 Grounding” of the YFGW410 user’s manual (IM01W02D01-01EN). ALSO IM 01W02D01-11EN...
Page 10 铅汞镉六价铬多溴联苯多溴二苯醚（Pb）（Hg）（Cd）（Cr(VI)）（PBB）（PBDE）壳体 × ○ ○ ○ ○ ○ YFGW410 基板组件 × ○ ○ ○ ○ ○ 现场无线管理站电缆 × ○ ○ ○ ○ ○ ○：表示该部件的所有均质材料中的有害物质的含量均在GB/T26572 标准中所规定的限量以下。 ×：表示至少该部件的某些均质材料中的有害物质的含量均在GB/T26572 标准中所规定的限量以上。环保使用期限：...
Page 11: Explosion Protected Type Specifications
The equipment shall be accordingly located in areas of not more than pollution degree 2 (defined in IEC 60664-1) to prevent adverse environmental conditions caused by foreign solid particles, dust and water etc. *3: To be compliant with these standards, the YFGW410 hardware needs to be installed in a lockable metal cabinet of IP54 or higher protection rating.
Page 12 – DO NOT SEPARATE THE CONNECTIONS WHEN ENERGIZED Caution for ATEX Type n declaration (1) Technical Data Note 1. Model YFGW410 Field Wireless Management Station with optional code /KN27 is applicable for use in hazardous area. • Applicable Standards: EN 60079-0:2012+A11:2013, EN 60079-15:2010 •...
Page 13 • The power supply cable of YFGW410 must be wired from a non-hazardous area without applying stress to the end of the cables. • YFGW410 does not have a power switch inside. Prepare a dedicated breaker for the exter- nal power line to turn ON/OFF the device.
Page 14 • Repairs of the equipment shall be carried out only by trained, experienced, skilled, knowledgeable and/or supervised personnel, or by the service engineers recognized by Yokogawa. Otherwise, the type of protection may be invalidated. • Modifications shall not be made to the equipment which are operated in hazardous areas.
Page 15: How To Use Online Manual
<Read Me First> How to Use Online Manual It is necessary to install Adobe Acrobat Reader to read the instruction manual (YFGW410 Field Wireless Management Station: IM 01W02D01-01EN). Install the following Adobe Reader by the administrator authority. • Adobe Reader 9.3 or later Adobe Reader can be downloaded from the Web site of Adobe Systems Incorporated.
Page 16: Copyright And Trademark Notices
Trademark Acknowledgments • CENTUM, PRM, FieldMate, STARDOM and VigilantPlant are either trademarks or regis- tered trademarks of Yokogawa. • Microsoft, Windows, Windows Server, Windows Vista, Visual Basic, VisualC++, VisualC#, VisualStudio Microsoft .NET Framework are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
Page 17: Third Party Software
<Read Me First> Third Party Software This product uses third parties software including open source software that is based on GNU general public license (GPL), etc. Terms and Conditions of GPL For details of GPL, visit the website: http://www.gnu.org/copyleft/gpl.html About Third Party Software License The text of the third parties software license terms is provided to the License_en.txt in attached DVD-ROM.
Page 18: About User's Manual
The following printed user’s manual is attached to YFGW410 hardware. • IM 01W02D01-11EN: YFGW410 Field Wireless Management Station Read Me First The following online user’s manual is stored in the attached DVD-ROM for YFGW410. • IM 01W02D01-01EN: YFGW410 Field Wireless Management Station Information of User’s Manual Revision...
Page 19: Yfgw410 Software License Agreement
Yokogawa or licensors to Yokogawa. Ownership of and all the rights in the Software Product shall be retained by Yokogawa or the licensors and none of the rights will be transferred to you hereunder.
Page 20 Software Product is installed. 4.4 The above warranties shall not be applied to and Yokogawa shall not be liable for the defect or noncompliance which is subject to any of the following circumstances: a) the hardware on which the Software Product is installed has ceased to be covered by the warranty or maintenance contract of the hardware supplier;...
Page 21 Yokogawa out of court. The foregoing obligation and indemnity of Yokogawa shall be subject to that i) you promptly notify Yokogawa of the Claim in writing as provided above, ii) you grant to Yokogawa and its designees the full authority to control the defense and settlement of such Claim and iii) you give every and all necessary information and assistance to Yokogawa upon Yokogawa's request.
Page 22 10. Audit; Withholding 10.1 Yokogawa shall have the right to access and audit your facilities and any of your records, including data stored on computers, in relation to the use of the Software Product as may be reasonably necessary in Yokogawa's opinion to verify that the requirements of this Agree- ment are being met.
