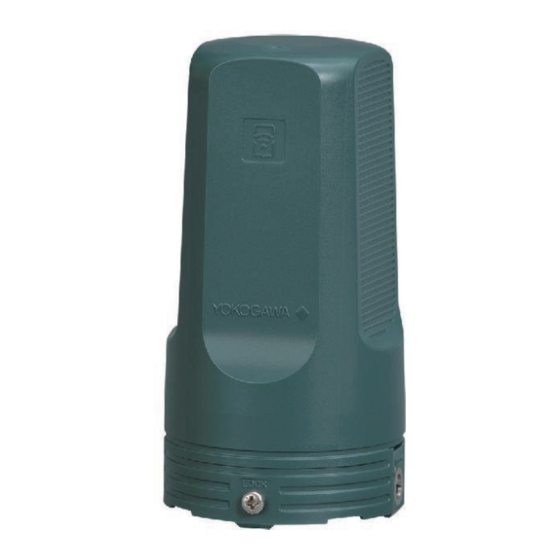

YOKOGAWA XS110A User Manual

Sushi sensor wireless communication module
Hide thumbs Also See for XS110A:
Table of Contents

Advertisement

Quick Links

Download this manual
User's
Manual
XS110A
Wireless Communication Module
IM01W06D01-01EN
IM01W06D01-01EN
1st Edition

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XS110A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for YOKOGAWA XS110A

Summary of Contents for YOKOGAWA XS110A

  • Page 1 User’s Manual XS110A Wireless Communication Module IM01W06D01-01EN IM01W06D01-01EN 1st Edition...

  • Page 2: Table Of Contents

    ................7-2 7.1 STANDARD SPECIFICATIONS ................7-2 ..................7-5 7.3 MODEL AND SUFFIX CODES ................7-6 7.4 OPTIONAL ACCESSORIES ................7-6 7.5 Outline ........................7-7 7.6 Regulatory Compliance Statements ..............7-8 Revision Information ..................i 1st Edition: July 2020 All Rights Reserved, Copyright © 2020, Yokogawa Electric Corporation...

  • Page 3: Introduction

    (Hereinafter, it is described as XS110A.) correctly and safely. The XS110A can be connected to an XS-series Measurement Module. The battery mounted on the XS110A supplies power to the connected Measurement Module. The function description, setting, operation, and maintenance of the XS-series are described in the Sushi Sensor Series Software Edition (IM01W06C01- 01EN), so be sure to read it and use it correctly.
  • Page 4 Regarding This Manual are essential parts of the product; keep them in a safe place for future reference. without Yokogawa’s written permission. for a particular purpose. optional codes contain code “Z” and an exclusive document is attached, please read it along with this manual.
  • Page 5 <Introduction> WARNING CAUTION against unsafe practices. IMPORTANT Indicates that operating the hardware or software in this manner may damage it or lead to system failure. NOTE Draws attention to information essential for understanding the operation and features. Trademarks the text do not bear the mark of TM or ®. IM 01W06D01-01EN...

  • Page 6: Radio Waves

    <Introduction> Radio Waves system of the Radio Act. Refer to “7.6 Regulatory Compliance Statements” for detail. Detail of the restrictions, refer to EC Decision 2006/771/EC (as amended). IMPORTANT product. stations are not being used in the vicinity before using this product. the emission of radio waves immediately.

  • Page 7: Warranty

    Problems occurring during the warranty period shall basically be repaired free of change. contact the Yokogawa representative from which this product was the problem and the circumstances under which it developed, including information you can include in your communication will also be helpful.

  • Page 8: Notes On Handling

    Verify that the F01.ai Transport To prevent damage while in transit, leave the XS110A in the original shipping container until it reaches the installation site. Storage When an extended storage period is expected, observe the following precautions.

  • Page 9: Selecting The Installation Location

    <Notes on Handling> NOTE When storing this product over a long period, it is recommended to put the instrument in OFF Mode to conserve the battery. This product is shipped in OFF Mode from the factory. For details on how to switch to OFF Mode, refer to “IM 01W06C01-01EN”.

  • Page 10: Restrictions On Use Of Radio Transceivers

    Thereafter use the transceiver outside the range where the noise Explosion Protected Instrument 2.6.1 ATEX WARNING Control drawing: Hazardous Location Connector Uo: 6.88 V Io: 1.54 A Po: 0.3 W Co: 10 μF Lo: 3 μH XS110A IS Apparatus Wireless communication module F02.ai non-metallic parts. IM 01W06D01-01EN...
  • Page 11 <Notes on Handling> WARNING INSTRUCTIONS Installation: Operation: WARNING which generate electrostatic charges, such as rubbing with a dry cloth. the Android device must comply with the following. (r.m.s.)] or less (Compliant with ISO / IEC 14443). If additional information and approvals for Android device are IM 01W06D01-01EN...
  • Page 12 <Notes on Handling> Maintenance and repair: WARNING Replacing the Battery: WARNING Be sure to replace the battery in a safe location. Doing so in an explosive area could cause an explosion. Use the following batteries. 2.6.2 IECEx WARNING IM 01W06D01-01EN...
  • Page 13 <Notes on Handling> Control drawing: Hazardous Location Connector Uo: 6.88 V Io: 1.54 A Po: 0.3 W Co: 10 μF Lo: 3 μH XS110A IS Apparatus Wireless communication module F03.ai non-metallic parts. WARNING INSTRUCTIONS Installation: IM 01W06D01-01EN...
  • Page 14 <Notes on Handling> Operation: WARNING which generate electrostatic charges, such as rubbing with a dry cloth. protected instrument, the Android device must comply with the following. (r.m.s.)] or less (Compliant with ISO / IEC 14443). If additional information and approvals for Android device are Maintenance and repair: WARNING Replacing the Battery:...

  • Page 15: Component Names

    <Component Names> 3. Component Names Strap hole interface Case Measurement Nameplate Module mounting screw Main body Front Back Cables Battery holder Battery holder fixing screw Main Body F04.ai IM 01W06D01-01EN...

  • Page 16: Installation

    4. Installation The XS110A does not include batteries when shipped from the factory. Install the battery to the XS110A according to the procedure in Section 6.1. After installing the battery, mount the Measurement Module on the XS110A. Refer to the User’s Manual of the Measurement Module connected to the XS110A for installation precautions.

  • Page 17: Operation

    <Operation> 5. Operation To perform the setting and status check of the product, use an Android device with the NFC interface. Download Sushi Sensor App from Google Play. Sushi Sensor App provides the following functions. For details, refer to “IM 01W06C01-01EN”. IM 01W06D01-01EN...

  • Page 18: Maintenance

    6. Maintenance Replacing the Battery The XS110A can be replaced with a new battery. The XS110A does not include batteries when shipped from the factory. Install the battery in the XS110A according to the procedure in this section. If the XS110A is installed on the Measurement Module, remove the XS110A according to the user manual of the Measurement Module.
  • Page 19 Follow the procedure below to replace the battery. 1. Loosen the case retaining screw (2 places) on the underside of the XS110A. by holding it in the groove between the case and the body and pushing it upward.
  • Page 20 <Maintenance> case fixing screw F05.ai F06.ai Figure 6-1 Bottom of XS110A Figure 6-2 Removing the case and body F07.ai Figure 6-3 How to insert the battery IM 01W06D01-01EN...

  • Page 21: Handling The Battery

    <Maintenance> Handling the Battery This product uses one lithium thionyl chloride primary battery. A single battery contains approximately 5 grams of lithium. Under normal conditions, the battery materials are self-contained and are not reactive as long as the battery integrity is maintained. Care should be taken to prevent thermal, electrical or mechanical damage.
  • Page 22 Batteries Alternatively, following batteries may be purchased and used. Transportation of products containing a lithium battery: This product contains a lithium battery. When transporting this product with the battery installed, set this product to OFF mode to prevent the battery from draining.

  • Page 23: Standard Specifications

    Update Time: depending on the country. 1 minute to 3 days Frequency: Battery characteristics: Measurement Module connected to XS110A Battery life varies depending on the battery level. Refer to the General be used throughout, Europe, although there are some Measurement Module.
  • Page 24 Diagnostics Function: REGULATORY Battery alarm, internal COMPLIANCE temperature, wireless STATEMENTS communication failures, memory failures, Measurement Module standards. connection failure Software Download Features: Allows the user to update the an applicable standard. software of the sensor via the If additional regulatory NFC interface.
  • Page 25 Ex marking: II 2 G Ex ib IIC IECEx Intrinsically Safe Approval: T4 Gb Ambient temperature: -40 to Application Standard: ambient temperature range to XS110A. Ex ic IIB T4 Gc Electrical parameters: Ambient temperature: Connector Uo = 6.88 V, Io = 1.54 A,...
  • Page 26 (r.m.s.) or less (Compliant with Android 5.1.1 or higher ISO / IEC 14443). Snapdragon 800 or better Resolution 1280 x 720 dots or more Readers, Writer Optional Yokogawa Electric Corporation can be used. approvals for Android devices Yokogawa representative. IM 01W06D01-01EN...

  • Page 27: Model And Suffix Codes

    MODEL AND SUFFIX CODES Model Description XS110A Wireless Communication Module Inter-module XS-series dedicated digital Communication communication Europe EU868 Area Code Type Always A Housing material Plastic (PC) Power source Battery powered Always A OPTIONAL ACCESSORIES Item Parts Number Description batteries can be purchased from your local distributor.

  • Page 28: Outline

    Outline Main body Units: mm (Approx. inch) NFC Interface Measurement Module mounting screw ø68 (2.68) Measurement Module connector Case fixing screw F08.ai IM 01W06D01-01EN...

  • Page 29: Regulatory Compliance Statements

    Regulatory Compliance Statements Yokogawa representative. Telecommunication Compliance: RE Directive (EU Countries) XS110A complies with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://partner.yokogawa.com/global/ FCC compliance (United States) FCC ID: SGJ-WFC017...
  • Page 30 NOTE Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this expense.
  • Page 31 20 cm or more away from person’s body. French: énoncées pour un environnement non contrôlé et respecte les règles plus entre le radiateur et le corps humain. CE Conformity: Yokogawa Europe B.V. Euroweg 2, 3825 HD Amersfoort, THE NETHERLANDS. RoHS Directive: EN50581 IM 01W06D01-01EN...
  • Page 32 7-11 RE Directive: (1) Pollution Degree 2 gas which deteriorates dielectric strength or surface resistivity is adhering. “2” applies to normal indoor atmosphere. Normally, only non-conductive pollution occurs.Occasionally, however, temporary conductivity caused by condensation must be expected. (2) Installation Category I “Overvoltage category (Installation category)”...
  • Page 33 The following marking indicates that you must not discard this electrical/ electronic product in domestic household waste. Product Category Do not dispose of this product in domestic household waste. When disposing of products in the EU, contact your local Yokogawa Europe B. IM 01W06D01-01EN...

  • Page 34: Revision Information

    Revision Information Title: XS110A Wireless Communication Module Reference Number: IM 01W06D01-01EN Edition Date Page Revision Item July 2020 New publication IM 01W06D01-01EN...
  • Page 35 3F Tower D Cartelo Crocodile Building, No.568 West Tianshan Road, Shanghai 200335, CHINA Phone : 86-21-62396262 Fax : 86-21-62387866 YOKOGAWA ELECTRIC KOREA CO., LTD. (Yokogawa B/D, Yangpyeong-dong 4-Ga), 21, Seonyu-ro 45-gil, Yeongdeungpo-gu, Seoul, 07209, KOREA Phone : 82-2-2628-6000 Fax : 82-2-2628-6400 YOKOGAWA ENGINEERING ASIA PTE. LTD.
