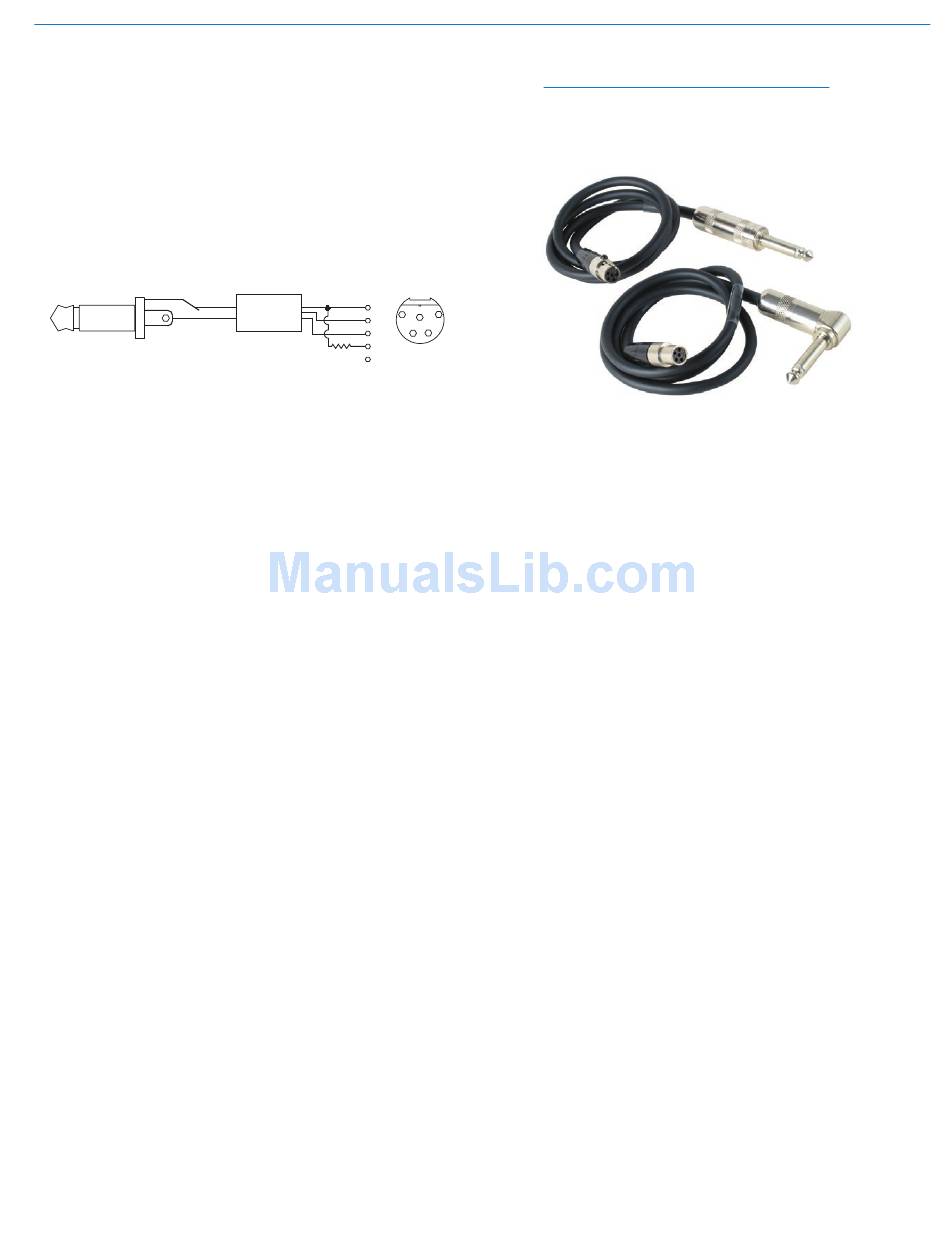

Wiring Diagram for MI33A Instrument Cable

The MI33ARA and MI33AST instrument cable assem-
blies allow an optimum match between musical instru-
ment pickups and Lectrosonics transmitters with 5-pin
input connectors.
The active preamp and low noise wire cable provide a
"same as wire" experience in a wireless environment.
The 30 inch long cable offers enough cable to com-
fortably link the instrument to the wireless transmitter
without being excessive.
SLEEVE
SHIELD
AUDIO
TIP
1/4 " PLUG
Rio Rancho, NM
PIN
SHIELD
1
Preamp
PWR
2
4
5
AUDIO
3 3
4
TA5F
3 k
5
PLUG
Frequency-Agile UHF Belt-Pack Transmitter
Note: This cable is prewired and cannot be
field modified. The cable is available in two
configurations, MI33ARA (right angle) and
MI33AST (straight).
