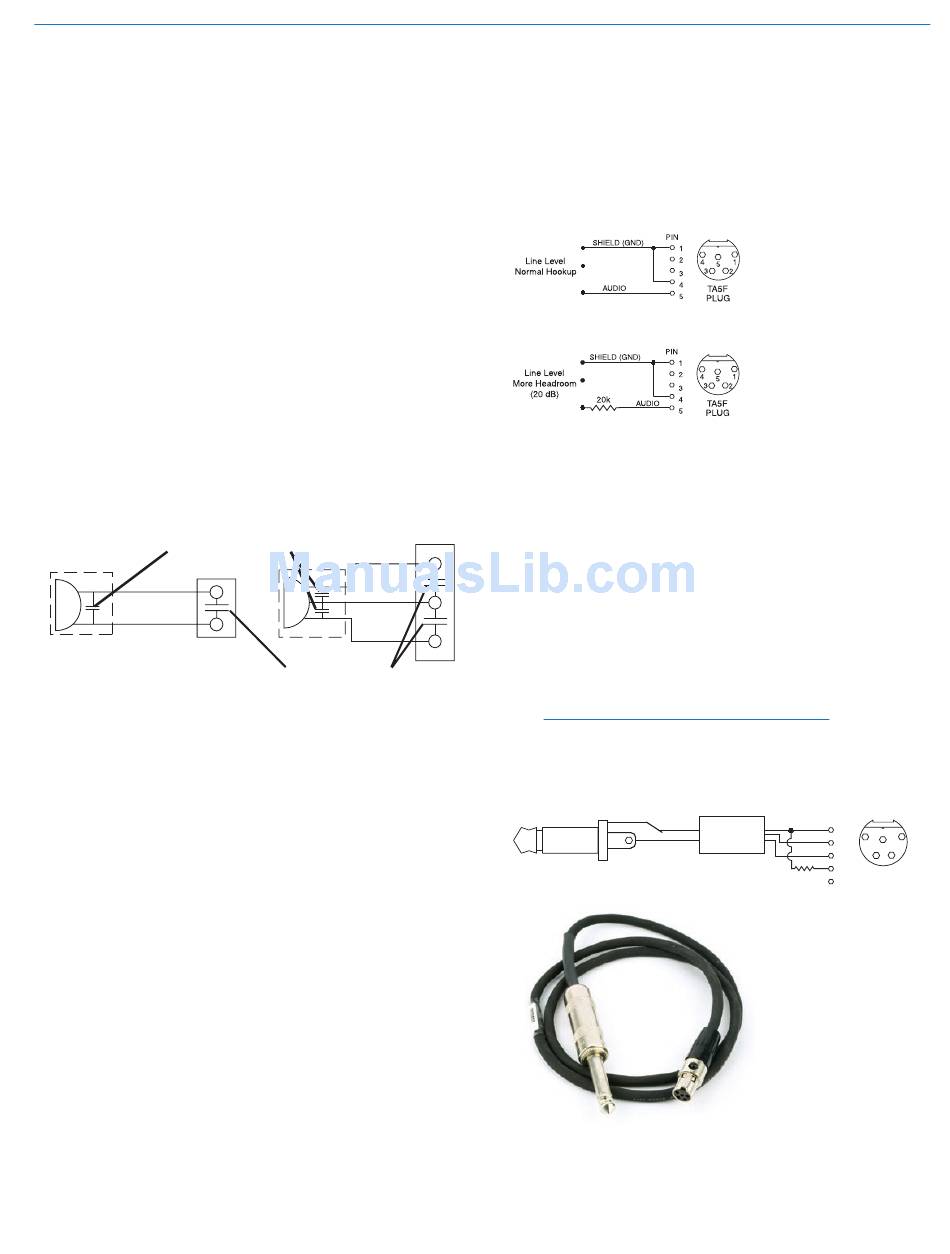

Microphone RF Bypassing

When used on a wireless transmitter, the microphone
element is in the proximity of the RF coming from the
transmitter. The nature of electret microphones makes
them sensitive to RF, which can cause problems with
the microphone/transmitter compatibility. If the electret
microphone is not designed properly for use with wire-
less transmitters, it may be necessary to install a chip
capacitor in the mic capsule or connector to block the
RF from entering the electret capsule.
Some mics require RF protection to keep the radio
signal from affecting the capsule, even though the
transmitter input circuitry is already RF bypassed (see
schematic diagram).
If the mic is wired as directed, and you are having dif-
ficulty with squealing, high noise, or poor frequency
response, RF is likely to be the cause.
The best RF protection is accomplished by installing RF
bypass capacitors at the mic capsule. If this is not pos-
sible, or if you are still having problems, capacitors can
be installed on the mic pins inside the TA5F connector
housing.
2 WIRE MIC
Preferred locations for bypass capacitors
SHIELD
AUDIO
CAPSULE
TA5F
CONNECTOR
Install the capacitors as follows: Use 330 pF capaci-
tors. Capacitors are available from Lectrosonics. Please
specify the part number for the desired lead style.
Leaded capacitors: P/N 15117
Leadless capacitors: P/N SCC330P
All Lectrosonics lavaliere mics are already bypassed
and do not need any additional capacitors installed for
proper operation.
Rio Rancho, NM
3 WIRE MIC
SHIELD
AUDIO
BIAS
CAPSULE
Alternate locations for bypass capacitors
Frequency-Agile UHF Belt-Pack Transmitter

Line Level Signals

The normal hookup for line level signals is: Signal Hot
to pin 5, Signal Gnd to pin 1 and pin 4 jumped to pin 1.
This allows signal levels up to 3V RMS to be applied
without limiting.
If more headroom is needed, insert a 20 k resistor in
series with pin 5. Put this resistor inside the TA5F con-
nector to minimize noise pickup.

Wiring Diagram for MI33A Instrument Cable

The MI33ARA and MI33AST instrument cable assem-
blies allow an optimum match between musical instru-
ment pickups and Lectrosonics transmitters with 5-pin
input connectors. The low frequency roll-off in the LMa
will be set to 35 Hz automatically when these cables
are connected.
The active preamp and low noise wire cable provide a
"same as wire" experience in a wireless environment.
The 30 inch long cable offers enough cable to com-
TA5F
fortably link the instrument to the wireless transmitter
CONNECTOR
without being excessive.
Note: This cable is prewired and cannot be
field modified. The cable is available in two
configurations, MI33ARA (right angle) and
MI33AST (straight).
1/4 " PLUG
SLEEVE
SHIELD
Preamp
AUDIO
TIP
PIN
SHIELD
1
PWR
2
4 1
5
AUDIO
2
3
3
4
TA5F
3 k
5
PLUG
