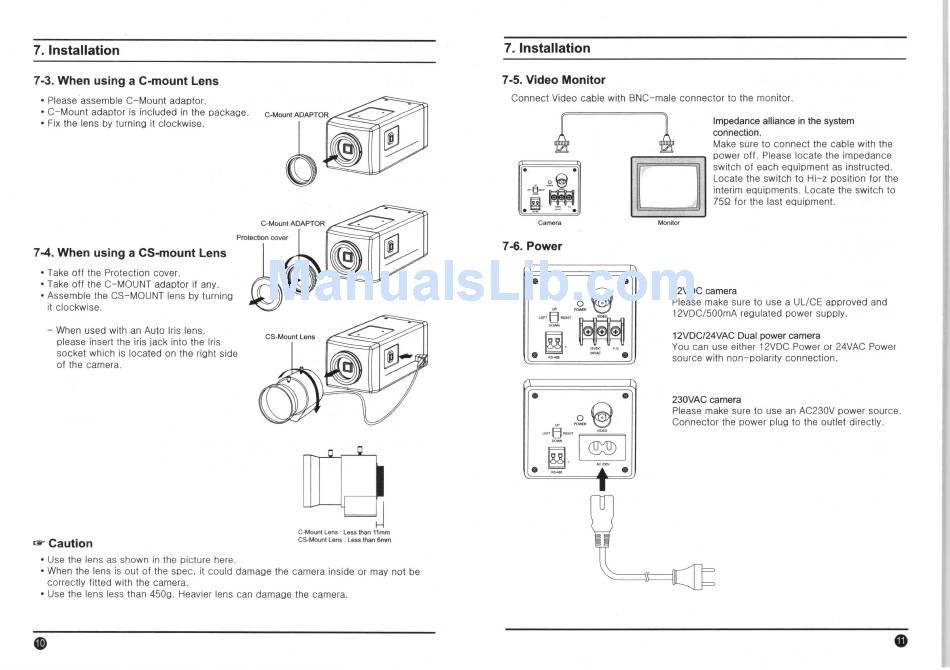

7. Installation
7-3. When using a C-mount Lens
• Please 'assemble C-Mount adaptor.
• C- Mount adaptor is included in the package.
• Fix the lens by turning it clockwise.
C-MOU"tAOAPTO~
W
7-4. When using a CS-mount Lens
p m t b e c t i : ~ : ~ ~ " :~"O" ~
• Take off the Protection cover.
~
• Take off the C-MOUNT adaptor if any .
• Assemble the CS- MOUNT lens by turning
it clockwise.
- When used with an Auto Iris lens.
please insert the iris jack into the Iris
socket which is located on the right side
of the camera.
~ Caution
• Use the lens as shown in the picture here.
C-Mount Lens : Less than 11mm
CS-Mount Leos : Less than 6mm
• When the lens is out of the spec . it could damage the camera inside or may not be
correctly fitted with the camera.
• Use the lens less than 450g. Heavier lens can damage the camera.
7. Installation
7-5. Video Monitor
Connect Video cable with BNC-male connector to the monitor.
Camera
7-6. Power
• •
• •
Impedance alliance in the system
connection.
Make sure to connect the cable with the
power off. Please locate the impedance
switch of each equipment as instructed.
Locate the switch to Hi-z position for the
interim equipments. Locate the switch to
75Q for the last equipment.
12VDC camera
Please make sure to use a UL/ CE approved and
12VDC/ 500mA regulated power supply.
12VDC/24VAC Dual power camera
You can use either 12VDC Power or 24VAC Power
source wi th non-polarity connection.
230VAC camera
Please make sure to use an AC230V power source .
Connector the power plug to the outlet directly .
