3.5.12 VPN

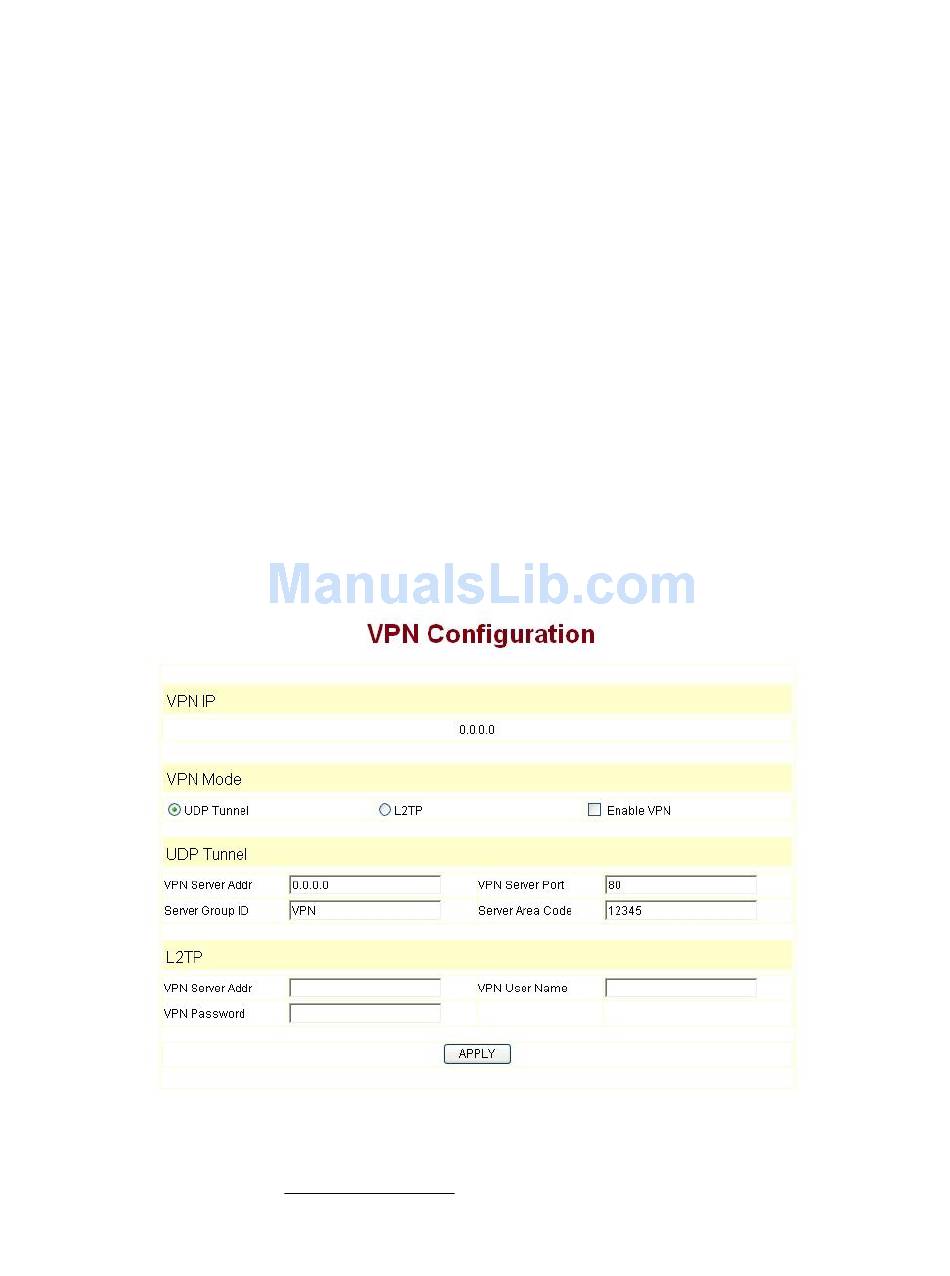

This page is VPN setting page, the IP phone support the VPN with UDP and L2TP
protocol .The parameters is as below:
VPN IP： After VPN registered successfully, VPN server will give an IP aggress
to the terminal. If there is a IP address shown on terminal (except for 0.0.0.0),
it means your VPN has registered
UDP Tunnel
VPN Server Addr: register to the address of VPN server
VPN Server Port: Register to the port of VPN server
Server Group ID: the group ID of UDP VPN
Server Area Code: the area code of VPN server
VPN Server Addr: register to the address of VPN server
VPN User Name: L2TP VPN username
VPN Password: L2TP VPN password
UDPTunnel: use the UDP to visit VPN
L2TP: use the L2TP to visit VPN
Enable VPN: Enable the VPN server, you must choose UDP or L2TP type in
advance
Notice: At the present, L2TP only support L2TP VPN server under Linux, UDP
only support a private UDP VPN server.

3.6 Dial-Peer dial rule setting

Please refer to How to use dial rule for detail.
29
