Page 1: User Manual

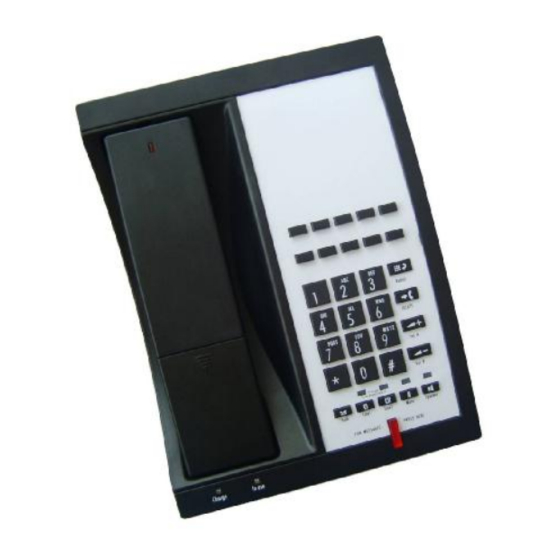

9600IP PHONE USER MANUAL FOR MODEL: SIP 9600IP, SIP 9602IP Version：v1.0... -
Page 2: Table Of Contents
CONTENTS 1. INTRODUCTION..................5 1.1 O ................. 5 VERVIEW OF ARDWARE 1.2 O ................5 VERVIEW OF OFTWARE 2. 9600IP PHONE KEYBOARD ..............7 2.1 K ................7 EYBOARDS FUNCTIONS 2.1.1 Function Table of Base Keyboard ............. 7 2.1.2 Function table of handset keyboard ..........7 2.2 K ................ - Page 3 3.5.8 Call Service Settings..............26 3.5.9 Memory Key ................27 3.5.10 MMI Filter................. 28 3.5.11 DSP ..................28 3.5.12 VPN ..................29 3.6 D ..............29 EER DIAL RULE SETTING 3.7 C .................. 30 ONFIG ANAGE 3.8 U ................31 PDATE IRMWARE 3.8.1 Update ..................
- Page 4 Function 1. Provide a Backup SIP Server 2. Support NAT, Firewall 3. Support DHCP assigning IP address, etc automatically 4. Support PPPoE (used while connecting ADSL，cable modem) 5. It can update the program through HTTP, FTP and TFTP 6. Check the dynamic voice; Soft the noise; Buffer technique of voice 7.
-
Page 5: Introduction
1. Introduction This is the user manual of 9600IP. Some configuration should be done before use the 9600IP phone, and then it can work normally. This manual will illustrate how to set the phone through keyboard and web service. 1.1 Overview of Hardware 1.1.1 The two RJ-45 network interface support the 10/100M Ethernet. - Page 6 Call Forward Web Browser Caller ID Console/Telnet 3-way conference Keypad DTMF Firmware Upgrade DTMF RELAY TFTP DTMF RFC 2833 HTTP DTMF SIP Info SIP Server Provide a Backup SIP Server...
-
Page 7: 00Ip Phone Keyboard
2. 9600IP phone keyboard 2.1 Keyboards functions 2.1.1 Function Table of Base Keyboard Name Status Function Store On-hook To enter storage mode for speed dialing Flash On-hook To enter the deleting mode for pressing down 3 seconds Redial Dialing Re-dial the last called number On-hook It’s calling handset for press down for a little time and Locate... -
Page 8: Voice Control
Redial Dialing Redial the number of last time Volume + Call Increase the volume Volume - Call Reduce the volume Flash Off-Hook Quickly cut off the current line and off-hook again. Dialing “1” On-Hook Long pressing can pick up the message Dialing “2”... -
Page 9: Register Handset
to hold the #1 handset then pick up the #2 handset. 2.2.4 Register handset Under On-Hook status, pressing the “Locate” key on the base unit for three seconds to enable the handset register mode, and the Charge indicator light flashes at the same time ;then press “*”key for three seconds to enable the handset register mode, then ON/OFF indicator light on the handset ,and will give the prompt tone for successful registration. -
Page 10: Line Switch
make 3-way conference call. 2.2.8 Line Switch 2.2.8.1 Handset Line Switch 1）Suppose the line1/2 of handset is talking, the line2/1 is holding, if you want to implement line switch, first you need to press down “Hold ”, then press down “ON/OFF”... -
Page 11: Call Feature
2.3.3 Call Feature 23.3.1 Phone-number 1) Public SIP 2) Private SIP 2.3.3.2 Limit-List Current 2.3.3.3 Black-List Current 2.3.3.4 Fast Call 2.3.3.5 Three Talk 2.3.3.6 Call-Transfer 2.3.3.7 Call-Waiting 2.3.3.8 Call-Forward 1) Condition 2) SIP ◆Transfer Num ◆Transfer IP ◆Port 2.3.3.9 Dial-Rule 1) End with “#”... -
Page 12: Dsp
2.3.4.6 Dtmf-mode 2.3.4.7 Interval-time 2.3.4.8 Swap-server 2.3.4.9 RFC-version 2.3.4.10 Signal-Port 2.3.4.11 Stun 1) Switch 2) Addr 3) Port 4) Expire Time 2.3.5 DSP 2.3.5.1 Codec 2.3.5.2 Handdown-time 2.3.5.3 Dtfm-Volume 2.3.5.4 Input-Volume 2.3.5.5 Output-Volume 2.3.6 System 2.3.6.1 Save 2.3.6.2 Reboot 2.3.6.3 Set Default 2.3.7 Other Setting 2.3.7.1 Syslog 1) Switch... -
Page 13: Through Web Browser To Set Phone
3 Through web browser to set phone Plug one end of the network line to the network card port of the computer, the other end to Lan port of the phone, phone will obtain the IP address automatically, open IE, input the IP address on Address column, then enter into the Web Setting Page. - Page 14 Configure Static IP: ----Enable Static; ----Set 9600IP’s IP address in the IP Address; ----Set netmask in the Netmask field; ----Set router IP address in the Gateway; ----DNS Domain: ----Set local DNS server in the Preferred DNS and the Alternate DNS。 Configure to dynamic obtain IP ----Enable DHCP;...
-
Page 15: Lan Config
----PPPoE server: Enter “ANY” if no specified from your ITSP. ----Enter PPPoE username and password in the username and password. 9600IP will automatically obtain WAN port network information from your ITSP if PPPoE setting and the setup are correct. Notice: If user accesses the IP phone through WAN port. He/She should use the new IP address to access the IP phone when the WAN port address was changed. - Page 16 Register Server Addr: Register address of public SIP server; Register Server Port: Register port of public SIP server， default port is 5060; Register Username: Username of your SIP account (Always the same as the phone number); Register Password: Password of your SIP account. Proxy Server Addr: IP address of proxy SIP server (SIP provider always use the same IP for register server and proxy server, in this case you don’t need to configure the proxy server information.);...
- Page 17 Register Expire Time: Register expires time, default is 60 seconds. 9600IP will auto configure this expire time to the server recommended setting if it is different from the SIP server. NAT Keep Alive Interval：NAT keep alive interval time, the default is 60 seconds;...
-
Page 18: Iax2 Config
Signal Encode:Open signal encrypt; Rtp Encode: Open voice encrypt; Enable Via rport:Whether support the RFC3581 or not. Enable Via rport is used in inside network,and needs SIP server support. To maintain network equipment with net device outside of NAT connection. Enable Session Timer:Whether support the RFC4028 or not .At a certain period of time to refresh conversation ,in case a long time ,the other side drop off or break off,after refresh ,the other side did not respond ,we will hang up. - Page 19 IAX Server Addr: Register address of public IAX server； IAX Server Port: Register port of public IAX server，default port is 4569； Account Name: Username of your SIP account (Always the same as the phone number)； Account Password: Password of your IAX account. Local port: Signal port of local, default port is 4569；...
-
Page 20: Advance
3.5 Advance 3.5.1 DHCP Server DHCP server manage page. User may trace and modify DHCP server information in this page. DHCP Lease Table：display the IP－MAC corresponding table that the server distributed. Lease Table Name: Lease table name. Start IP: Start IP of lease table. End IP: End IP of lease table. -
Page 21: Nat
3.5.2 NAT Advance NAT setting. Maximum 10 items for TCP and UDP port mapping. DHCP Lease Table：Show IP—MAC corresponding table assigned by DHCP server. IPSec ALG: Enable/Disable IPSec ALG; FTP ALG: Enable/Disable FTP ALG; PPTP ALG: Enable/Disable PPTP ALG; Transfer Type: Transfer type using port mapping. Inside IP: LAN device IP for port mapping. -
Page 22: Stun
3.5.3 STUN This page is used to set the private sip server, stun server, and back up sip server information. STUN Server setting: SIP STUN is used to realize SIP penetrates through NAT, when the phone configures IP and port of STUN server (default is 3478) and select Enable SIP Stun, common SIP server can be used to realize the phone to penetrate through NAT. -
Page 23: Firewall Settings
3.5.5 Firewall settings Firewall settings page. User may set up firewall to prevent unauthorized Internet users from accessing private networks connected to the Internet (input rule), or prevent unauthorized private network devices to access the internet. Access list support two type limits: input_access limit or output_access limit. Each type supports 10 items maximum. -
Page 24: Vlan Configuration
3.5.6 VLAN Configuration 9600IP phone implement QoS based on 802.1p, The QoS is used to mark the network communication priority in the data link/MAC sub-layer. 9600IP will sort the packets using the QoS and sends it to the destination. VLAN Enable: Enable VLAN election, it can separate the voice message, signaling message and data message at the second floor, and by configuring the IP precedence which in ToS field of voice message to realize the separation of voice message and data message at the third floor, through which to allow the upper... -
Page 25: Digital Map
priority for the 2nd rank, 68-78 is guarantee for the transmission priority for the 3rd rank, 88-98 is guarantee for the transmission priority for the 4th rank. 802．IP Priority: The priority of 802.ip 3.5.7 Digital Map Digit map is a set of rules to determine when the user has finished dialing. 9600IP support below digital map: Digital Map is based on some rules to judge when user end their dialing and send the number to the server. -
Page 26: Call Service Settings
3.5.8 Call Service Settings User configure the value add service such as hotline, call forward, call transfer, call waiting, 3-way conference call, auto-answer, etc in this page Hotline: configure hotline number. 9600IP immediately dials this number after hook-off if it is set. Auto Answer: Enable/disable auto answer function. -
Page 27: Memory Key
3.5.9 Memory Key This page layout shows the number setting of Voice mail and speed-dial key. If MWI Number * 97 is configured, press the red MWI key on the panel, you can listen to voice broadcast, according to the voice prompts for a password (the phone default password is 1234), and other information, you can listen to a message If not configured * 97, the phone on-hook mode, enter * 97 #, you can listen... -
Page 28: Mmi Filter
to voice messages. 3.5.10 MMI Filter MMI filter is used to make access limit to 9600IP phone. When MMI filter is enable. Only IP address within the start IP and end IP can access 9600IP phone. 3.5.11 DSP CODEC: select the prefer CODEC; support ulaw, alaw, G729 and G7231 5.3/6.3 Signal Standard: Signal standard for different area. -
Page 29: Vpn
3.5.12 VPN This page is VPN setting page, the IP phone support the VPN with UDP and L2TP protocol .The parameters is as below: VPN IP： After VPN registered successfully, VPN server will give an IP aggress to the terminal. If there is a IP address shown on terminal (except for 0.0.0.0), it means your VPN has registered UDP Tunnel VPN Server Addr: register to the address of VPN server... -
Page 30: Config Manage
3.7 Config Manage Save Config: save current settings. Clear Config: restore to default settings. Backup Config: Backup the config file, via point the right key of mouseà save target as…. àwill pop a save window, then type the config file name in the File name (the file type is text file) Update Configuration: Update the current configuration through configuration files. -
Page 31: Update Firmware
3.8 Update Firmware 3.8.1 Update Web Update： Update the application or configuration files of the phone. The application document is .z format, and the configuration file is .cfg format. Through clicking on the "browse" button to open the upgrade file or configuration file, then click on "Update"... -
Page 32: Auto Update
3.8.2 Auto Update Current Version: the system will display the current version number Server Address: FTP/TFTP server address Username: FTP server user name Password: FTP server password Config File Name: The name of configuration file Config Encrypt Key: The encrypt key of confirmation file Protocol Type: The protocol type that used for upgrading Update Interval Time: The interval time that the terminals search for new configuration file. -
Page 33: System Manage
3.9 System Manage 3.9.1 Account Manage Set web access account or keypad password of 9600IP. 3.9.2 Syslog config Set the system log Server IP: set the syslog server address Server Port: set the syslog server port MGR Log Level: set the MGR log level SIP Log Level: set the SIP log level IAX2 Log Level: set the IAX2 log level... -
Page 34: Phone Book
Please click “apply” after setting 3.9.3 Phone Book 3.9.4 Time Set This page layout is the setting of time of phone. Server: type the IP address of time server Time zone: select correct time zone in list box Timeout: longest response time for SNTP Daylight: Daylight saving time SNTP: select SNTP server 12 Hours Format: select 12 hours format... -
Page 35: Mmi Set
3.9.5 MMI SET Set the greeting information on LCD. 3.9.6 Logout & Reboot Logout：Exit the Web entry. Reboot Phone：Logout the entry, and reboot the phone. When user modifies any config of the phone, it will take effect after being rebooted, you can enter into this layout and click “Reboot”. -
Page 37: Operating Method For Dialing
4. Operating Method for Dialing 4.1 How to dial IP Phone You can make a call after being made a proper setting on your phone. Please confirm whether all the net wires are connected correctly. If you want to make a call, you can make it after dialing the number and then pressing “#”. - Page 38 ----choose static; ----fill in the IP address of 9600IP in the IP address; ----fill in the subnet mask in Netmask; ----fill in the router address or up Gateway address in the Gateway; ----fill in the local DNS server address in the Primary DNS and Alter DNS respectively.
-
Page 39: Sip Setting
4.2.2 SIP setting Enter into the VoIP à SIP Config to set the layout config and sip account information: Register Server Addr: Register address of public SIP server Register Server Port: Register port of public SIP server，default port is 5060 Register Username: Username of your SIP account (Always the same as the phone number) Register Password: Password of your SIP account. -
Page 40: Iax Setting
4.2.3 IAX2 setting IAX Server Addr: Register address of public IAX server IAX Server Port: Register port of public IAX server，default port is 4569 Account Name: Username of your SIP account (Always the same as the phone number) Account Password: Password of your IAX account. Local port: Signal port of local, default port is 4569 Phone Number: Phone number of your IAX account ----choose Enable Register；... - Page 41 You can click “Add” to add a new dial rule. Below is the detail setting of the dial-rule: Phone Number: The Number suit for this dial rule can be set as full match or prefix match. Full match means that if the number user dialed is completely the same as this number, the call will use this dial-rule.
-
Page 42: Voice Mail
2T rule: If the call starts with 2, the first 2 will be deleted, and the rest number will be sent to private SIP server. 3T rule: If the call starts with 3, the first 3 will be deleted, and the rest number with be sent to public SIP server. - Page 43 FCC Warning： This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
