3 Through web browser to set phone

Plug one end of the network line to the network card port of the computer, the
other end to Lan port of the phone, phone will obtain the IP address automatically,
open IE, input the IP address on Address column, then enter into the Web Setting
Page. The method of obtaining the dynamic IP address is: under the on-hook status,
press "**47#", then phone will broadcast the current IP address.

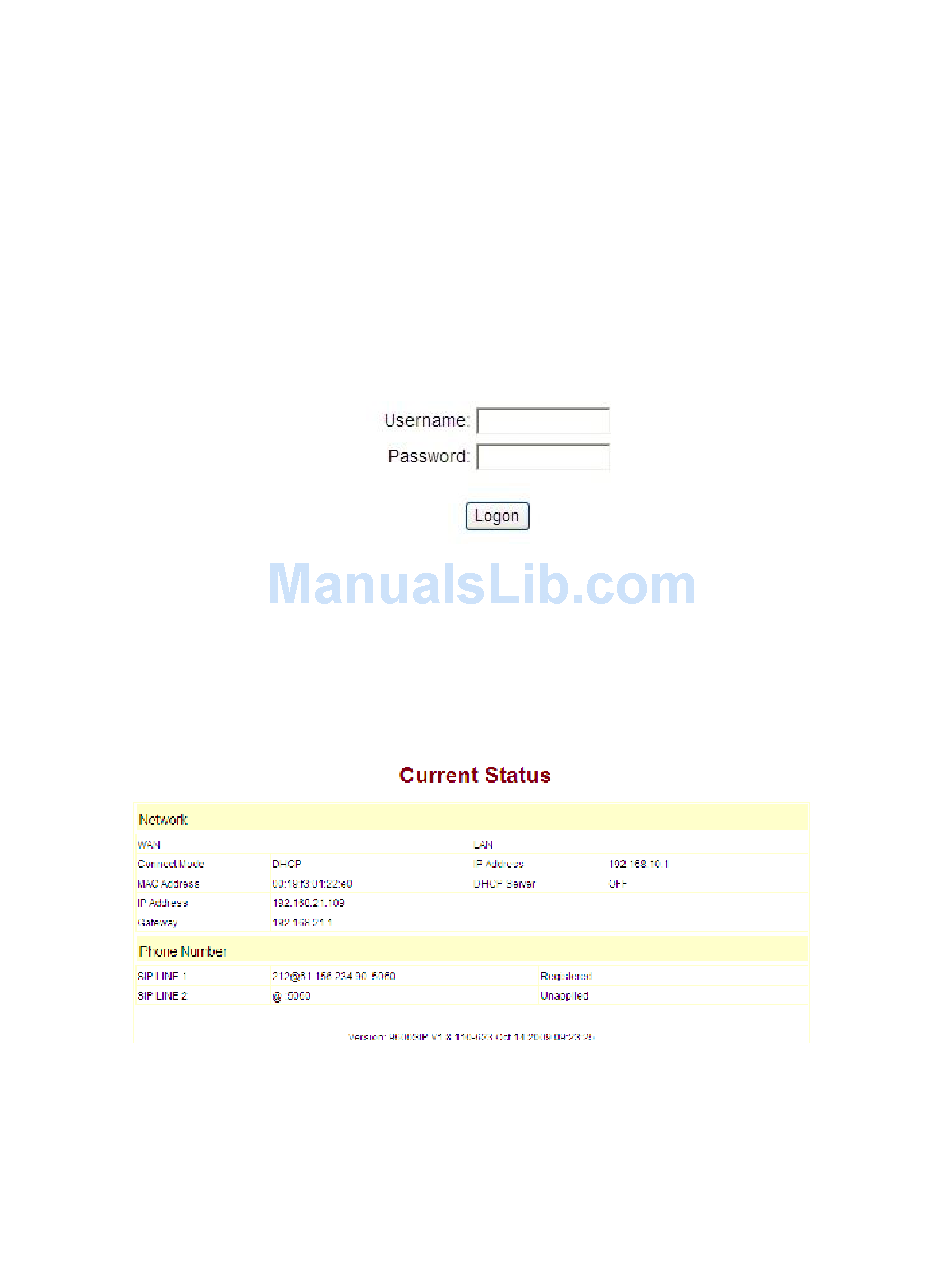

3.1 Logon

The default user name and password are admin/admin and guest/guest. and，
admin/admin is super user name and password，guest/guest is common user name
and password。Logon interface is as follows：

3.2 Current state

This page layout shows the work state of VoIP phone. The network part shows
the connection state of WAN interface and LAN interface and the network setting;
the work state of Public SIP service of VoIP part, and here you can see the
registration and whether registered to the server or not. The Phone Number part
shows the telephone numbers in Private SIP server and Public SIP server.

3.3 Network

3.3.1 Wan Config

WAN port network setting page.
Support static IP, dynamic obtain IP and PPPoE.
