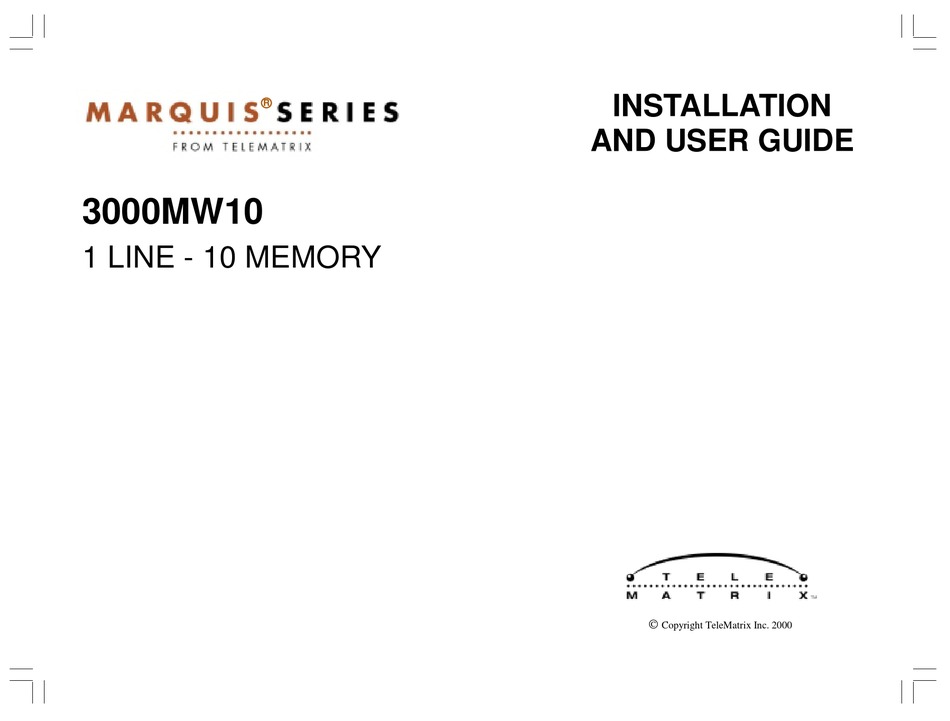

- Page 1 ® ® ® ® INSTALLATION AND USER GUIDE 3000MW10 1 LINE - 10 MEMORY Copyright TeleMatrix Inc. 2000...
-
Page 2: Fcc Part 15 Compliance
FCC Part 15 Compliance Warning Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to oper- ate the equipment. NOTE: This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following: 1. Read and understand all instructions. 2. Follow all warnings and instructions marked on the product. 3. - Page 4 SAFETY DOC - NOTICE AND LOAD NUMBER STATEMENT NOTICE: The Canadian Department of Communications label identifies certified equipment. This certification means that the equipment meets certain telecommunications network protective, operational and safety requirements. The Department does not guarantee the equipment will operate to the user's satisfaction. Before installing this equipment, users should ensure that it is permissible to be connected to the facilities of the local telecommu- nications company.
- Page 5 SAFETY NOTIFICATION TO THE TELEPHONE COMPANY BEFORE YOU MAY CONNECT YOUR TELEPHONE YOU MUST NOTIFY THE TELEPHONE COMPANY OF PARTICULAR LINE(S)TO WHICH SUCH CONNECTIONS IS TO BE MADE, AND PROVIDED TO THE TELEPHONE COMPANY THE FCC REGISTRATION NUMBER AND RINGER EQUIVALENCE NUMBER OF THE REGISTERED PROTECTIVE CIRCUITRY.
-
Page 6: Table Of Contents
CON- Features ...........………..……………………………………........Controls ................……………………………………………….. Switch Settings ........….......……………………………………………..Installation ..............……………………………………………..Wall Mounting ........….......……………………………………………..Programming Speed Dial Memory .........……………………………………………..Operation ................……………………………………………..Care and Maintenance ..........……………………………………………..Service …………………………………………………..……………………………………….………… Warranty ...............…………………………………………….. - Page 7 FEA- • One Line • Convenient Data Port • 10 Single Button Memory Locations With Secure Programming • Tone Dialing • Handset Volume Control • TouchLite™ Message Waiting Retrieval • NEON/LED Message Waiting Switch • Store Key (submerged)) • Storable Flash Function (600 mS) (submerged) •...
- Page 8 CON- (12) (13)
-
Page 9: Controls
DEFINITION OF CON- Handset ..…………..…………..…... Hearing aid compatible, low profile styling. Ringer Controls ………………….……………. Adjusts the volume of the ringers to HI/LOW setting. Handset Clip …………………………………... Retains the handset when the phone is wall mounted. Handset Jack ……………………………….… Modular receptacle where handset cord plugs into the base unit. Dial Pad ………………………………….…….. - Page 10 SWITCH SET- There are installer selectable switches located on the bottom base underneath a protective plastic overlay. These switches are hid- den behind a plastic cover for security. To locate, remove the plastic covers using a sharp pointer or paper clip as shown. Message Waiting Selector The 3000MW10 can support 90VDC neon or low-voltage LED message waiting systems.
- Page 11 INSTALLA- Parts Check List The following parts are included in this package: 1. 15’ modular telephone line cord. 2. Modular coiled handset cord. 3. Base unit 4. Handset Caution • Never install telephone wiring during a lightning storm. • Never install telephone jacks in wet locations unless the jack is specifically designed for wet locations. •...
-
Page 12: Installation
INSTALLATION Connecting The Handset Cord A 10’ modular coil handset cord is provided. Figure 3 To install, simply plug one end of the handset cord into the modular jack on the handset. The remaining end of the handset cord plugs into the jack labeled “Handset”... -
Page 13: Wall Mounting
WALL MOUNTING UNSNAP ROTATE 180 . SNAP INTO PLACE. Wall Mounting Your 3000MW10 The 3000MW10 was designed to be conveniently wall mounted. There is no additional hardware required. Follow these easy steps: 1. The handset retaining clip must be engaged to secure the handset when hanging up. - Page 14 PROGRAMMING SPEED A. The “STORE”, “FLASH”, and “PAUSE” function keys are located underneath the clear plastic overlay and paper faceplate. To access, Figure 9 lift off the overlay and paper faceplate using a paperclip or sharp pointer. (figure 9 and 10) Figure 10...
- Page 15 PROGRAMMING SPEED C. Storing “PAUSE” Into Memory D. FLASH Hook Function B. Storing A Number Into Memory If you are using your 3000MW anywhere that The Flash function is used to access PBX Up to 10 phone numbers can be stored into requires and access code for outside calls, features or Telco line features such as Call memory.
- Page 16 PROGRAMMING THE FEATURE DESCRIPTION PROGRAMMING TouchLite ™ TouchLite™ is a new innovation that integrated 1. Lift the handset. the visual message waiting lamp and a speed 2. Press the “STORE” key. dial key into one. It allows easy access for 3.
-
Page 17: Operation
OPERATION PLACING A CALL USING THE HANDSET • Lift the handset. • Dial out by using the numeric dial pad or by pressing a speed dial location. RECEIVING A CALL USING THE HANDSET • lift the handset when ringing. HANDSET VOLUME CONTROL The handset volume control increases the volume of the handset. - Page 18 CARE AND MAINTE- Keep the telephone dry. If it gets wet, wipe it dry immediately. Liquids might contain minerals that can corrode the electronic circuits. Use and store the telephone only in normal temperature environments. Temperature extremes can shorten the life of electronic devices, damage batteries, and distort or melt plastic parts.
-
Page 19: Service
Fax: 719-638-8815 www.telematrixusa.com Many times a problem is either installation or user related. Please contact TeleMatrix PRIOR to sending a telephone to our service center for repair. In the unlikely event that a factory repair be necessary: 1. Include a brief description of the trouble that you are experiencing. -
Page 20: Warranty
TeleMatrix, Inc (TeleMatrix) warrants to its customers that products manufactured by TeleMatrix are free from defects in materials and workmanship. TeleMatrix's obligations under this warranty are limited to repairing or replacing at TeleMatrix's option, the part or parts of the product, which are reported, defective in material or workmanship within five (5) years after the date of purchase.
