Summary of Contents for Telematrix marquis 3000MW5

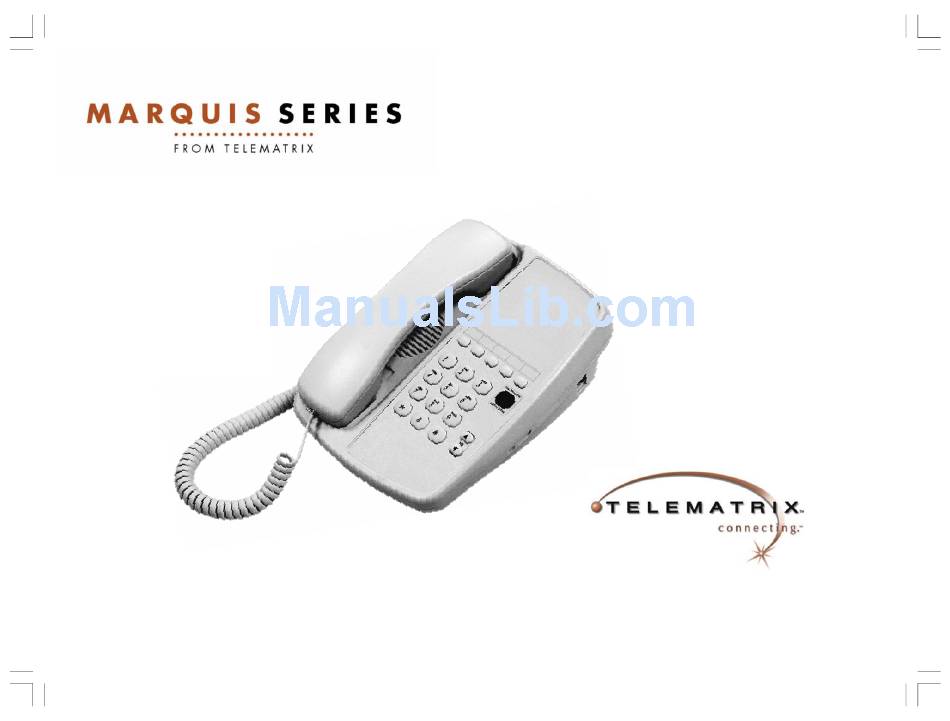

- Page 1 ® INSTALLATION AND USER GUIDE 3000MW5 SINGLE LINE ENHANCED FEATURE PHONE 5 MEMORY TeleMatrix Copyright 2005 ©...
- Page 2 COMPLIANCE AND SAFETY As specified by FCC regulation, we are required to inform you of specific governmental and compliance regulatory requirements, safety notices, safety instructions and other informative information. TeleMa- trix, Inc. provides this information in a separate manual. We pack the separate Compliance and Safety Manual within each outer box or product box when shipped.
-
Page 3: Table Of Contents
CONTENTS Features .........…..……………………………………........1 Controls ..............……………………………………………….. 3 Switch Settings .........….......……………………………………………..4 Installation ..............……………………………………………..5 Wall Mounting ............……………………………………………..Programming Speed Dial .......……………………………………………..……..!!8 Operation ..............……………………………………………..11 Care and Maintenance ..........……………………………………………..12 Service ………………………………………………………………………………………...…………………………….………… 13 Warranty ...............……..……………………………..14... -
Page 4: Features
FEATURES • One Line • Convenient Data Port • 5 Single Button Memory Locations With Secure Programming • Tone Dialing • Handset Volume Control • TouchLite™ Message Waiting Retrieval • NEON/LED Message Waiting Switch • Store Key (submerged)) • Storable Flash Function Programmable at 100mS to 1000mS (default is 600mS) •... -
Page 5: Definition Of Controls
DEFINITION OF CONTROLS Handset ..…………..…………..……... Hearing aid compatible, low profile styling. Ringer Controls ………………….……...………... Adjusts the volume of the ringers to HI/LOW setting. Handset Clip ………………………………………..Retains the handset when the phone is wall mounted. Handset Jack ……………………………………...… Modular receptacle where handset cord plugs into the base unit. Dial Pad ………………………………….………….. -
Page 6: Controls
CONTROLS (1 2) (1 4) (1 3) (9 ) (10 ) (7 ) (8 ) (5 ) FRONT VIEW... -
Page 7: Switch Settings
SWITCH SETTINGS There are installer selectable switches located on the top base underneath a protective plastic overlay. These switches are hidden behind a plastic cover for security. To locate, remove the plastic covers using a sharp pointer or paper clip as shown. Message Waiting Selector The 3000MW5 can support 90VDC neon or low-voltage LED message... -
Page 8: Installation
INSTALLATION Parts Check List The following parts are included in this package: 1. 15’ modular telephone line cord. 2. Modular coiled handset cord. 3. Base unit 4. Handset Caution • Never install telephone wiring during a lightning storm. • Never install telephone jacks in wet locations unless the jack is specifically designed for wet locations. •... - Page 9 INSTALLATION Connecting The Handset Cord Figure 3 A 10’ modular coil handset cord is pro- vided. To install, simply plug one end of the handset cord into the modular jack on the handset. The remaining end of the handset cord plugs into the jack labeled “Handset”...
-
Page 10: Wall Mounting
Pull down firmly until you feel it snap into place. The unit is now wall mounted. (figure 8) CONTACT TELEMATRIX FOR THE OPTIONAL WALL MOUNTING WEDGE. CALL PRIORITY CARE AT 1-800-462-9446. -
Page 11: Programming Speed Dial
PROGRAMMING SPEED DIAL The “STORE”, “FLASH”, and “PAUSE” function keys are located underneath the Figure 9 clear plastic overlay and paper faceplate. To access, lift off the overlay and paper faceplate using a paperclip or sharp pointer. (figure 9 and 10) Figure 10... - Page 12 5. If additional numbers are to be the numeric dial pad. stored, repeat steps 3 thru 4. 6. Press the desired memory loca- Note: Call TeleMatrix Priority 6. Hang up the handset. tion wherein the number is to be Care Department for possible stored.
- Page 13 PROGRAMMING THE TouchLite ™ FEATURE DESCRIPTION PROGRAMMING TouchLite ™ TouchLite™ is a new innovation that inte- 1. Lift the handset. grated the visual message waiting lamp 2. Press the “STORE” key. and a speed dial key into one. It allows 3.
-
Page 14: Operation
OPERATION PLACING A CALL USING THE HANDSET • Lift the handset. • Dial out by using the numeric dial pad or by pressing a speed dial location. RECEIVING A CALL USING THE HANDSET • lift the handset when ringing. HANDSET VOLUME CONTROL The handset volume control increases the volume of the handset. -
Page 15: Care And Maintenance
CARE AND MAINTENANCE Keep the telephone dry. If it gets wet, wipe it dry immediately. Liquids might contain minerals that can corrode the electronic cir- cuits. Use and store the telephone only in normal temperature environ- ments. Temperature extremes can shorten the life of electronic devices, damage batteries, and distort or melt plastic parts. -
Page 16: Service
Fax: 719-638-8815 www.telematrixusa.com Many times a problem is either installation or user related. Please contact TeleMatrix PRIOR to sending a telephone to our service center for repair. In the unlikely event that a factory repair be necessary: 1. Include a brief description of the trouble that you are experiencing. -
Page 17: Warranty
STATEMENT OF LIMITED WARRANTY TeleMatrix, Inc. (TMX) warrants to its [original end customer] [purchaser] that Spectrum, Spectrum Plus and Marquis branded products manufactured by TMX are free from defects in materials and workmanship for five (5) years after the date of purchase, and Regency branded products manufactured by TMX are free from defects in materials and workmanship for three (3) years, other than the following products for which the warranty period shall be one (1) year: handset batteries, either NiCd or NiMH, used in TMX cordless products. - Page 18 252-xxx (3000MW5) Rev. May 2, 2005...
