- Page 1 MANUAL ENGLISH AMP-104 Ordercode: D1536 4 Channel Headphone Amplifier Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...

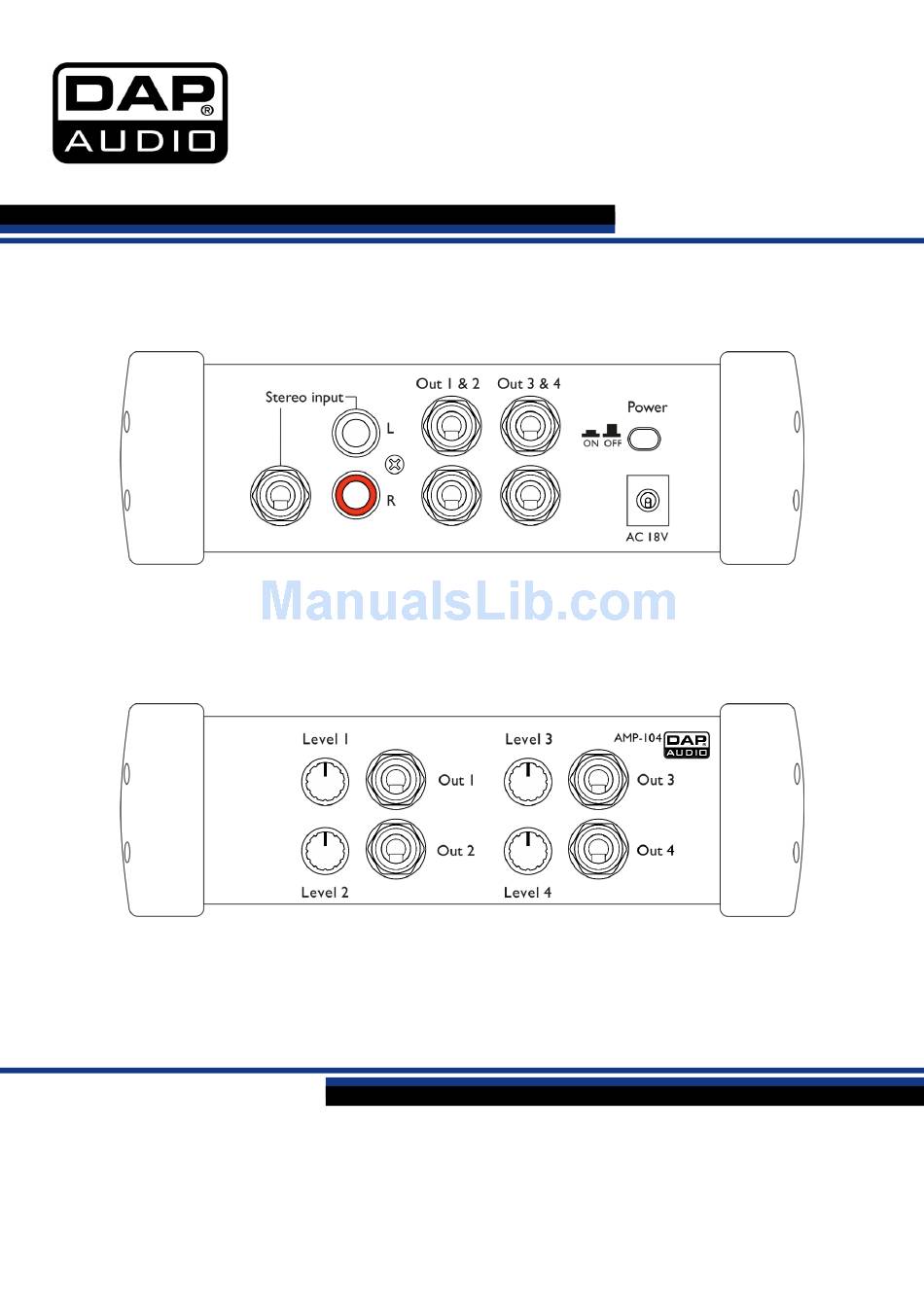

- Page 2 RCA stereo input, which makes it convenient for multiple applications. All 4 outputs are controlled with their own volume control. The headphones can be connected at both sides of the AMP-104. This makes it possible to connect 8 headphones, which will be operated in groups of 2 pcs.
- Page 3 AMP-104 4 Channel Headphone Amplifier Connection Example D1536...
-
Page 4: Specifications
AMP-104 4 Channel Headphone Amplifier Dimensions Specifications Frequency Response: 20Hz-20KHz Inputs: 6,3 mm Jack, RCA Outputs: 6,3 mm Jack (8x) Output impedance: 2x 50 Ohm Output power: 2x 50mW @ 32Ohm Power supply: 18V AC (adapter included) Dimensions: 53x158x135 mm (HxWxD)
