Performance Verification
5-114
371B Test Fixture

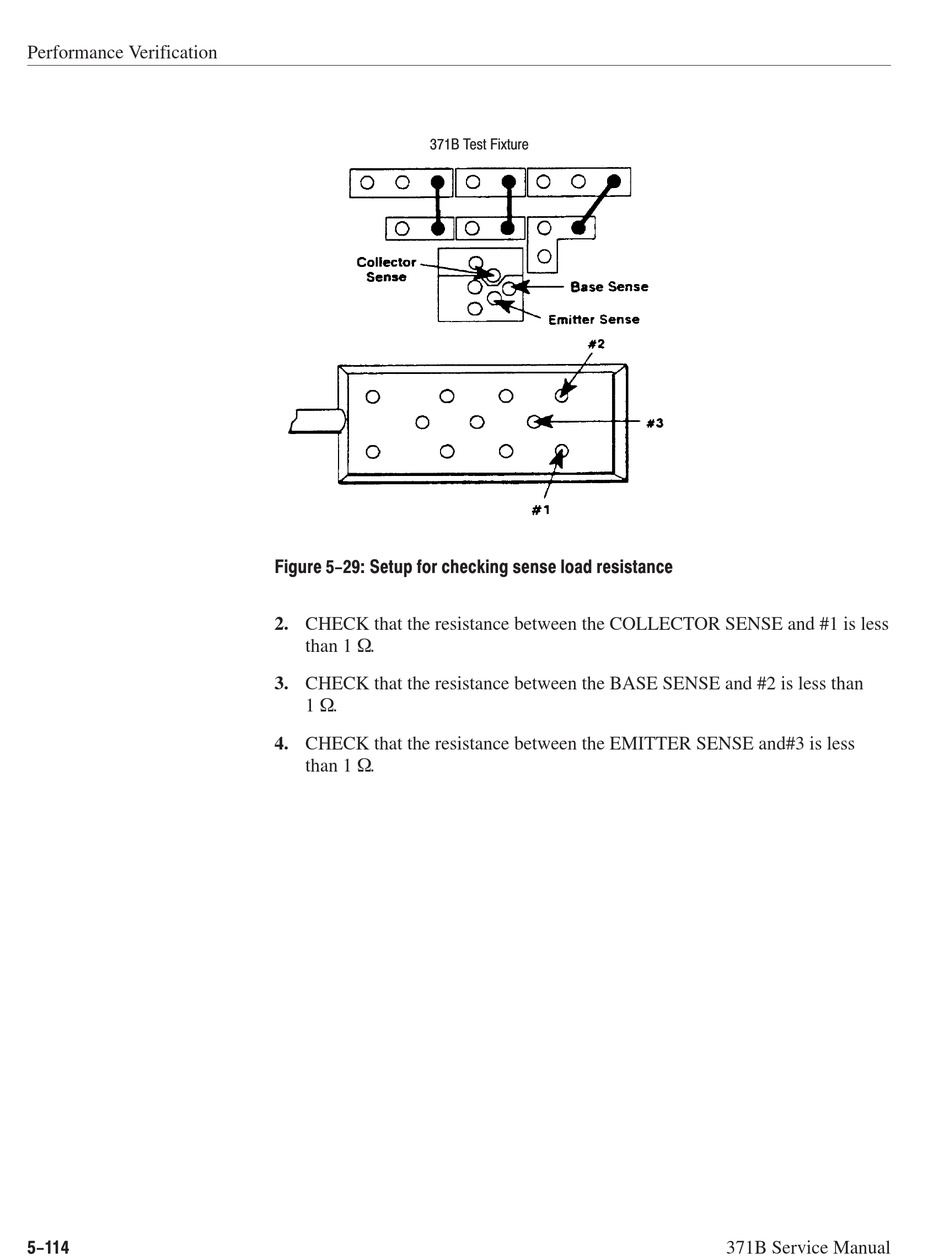

Figure 5-29: Setup for checking sense load resistance
2. CHECK that the resistance between the COLLECTOR SENSE and #1 is less
than 1 W.
3. CHECK that the resistance between the BASE SENSE and #2 is less than
1 W.
4. CHECK that the resistance between the EMITTER SENSE and#3 is less
than 1 W.
371B Service Manual
