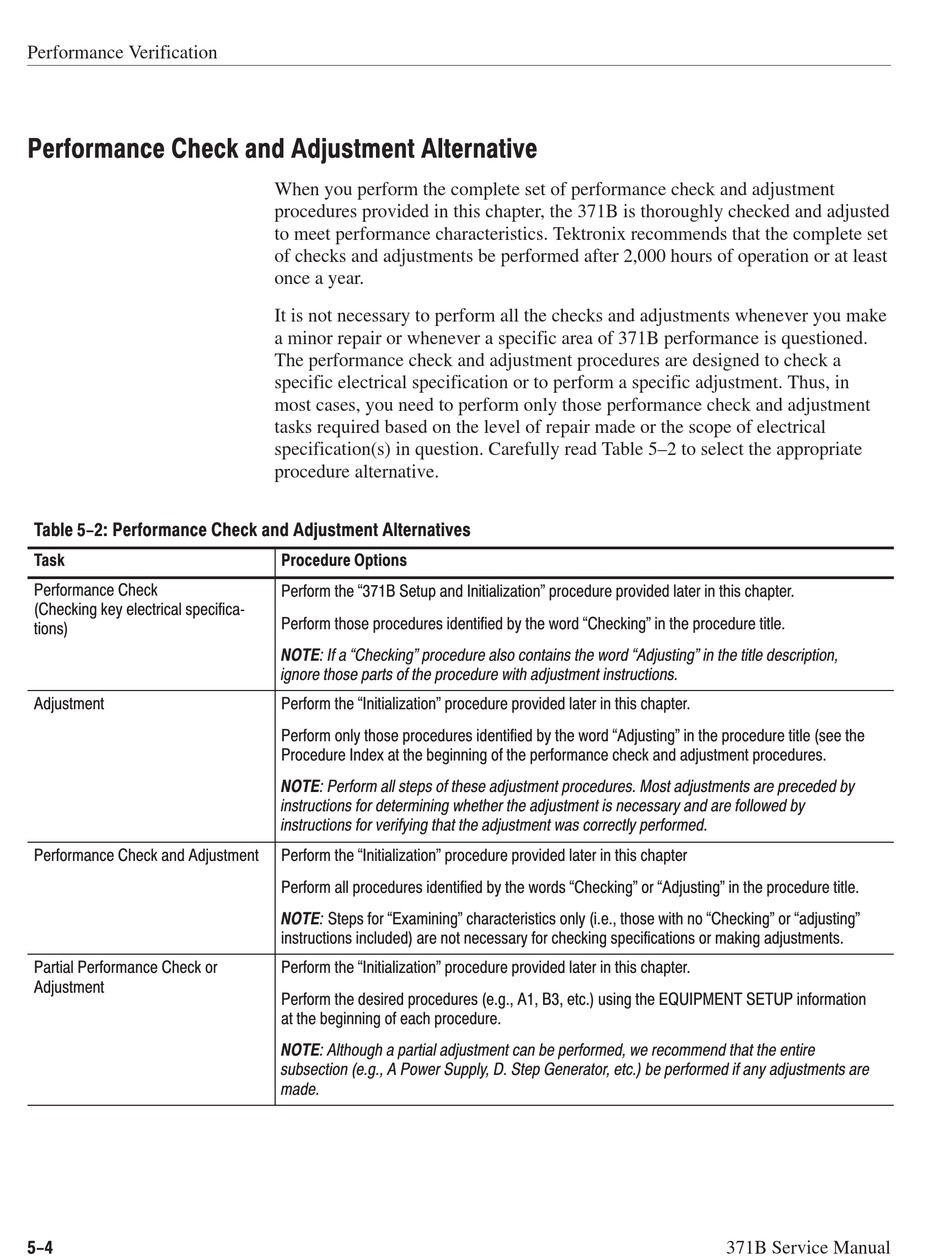

Table 5-2: Performance Check And Adjustment Alternatives - Tektronix 371B Service Manual

Performance Verification
Performance Check and Adjustment Alternative

Table 5-2: Performance Check and Adjustment Alternatives

Task
Performance Check
(Checking key electrical specifica
tions)
Adjustment
Performance Check and Adjustment
Partial Performance Check or
Adjustment
5-4
When you perform the complete set of performance check and adjustment
procedures provided in this chapter, the 371B is thoroughly checked and adjusted
to meet performance characteristics. Tektronix recommends that the complete set
of checks and adjustments be performed after 2,000 hours of operation or at least
once a year.
It is not necessary to perform all the checks and adjustments whenever you make
a minor repair or whenever a specific area of 371B performance is questioned.
The performance check and adjustment procedures are designed to check a
specific electrical specification or to perform a specific adjustment. Thus, in
most cases, you need to perform only those performance check and adjustment
tasks required based on the level of repair made or the scope of electrical
specification(s) in question. Carefully read Table 5–2 to select the appropriate
procedure alternative.
Procedure Options
Perform the 371B Setup and Initialization" procedure provided later in this chapter.
Perform those procedures identified by the word Checking" in the procedure title.
NOTE: If a Checking" procedure also contains the word Adjusting" in the title description,
ignore those parts of the procedure with adjustment instructions.
Perform the Initialization" procedure provided later in this chapter.
Perform only those procedures identified by the word Adjusting" in the procedure title (see the
Procedure Index at the beginning of the performance check and adjustment procedures.
NOTE: Perform all steps of these adjustment procedures. Most adjustments are preceded by
instructions for determining whether the adjustment is necessary and are followed by
instructions for verifying that the adjustment was correctly performed.
Perform the Initialization" procedure provided later in this chapter
Perform all procedures identified by the words Checking" or Adjusting" in the procedure title.
NOTE: Steps for Examining" characteristics only (i.e., those with no Checking" or adjusting"
instructions included) are not necessary for checking specifications or making adjustments.
Perform the Initialization" procedure provided later in this chapter.
Perform the desired procedures (e.g., A1, B3, etc.) using the EQUIPMENT SETUP information
at the beginning of each procedure.
NOTE: Although a partial adjustment can be performed, we recommend that the entire
subsection (e.g., A Power Supply, D. Step Generator, etc.) be performed if any adjustments are
made.
