Performance Verification
5-78
Equipment Setup. Set up the equipment as shown in the following illustration and
set controls as described.
371B Settings:
Initialize the 371B, then set the following control as indicated.
POWER
COLLECTOR SUPPLY
PEAK POWER WATTS
DISPLAY
Mode
Horizontal
STEP GENERATOR
NUMBER OF STEPS
SOURCE
STEP/OFFSET AMPLITUDE
OFFSET
Test Equipment Settings:
DIGITAL MULTIMETER
Mode

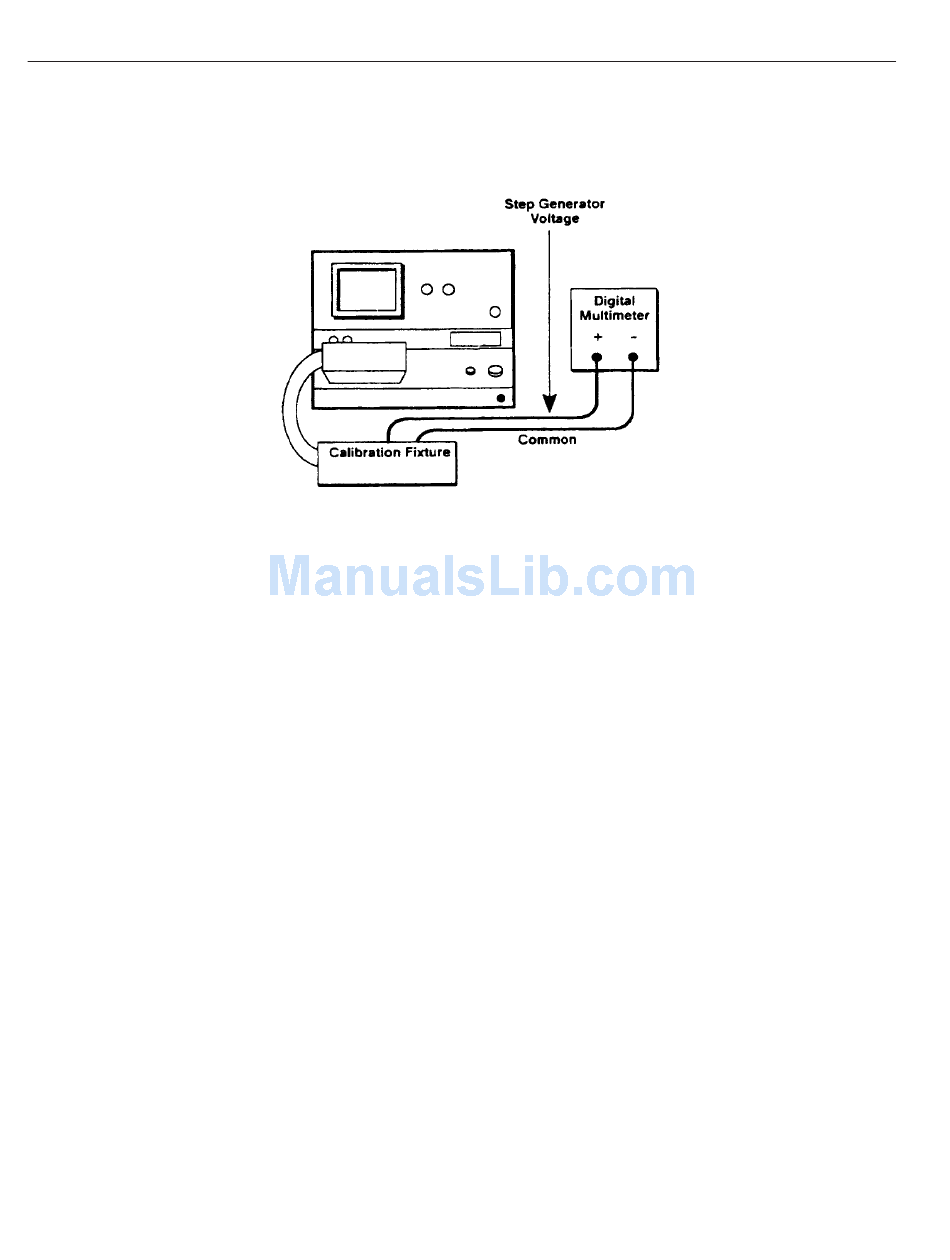

3. Connect the digital multimeter between the STEP GENERATOR VOLTAGE
terminal and the COMMON terminal as shown in Figure 5–16.
371B
ON
30 W
NON STORE
1 V/DIV STEP GEN
10
VOLTAGE
500 mV
5000 mV
DC VOLTAGE
