Performance Verification
D8. Checking Incremental
Accuracy
5-70
371B Calibration Fixture

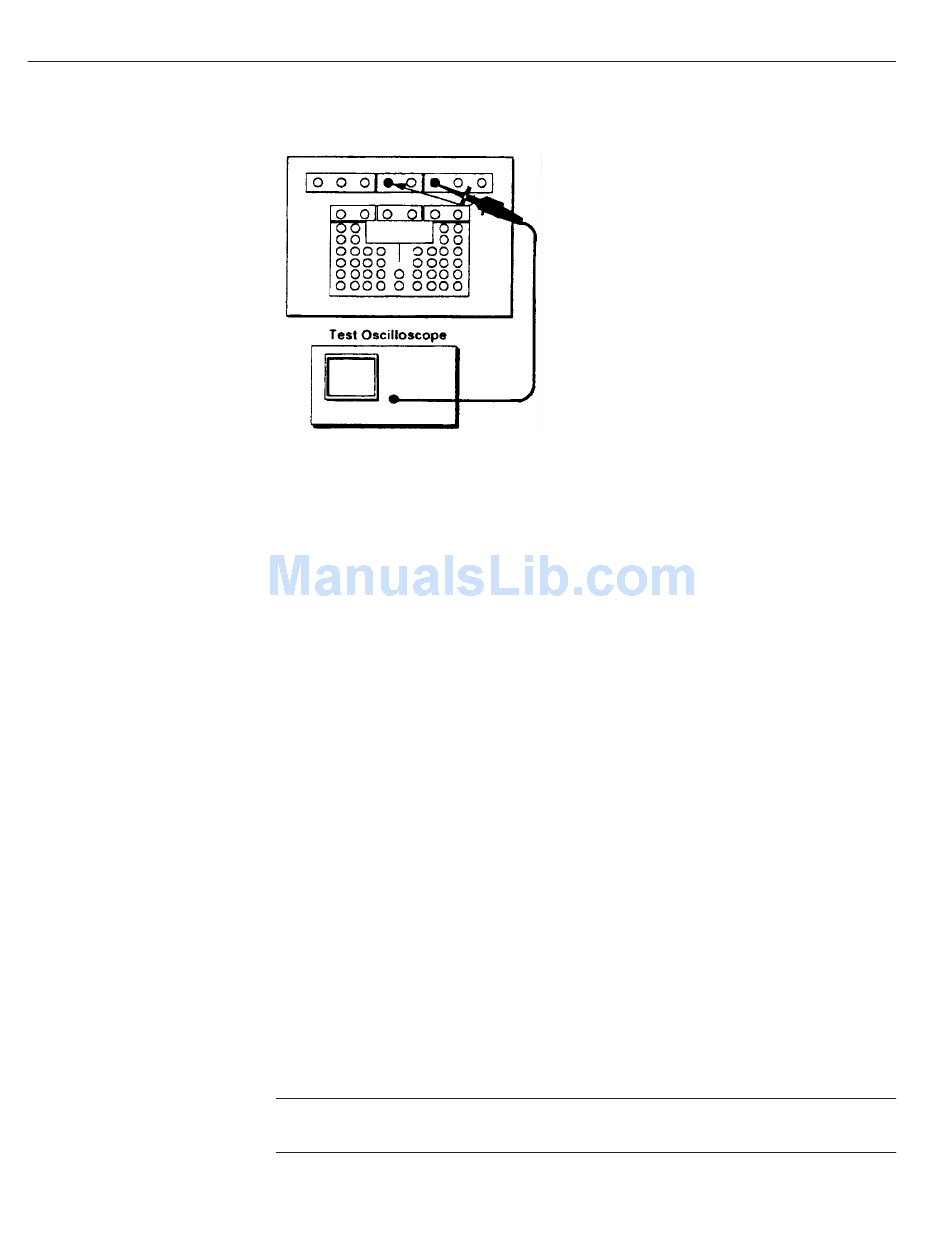

Figure 5-13: Calibration Fixture connections for checking ripple pulse noise of
voltage source mode
2. Close the protective cover.
3. CHECK for the ripple pulse noise within 30 mV
4. Remove the X1 probe.
Specifications:
H Each step is within 2 % of total output + 3 % of Step Amplitude + 2 mV.
H Less than 2 % variation between step amplitudes.
H With STEP MULTI .1X on, each step is within 4 % of total output + 5% of
step AMPLITUDE + 2 mV.
H With STEP MULTI .1X on, variation between step amplitudes is less than
5 %.
1. Change the following 371B setting:
POWER
2. Change the position of jumper J340 on A3 A/D board from ZERO to CAL.
NOTE. When the jumper J340 position is changed from ZERO to CAL, store
mode is disabled.
P-P
OFF
371B Service Manual
