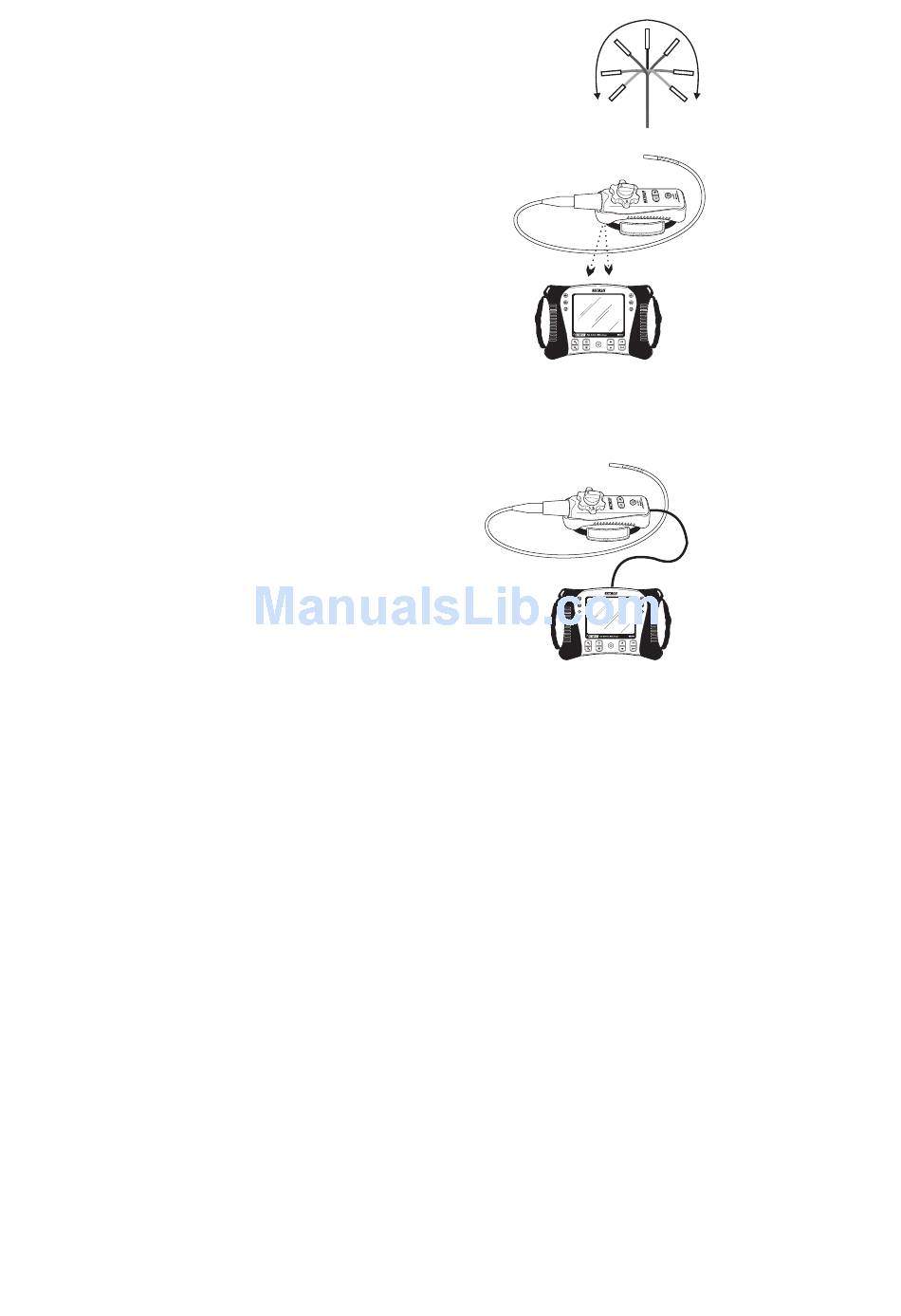

Articulating probe
The articulating probe, with adjustable tip angle, is used for
improved viewing angles and optimum inspection when the probe
inserted into the inspection location. The articulating probe is
available in a direct (wired) or wireless version.
Wireless version
1.
Connect the AC adaptor to the transmitter and
charge the battery.
2.
Press and hold the Power button for 4 seconds
to turn the monitor on, then select "WIRELESS"
under the INPUT SOURCE selection in the
MENU screen.
3.
Press and hold the Power button for 4 seconds
to turn the transmitter on. The camera video will
be transmitted to the monitor display.
4.
Insert the probe into the area to be inspected.
5.
Turn the probe outer knob to adjust the camera
tip to the viewing angle needed.
6.
Turn the upper knob to increase or decrease the
outer knob tension
Direct version
1.
Connect the probe to the monitor using the
supplied patch cable.
2.
Press and hold the Power buttons for 4
seconds to turn the probe and the monitor
on
3.
Insert the probe into the area to be
inspected.
8
HDV600-EU-EN-V1.2 4/11
is
