Wireless transmitter
The wireless transmitter is intended for use in areas that are difficult to access or in situations
when is hard to maneuver the probe with the display attached. The probe can also be connected
directly to the monitor using the patch cord.

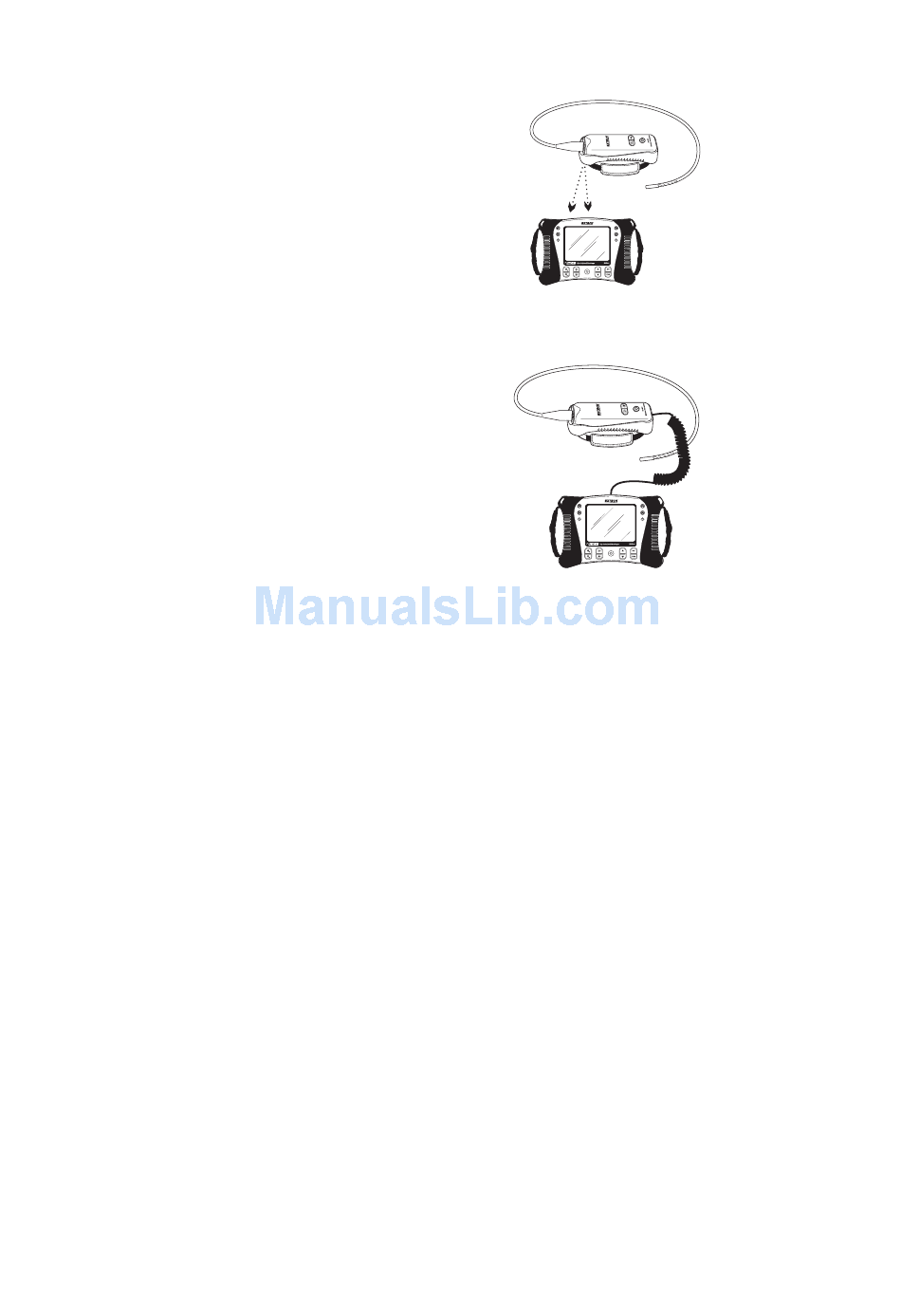

Wireless Mode
1.
Connect the AC adaptor to the transmitter and
charge the battery.
2.
Attach the probe to the transmitter.
3.
Press and hold the Power button for 4 seconds to
turn the monitor on, then select "WIRELESS" under
the INPUT SOURCE selection in the MENU screen.
4.
Press and hold the Power button for 4 seconds to
turn the transmitter on. The camera video will be
transmitter to the monitor display.
Direct Mode
1.
Connect the AC adaptor to the transmitter and
charge the battery.
2.
Attach the probe to the transmitter.
3.
Connect the patch cord between the transmitter and the monitor probe input connector
4.
Press and hold the Power button for 4 seconds
to turn the transmitter on.
5.
Press and hold the Power button for 4 seconds
to turn the monitor on, then select "DIRECT"
under the INPUT SOURCE selection in the
MENU screen.
6.
In the direct mode, light intensity is controled by
the buttons on the monitor, not by the buttons on
the transmitter.
10
HDV600-EU-EN-V1.2 4/11
