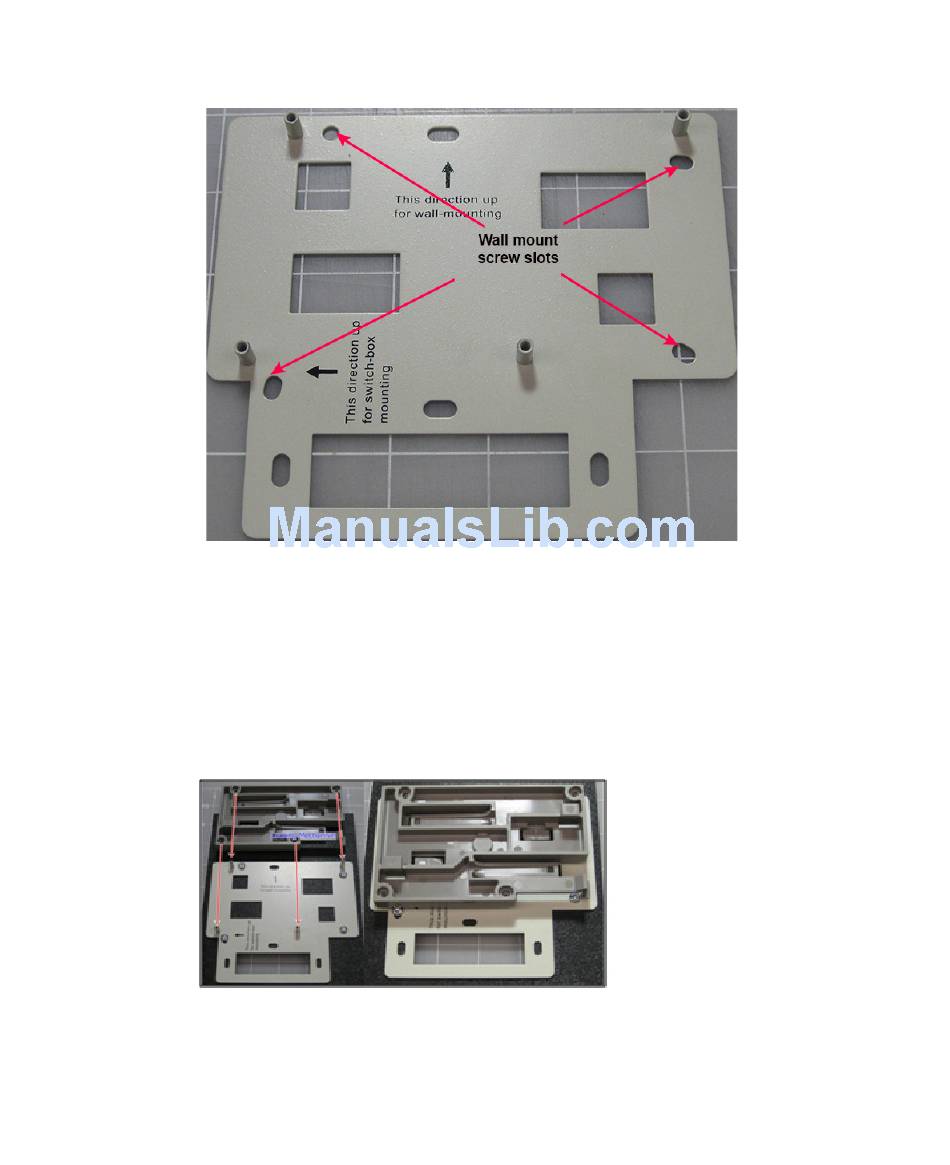

Figure 3:
AP822 Wall Bracket
Orient 15/16" T-Bar adapter/Wall mount adapter to line up with posts on wall mount
6.
bracket.
AP locking mechanism should be facing away from bracket.
7.
Position the adapter over posts on wall mount bracket.
8.
•
User may mount the wall mount adapter directly to the wall mount bracket or use the
included option spacers to allow additional clearance between the AP and bracket. See
"AP822 Wall Bracket without spacers"
ers"
on page
24.
Figure 4:
AP822 Wall Bracket without spacers
on page 23
and
"AP822 Wall Bracket with spac-
23
