- Page 1 Grandstream Networks, Inc. HA100 User Manual...
-
Page 2: Table Of Contents
LED Indication ............................11 HA100 CONNECTION ....................13 Powering And Connecting the HA100 ....................13 Optional Connections ........................13 Connecting The HA100 with 2 UCM6510 .................... 14 Environment ..........................14 Connection Steps ......................... 14 Function Description ........................16 EXPERIENCING HA100 ....................17... - Page 3 Figure 5: RS485 Ports on the UCM ......................11 Figure 6: HA100 LEDs ..........................12 Figure 7: Basic Connection on HA100 ......................13 Figure 8: HA100 Connection with UCM A and UCM B ................15 P a g e HA100 User Manual...
-
Page 4: Change Log
This section documents significant changes from previous firmware versions. Only major new features or major document updates are listed here. Minor updates for corrections or editing are not documented here. Firmware Version 1.0.0.1 • This is the initial version for HA100. P a g e HA100 User Manual... - Page 5 Grandstream Networks, Inc. is not permitted. The latest electronic version of this user manual is available for download here: http://www.grandstream.com/support...
- Page 6 GNU GPL INFORMATION HA100 firmware contains third-party software licensed under the GNU General Public License (GPL). Grandstream uses software under the specific terms of the GPL. Please see the GNU General Public License (GPL) for the exact terms and conditions of the license.
-
Page 7: Introduction

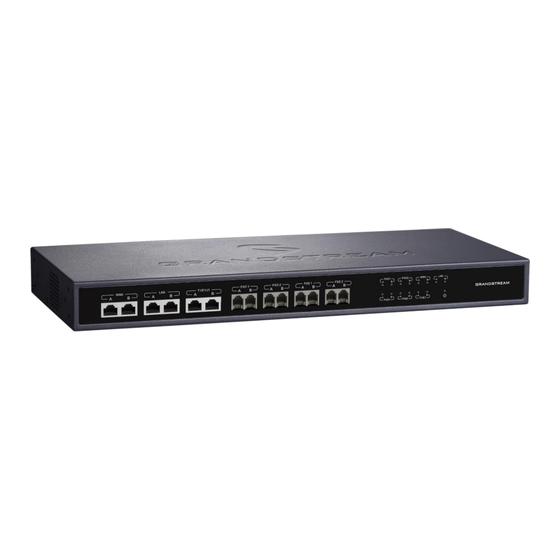

Thank you for using Grandstream HA100. To meet the requirements of our customers, Grandstream releases the HA100 which is a module designed to achieve High Availability function for our enterprise grad IP-PBX UCM6510. It contains a set of external ports and splits each of them into two internal ports: Port A and Port B. -
Page 8: Product Overview
UC system without any interruptions or failures. • Up to 14 LED indicators that can be controlled by GPIO ports. HA100 Technical Specifications The following table resumes all the physical and technical specifications for HA100: Table 2: HA100 Technical Specifications Back Panel Interface Analog Telephone FXS... -
Page 9: Figure 2: Ha100 Package Contents
Equipment Packaging The following diagram illustrate the equipment packaging for the HA100: 1x HA100 1x Quick Installation Guide 1x Power Adapter 2x USB-to-RS485 Cable Figure 2: HA100 Package Contents Note: Check the package before installation. If you find anything missing, contact your reseller/distributor. -
Page 10: Installation
INSTALLATION Before deploying and configuring the HA100, the unit needs to be properly powered up and connected. This section describes detailed information about the HA100 interfaces and also the steps needed for installing and connecting the HA100. HA100 Interfaces The HA100 device contains 24 ports, 1 reset button and 1 ground interface. -
Page 11: Ha100 Front Panel
Figure 5: RS485 Ports on the UCM LED Indication There are total of 15 LED lights on HA100, including 1 power indicator and 7 pairs of internal port indicator. Power indicator: The indicator will be in solid green once HA100 is powered on. -
Page 12: Figure 6: Ha100 Leds
Figure 6: HA100 LEDs P a g e HA100 User Manual... -
Page 13: Ha100 Connection
Please refer to following steps for the basic connection on the HA100: 1. Connect one end of the Ethernet cable to the WAN port of the HA100, connect the other end of the cable to the uplink of a hub or switch. -
Page 14: Connecting The Ha100 With 2 Ucm6510
FXO-A port, FXS-A port, E1/T1/J1-A port, WAN-A port and LAN-A port on HA100. 2. Use the USB-to-RS485 serial cable to connect UCM A’s USB port to the RS485-A port on HA100. 3. Connect respectively the FXO port, FXS port, E1/T1/J1 port, WAN port and LAN port on UCM B to the FXO-B port, FXS-B port, E1/T1/J1-B port, WAN-B port and LAN-B port on HA100. -
Page 15: Figure 8: Ha100 Connection With Ucm A And Ucm B
Figure 8: HA100 Connection with UCM A and UCM B P a g e HA100 User Manual... -
Page 16: Function Description
B is always disconnected, so only one UCM device is successfully connected at one time. When the 2 UCMs connect to HA100 via port A and port B, the primary UCM uses the external port on HA100 for data transmission. Additionally, the RS485 port on HA100 receives signaling from UCM to achieve the switch between port A and port B. -
Page 17: Experiencing Ha100
Our technical support staff is trained and ready to answer all of your questions. Contact a technical support member or submit a trouble ticket online to receive in-depth support. Thank you again for using Grandstream HA100 module, it will be sure to bring reliability to your business Telephony infrastructure. P a g e HA100 User Manual... - Page 18 FCC Compliance Statement: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Important: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
