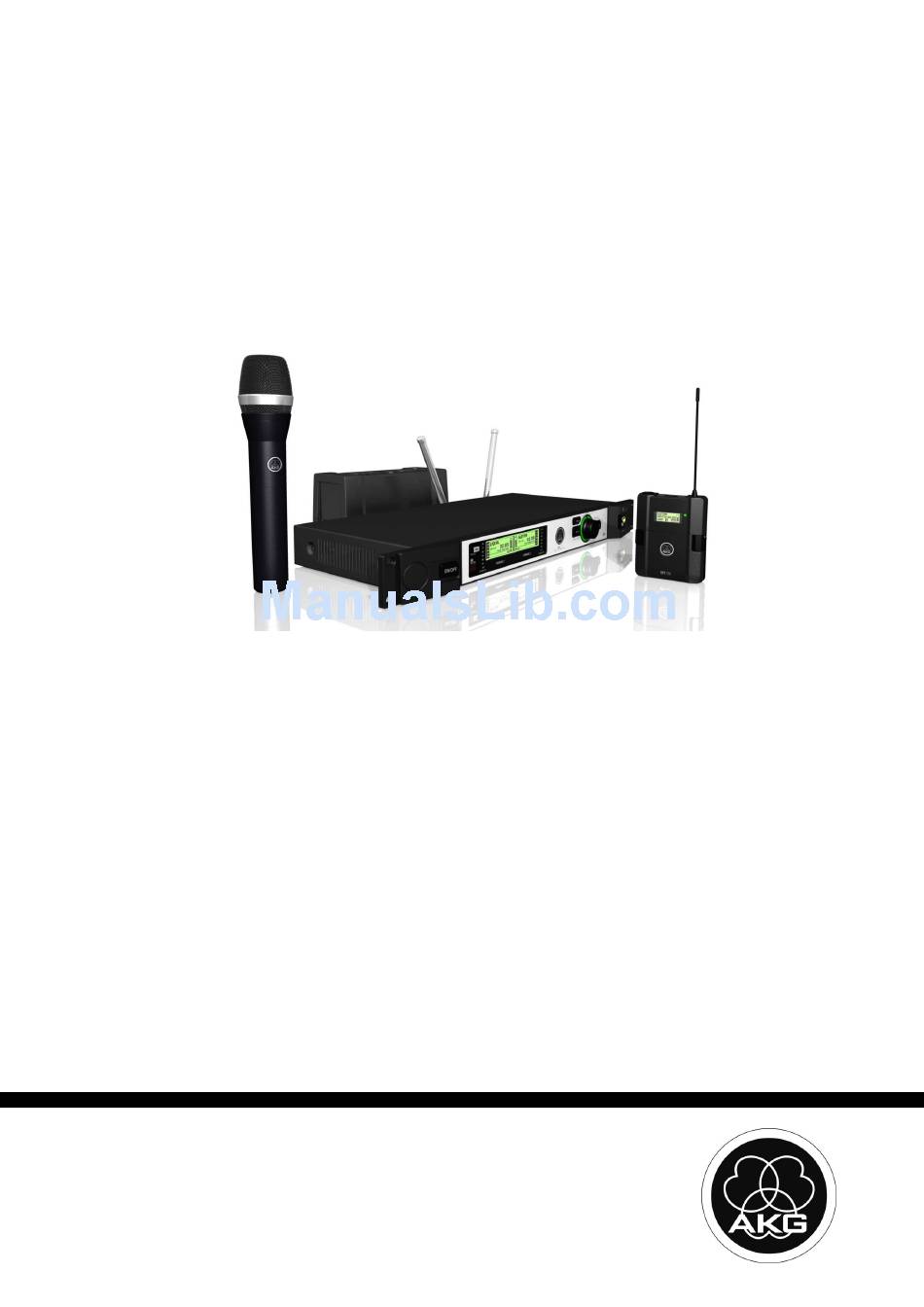

- Page 1 DMS700 Digital Wireless Microphone System DSR 700 – digital stationary receiver DPT 700 – digital bodypack transmitter DHT 700 – digital handheld transmitter USER MANUAL Please read the manual before using the equipment!
- Page 2 21. Data interface, RJ11 socket to connect device to a computer (via HUB 4000 Q) 22. BNC socket, AES-EBU Wordclock IN (48kHz) 23. XLR socket(male), digital AES-EBU audio output CH1 & CH2 (48 kHz) 24. IEC mains connector (90 - 240VAC) DMS 700 V1.00...
- Page 3 Battery compartment for two 1.5 V LR6 AA batteries or 1.2 V AA rechargeable batteries >2100 mAh. 10. 0.1 inch/2.5-mm jack socket for external mute switch 11. Charging contacts 12. Battery compartment release buttons DMS 700 V1.00...
- Page 4 Display for country or RF output level Status LED (red=warning, green=OK) Active encryption symbol Power ON/OFF button Active mute symbol Battery compartment cover Microphone element Battery compartment for two 1.,5 V LR6 AA batteries or 1.,2 V AA rechargeable batteries >2100 mAh. DMS 700 V1.00...
-
Page 5: Table Of Contents
Important Note! AKG continually improves the internal firmware of the DMS 700 system in order to meet changing customer needs in the best possible way. Should your system use a different firmware version than the one described in this User Manual, some functions may differ from the related instructions. -
Page 6: Safety And Environment
• Consult the dealer or an experienced radio/TV technician for help. Shielded cables and I/O cords must be used for this equipment to comply with the relevant FCC regulations. Changes or modifications not expressly approved in writing by AKG Acoustics may void the user’s authority to operate this equipment. -
Page 7: Packing List
25 MHz-increments. Both the handheld and the bodypack transmitter are set to the parameters selected on the receiver via infrared transmission. 4. Setting Up Prior to using your DMS 700, make certain that the transmitter and receiver are tuned to the same frequency. • Open the battery compartment cover (9). -
Page 8: Connecting The Receiver To A Mixer/Amplifier
• Channel Menu: You can directly open a sub-menu (Frequency, Group/Channel, Name…) with the desired channel. Inside the channel sub-menu you are able to change the channel. • Audio Menu: Inside the DSP and Output Gain sub-menu you are able to change the channel. • Rehearsal Menu: Select displayed graph. DMS 700 V1.00... -
Page 9: Back Button (4)
5 sec. visible. A small information (2 row) is active as long as the warning is not confirmed. The selected warning functions are active in LOCK and ACTIVE mode. To delete a warning message from the display, press the SETUP control briefly. DMS 700 V1.00... - Page 10 Audio Clip: Warning Information in order of priority: INTERFERE: Signal interference from other wireless systems, TV, radio, CB radios, or defective electrical appliances or installations is detected. ENCRYPTION: The Encryption scheme is not set properly. Interference Encryption Error: DMS 700 V1.00...
-
Page 11: Dsr 700 Menu
Changing the display contrast Turning ON/OFF encryption Reseting all parameters to their default values Deactivate the transmitter audio mute button Calling up software and hardware information Synchronize all values of the transmitter via infrared Quicksetup – Menu DMS 700 V1.00... -
Page 12: Channel - Menu
Channel – Menu AUDIO – Menu DMS 700 V1.00... -
Page 13: Envir. Scan - Menu
SELECT Reseting all parameters Reseting all parameters BACK to their default values to their default values : YES/NO SELECT Calling up software and Software and hardware BACK hardware information version SELECT Last 25 warnings : Navigate BACK DMS 700 V1.00... -
Page 14: Dpt 700 / Dht 700 Menu
8. DPT 700 / DHT 700 Menu Standard Startup Silent Mode Startup ON/OFF Button ON/OFF & MUTE Button Preset Mode Frequency Mode DMS 700 V1.00... -
Page 15: Function Description
All values can be stored with a freely-selectable name in one of the nine profiles. Attention! Profiles affect the settings on both channels! Changes effect both channels and all values stored in profiles previously will be overwritten! DMS 700 V1.00... -
Page 16: Environment Scan
MUTE button to set markers on the receiver display. You can navigate (CW, CCW) and zoom (push) through the graph by using the SETUP Wheel. The received signal level should never drop below -85 dBm. You can optimize signal reception by changing the position of the connected antennas. DMS 700 V1.00... -
Page 17: Utilities Menu
The INFO sub-menu lets you call up software and hardware information about your receiver and the synchronized transmitter. Warning List WARNING LIST stores the last 25 warnings. Cleaning Use a soft cloth moistened with water to clean the surfaces of the equipment. DMS 700 V1.00... -
Page 18: Troubleshooting
Problem / Remedy • Transmitter frequency band does not match the receiver’s frequency band. WRONG DEVICE • Error in transmitter ID data. If the problem occurs frequently, contact your AKG Service Center ERROR DEVICE • No infrared data detected. TIMEOUT... -
Page 19: Specifications
12. Specifications General – DMS 700 Digital Microphone System Carrier frequency range 548.1 to 864.9 MHz Switching bandwidth ≤ 155 MHz (country dependent) Audio bandwidth 35 – 20 000 Hz (±3B) T.H.D. ≤ 0.02 % Signal/noise ratio (A-weighted) Analog: XLR balanced typ. 115 dB(A) Digital: AES3 typ. - Page 20 Microphones · Headphones · Wireless Microphones · Wireless Headphones · Headsets · Electroacoustical Components AKG Acoustics GmbH Lemböckgasse 21–25, A-1230 Vienna/AUSTRIA, phone: (+43-1) 86654-0* E-mail: sales@akg.com For other products and distributors worldwide visit www.akg.com Specifications subject to change without notice Printed in China. 01/07/9100 U 1286...
