AKG DMS70 Specifications

DMS70
Indoor
Conference
Seminar, School
Live Sound / Club Music
• AES 128 bit Encryption
• Dynamic frequency selection
Patented D5 acoustics
•
• Studio audio quality
• 2 or 4-channel receiver
Bidirectional communication
•
• Auto power off
• OFDM Modulation
True uncompressed audio transmission
•
Digital Wireless Microphone System
DMS70 is a true uncompressed digital wireless system. The DMS70 operates with 24bit 48 kHz transmission to ensure
top-quality audio for every customer. The frequency is the 2.4GHz ISM range, a worldwide license-free frequency
range. DMS70 system offers exceptional studio-quality sound thanks to its uncompressed digital audio transmission
capability and it is designed for the most exacting applications where the highest level of wireless audio performance is
required. The bodypack (pocket) transmitter is especially recommended for guitar and bass because of its ideal
frequency response between 20 Hz to 20 kHz. DMS70 works convincing for live and club sound, conferences,
seminars, schools and universities – whenever quick and easy setup up is required.

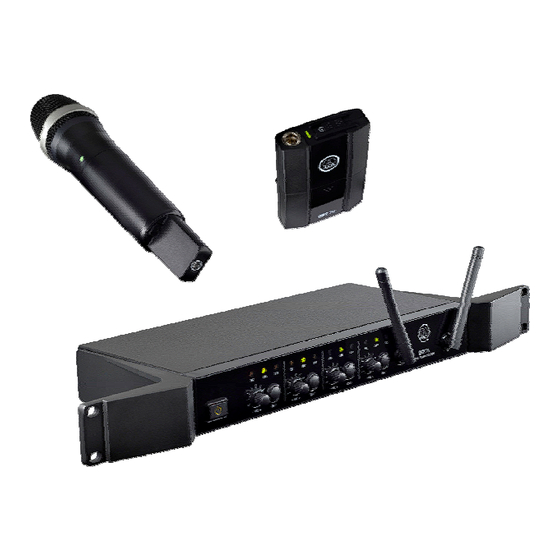

The entire DMS70 package includes: AKG's DSR70 or DSR70 Dual Receiver, DPT70 Digital Pocket Transmitter and
DHT70 Digital Handheld Transmitter, available with patented D5 acoustics or DHT70 Perception with standard dynamic
capsule.
The DSR70 includes a rack mount kit, power supply and other accessories. The customers can use and combine all
system devices according to their needs, as they are all fully compatible. All DMS70 devices are available separately or
in the following packages: DMS70 Q Vocal Set Dual, DMS70 Q Instrumental Set Dual, DMS70 Q Vocal/Instrumental
Set Dual, DMS70 D Vocal Set and DMS70 D Instrumental Set.
The Q sets include two digital transmitters and the D sets one digital transmitter.
All DMS70 devices feature bidirectional communication between the transmitter and receiver. The dynamic frequency
selection provides "intelligent" operation in the crowded 2,4 GHz band, enabled by digital diversity from receiver and
transmitter side. Its easy setup functions make the system simple to use even for less experienced operators, while the
AES 128-bit encryption ensures secure 2-way wireless communication. The DSR70 receiver can work with up to four
channels of audio in parallel which can be mixed down directly to its balanced XLR sum output. The DHT70 mic
employs AKG's patented dynamic D5 capsule to deliver outstanding sound quality with less feedback and handling
noise.
Based on the bidirectional communication DMS70 offers a number of additional new and unique features, including
power off from receiver side for all connected transmitters, battery status monitoring and out of range warning.
Digital Wireless Microphone System
