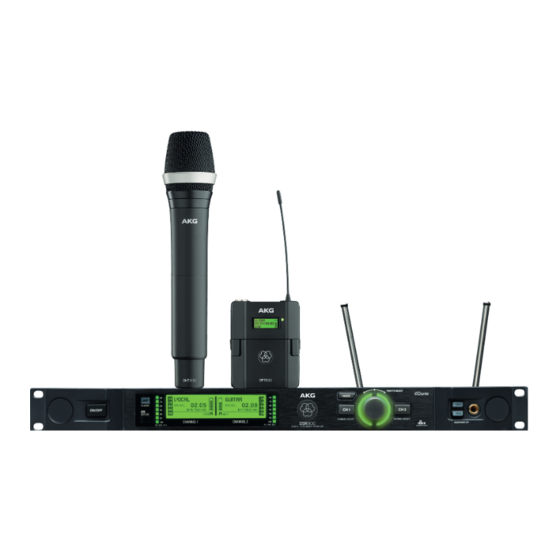

AKG DMS800 Service Manual

Hide thumbs Also See for DMS800:

Advertisement

Quick Links

Download this manual See also: Instructions for Using

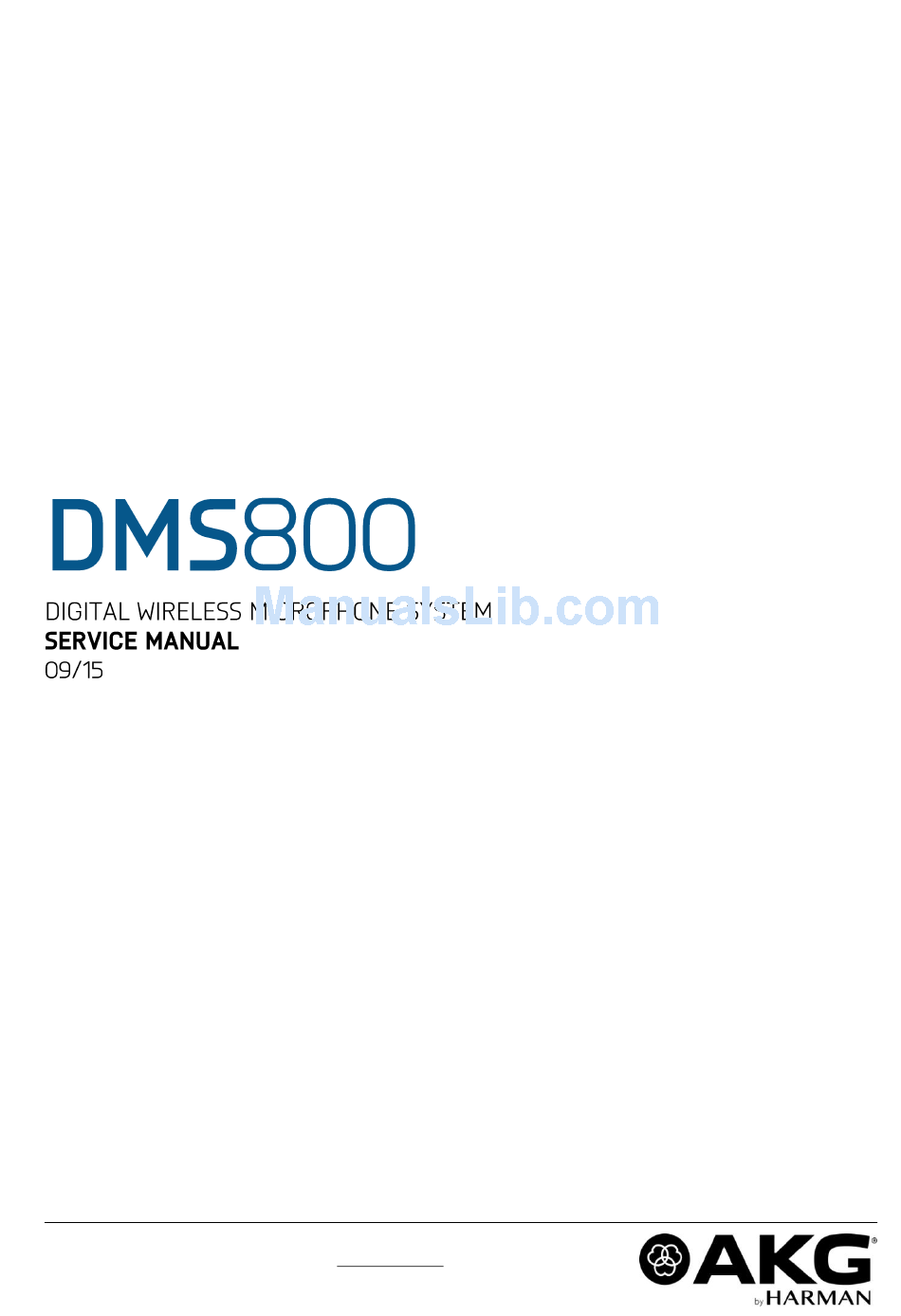

AKG CUSTOMER SERVICE DEPARTMENT / Laxenburger Straße 254 / 1230 Vienna, Austria
TEL: +43 1 866 54-0 / FAX: +43 1 866 54-1514 / service@akg.com / www.akg.com
1/14

Advertisement

loading
Need help?

Need help?

Do you have a question about the DMS800 and is the answer not in the manual?

Questions and answers

Related Manuals for AKG DMS800

Summary of Contents for AKG DMS800

  • Page 1 AKG CUSTOMER SERVICE DEPARTMENT / Laxenburger Straße 254 / 1230 Vienna, Austria TEL: +43 1 866 54-0 / FAX: +43 1 866 54-1514 / service@akg.com / www.akg.com 1/14...
  • Page 2 Table of contents: The complete DSM 800 family Die komplette DMS 800 Familie DHT 800 Digital handheld transmitter DHT 800 Digitaler Handsender DPT 800 Digital bodypack transmitter DPT 800 Digitaler Taschensender DSR 800 Digital stationary receiver DSR 800 Digital Empfänger CU 800 Charging unit CU 800 Ladegerät Last modification:...

  • Page 3: Mains Cable

    DSR 800 Digital stationary receiver DHT 800 Digital handheld transmitter DPT 800 Digital bodypack transmitter CU 800 Charging unit Frequency range, MHz BD 1 548.1 - 605.9, 614.1 - 697.9/50 mW BD 1 AU 548.1 - 605.9, 614.1 - 693.9/50 mW BD 1 NZ 548.1 - 605.9, 622.1 - 697.9/50 mW BD 1 UK...
  • Page 4 DHT 800 3381Z00… 4/14...
  • Page 5 DHT 800 Parts list / Stückliste Quantity Bezeichnung Part number Description Pos. Stück Bestellnummer Mainboard Bd1 5042953 Hauptprint Bd1 Mainboard Bd2 5042954 Hauptprint Bd2 Antenna Assy. BD1 5047203 Antennenprint BD1 Antenna Assy. BD2 5048106 Antennenprint BD2 Housing 5044764 Gehäuse Battery sleeve 5044765 Batteriehülse Shell 1...
  • Page 6 To dismantle the DHT800 proceed as follows: Remove logo plate and screw Remove antenna cap and sleeve Remove latch and display frame with glass and mute knob Remove screw and housing Remove shell 6/14...
  • Page 7 DPT 800 3382Z00… 19,20 Wiring / Verkabelung All charging contact solder joints: pre-solder related pads on pcb assemble pcb and frame assy. melt solder by heating up charging contacts with soldering tip (apply some pressure) All cables from pcb carrier assy. To be soldered directly on charging contacts like shown in this view 7/14...
  • Page 8 DPT 800 Parts list / Stückliste Part number Quantity Description Pos. Bezeichnung Bestellnummer Stück Housing top assy.* 5048282 Gehäuseoberteil kompl.* Housing bottom assy. 5048257 Gehäuseunterteil Battery cover assy. 5048283 Batteriedeckel Frame assy. 3156M12020 Rahmen kompl. LCD display 0050E00070 LCD Display Display holder 3156Z17010 Displayhalter...
  • Page 9 DSR 800 3380Z00… 18,19 15,16 9/14...

  • Page 10: Front Panel

    Frontpanel 10/14...
  • Page 11 DSR 800 Parts list / Stückliste Part number Quantity Description Pos. Bezeichnung Bestellnummer Stück Housing, upper 3155Z11020 Gehäuseoberteil Housing, bottom 3155M10020 Gehäuseunterteil Power supply unit 5048351 Netzteil IEC power socket 0017E15070 IEC Einbaustecker Isolation plate 3155Z45010 Isolationplatte Cable assy. 0110E03220 Kabel DSP Main board 5048392...
  • Page 12 Frequency band / Frequenzband Preset  BD1 NZ BD1 AU BD1 UK BD2 DE Front board 3155M03010 Device sticker 5048331 5048334 5048332 5048333 5048335 5048336 12/14...
  • Page 13 CU 800 3158Z00050 Wiring / Verkabelung 13/14...
  • Page 14 CU 800 Parts list / Stückliste Part number Quantity Description Pos. Bezeichnung Bestellnummer Stück Housing bottom 3158Z12010 Gehäuseunterteil DC-Jack socket 0016E03760 DC-Buchse Fan holder 3158Z23010 Lüfterhalter 0027E00710 Lüfter Insert part assy. 3158M11010 Einsteckteil Main board 3158M01010 Hauptprint Light guide 3158Z13010 Lichtleiter Housing top 3158Z10020...
