NetworkHD™ 100 Series AV Over IP H.264 Encoder/Decoder
NHD-100-TX v1 | NHD-100-RX v2
WyreStorm recommends reading through this document in its entirety to become familiar with the product's features prior to starting the installation
process.
IMPORTANT! Installation Requirements
WyreStorm Documentation and Firmware
Download the following items from the product page on WyreStorm.com.
They are essential for accurate configuration and use of the NetworkHD
system.
• Latest NetworkHD Firmware
• Management Suite v1.1.0 or Higher
• NetworkHD Installation Guide
• NetworkHD Switch Recommendations
• NetworkHD Switch Configuration Guides
• NetworkHD Switch Mapping Worksheet
• NetworkHD Touch Installation Guide
• NetworkHD Touch User Guide
• 3rd Party Control System Drivers
Installation and Configuration
• Verify that all NHD devices contain the latest version of firmware. This
will ensure that all devices are up to date and working at their highest
performance level.
In The Box

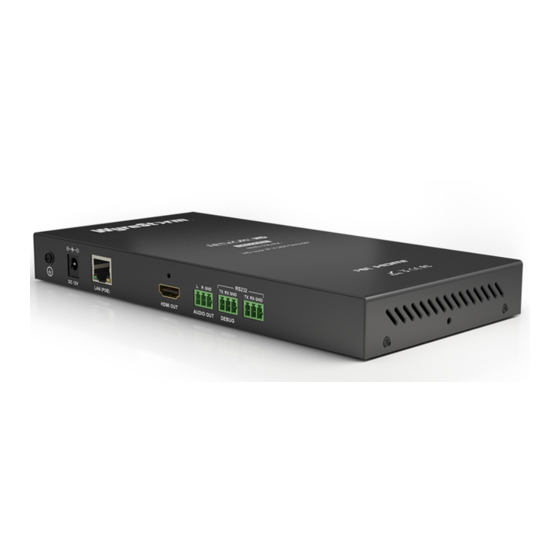

1x NHD-100-TX or NHD-100-RX
1x 12v DC 1A. Power Supply
3x 3-pin Phoenix Connector
Basic Wiring Diagram
Personal Computer
NHD-100-TX
Wifi Router
iPad with
NetworkHD Touch
Key
Digital Video/DVI/HDMI
Ethernet
Copyright © 2017 WyreStorm Technologies |
NHD-100-TX v1 | NHD-100-RX v2 Quickstart Guide | 170630
Satellite Box
NHD-100-TX
NHD-100-RX
wyrestorm.com
• NetworkHD uses AutoIP to assign IP addresses in the range of
169.254.x.x out of the box. Set the PC being used for configuration to an
address in this range prior to starting the configuration process.
• WyreStorm recommends the use of the NHD-000-RACK for installations
containing multiple NetworkHD devices. Use of this product provides an
enclosure to mount and secure all NetworkHD devices in a rack.
Network Switch Requirements
• WyreStorm highly recommends the use of switches listed in the
NetworkHD Switch Recommendation
verified by WyreStorm to meet the requirements of a NetworkHD system.
• NetworkHD requires a Layer 2 managed switch network with support for
Multicast & IGMP snooping enabled. Ensure that the switch being used
supports these features and that they are configured prior to connecting
the NetworkHD system.
• Configure all network switches to the exact specifications contained in
the WyreStorm Switch Configurations Guides prior to connecting the
NetworkHD system. This will ensure proper operation from startup.
2x Mounting Ears
1x Quickstart Guide (This Document)
Satellite Box
NHD-100-TX
NHD-000-CTL
NHD-100-RX
UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)
1 of 4
Quickstart Guide
Guide. These switches have been
Blu-ray Player
NHD-100-TX
Control System
NHD-100-RX
