Full HD IP H.264 Low Bandwidth Streaming Encoder suitable
for decoding by IPTV
NHD-230-TX
WyreStorm recommends reading through this document in its entirety to become familiar with the product's features prior to starting the installation
process.
In the Box
1x NHD-230-TX
1x 12v DC 1A Power Supply (US, UK, EU)
2x Mounting Ears
1x Quick Start Guide (This Document)

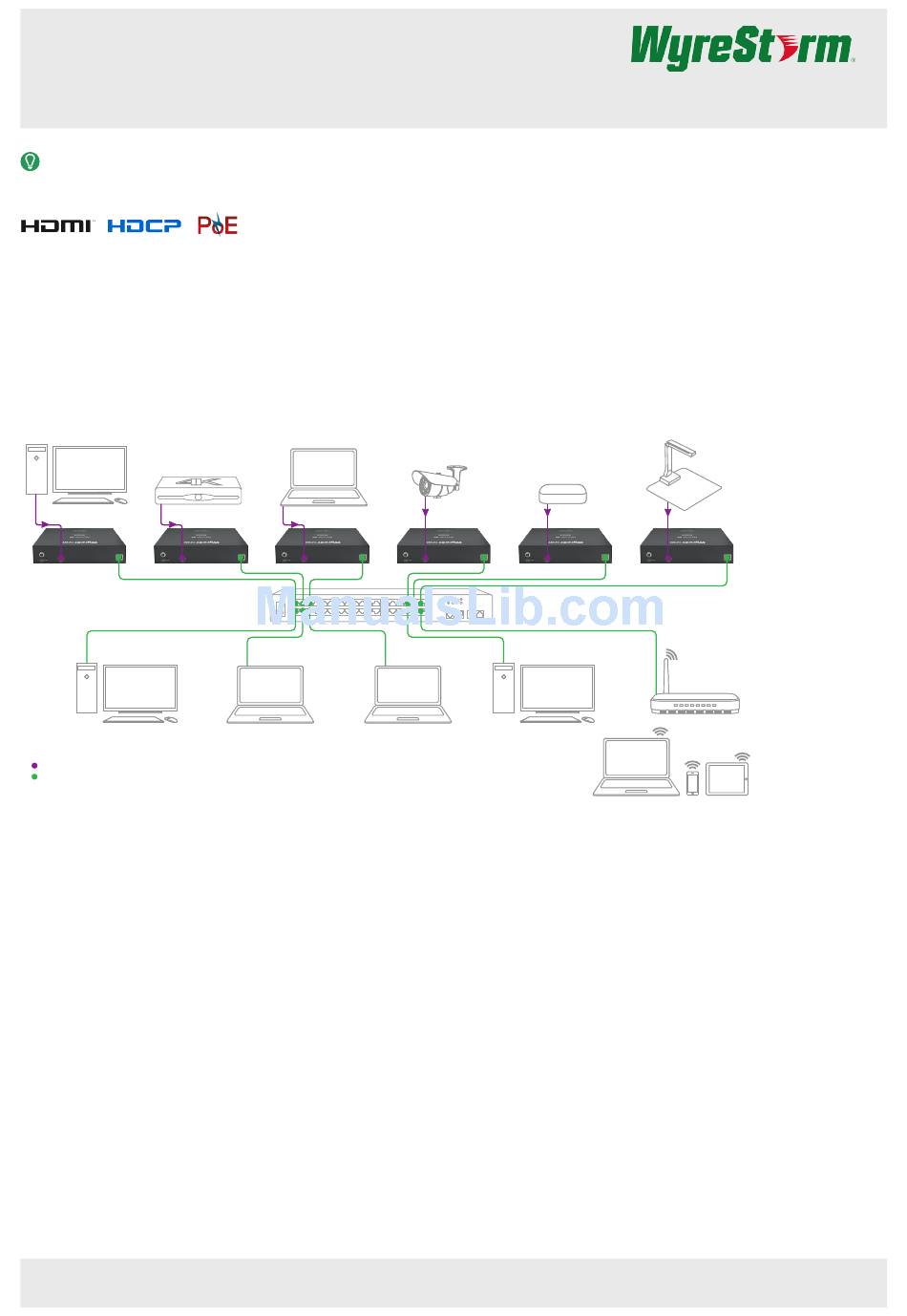

Basic Wiring Diagram
Personal Computer
UHD Sattellite Box
NHD-230-TX
NHD-230-TX
Personal Computer
Key
Digital HDMI
Ethernet
Copyright © 2017 WyreStorm Technologies |
NHD-230-TX Quickstart Guide | 170908
H.264 AAC
Laptop
Security Camera
NHD-230-TX
Laptop
Laptop
wyrestorm.com
Additional Information
More information and required software can be found within the Download
section of the product page on wyrestorm.com.
• NetworkHD Switch Recommendations
• NetworkHD Switch Mapping Worksheet
• NetworkHD Switch Configuration Guides
Media Player
NHD-230-TX
NHD-230-TX
Personal Computer
Laptop
UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)
1 of 4
Quickstart Guide
Document Camera
NHD-230-TX
Wifi Router
Phone
iPad with
NetworkHD Touch
