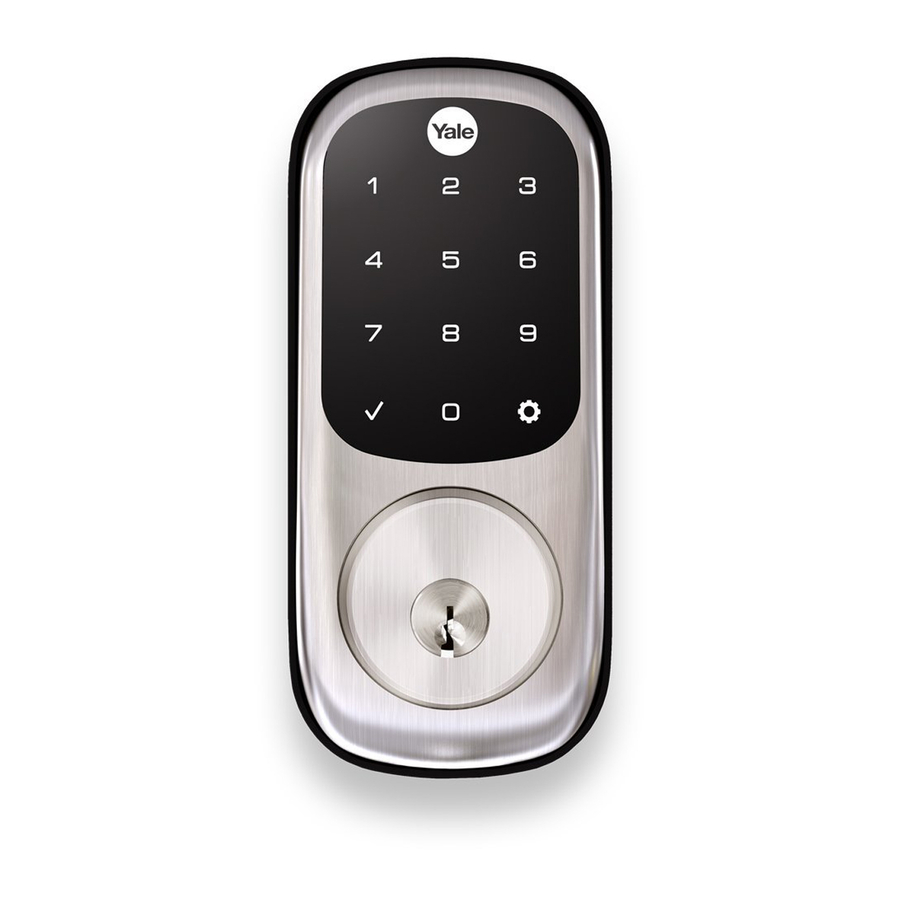

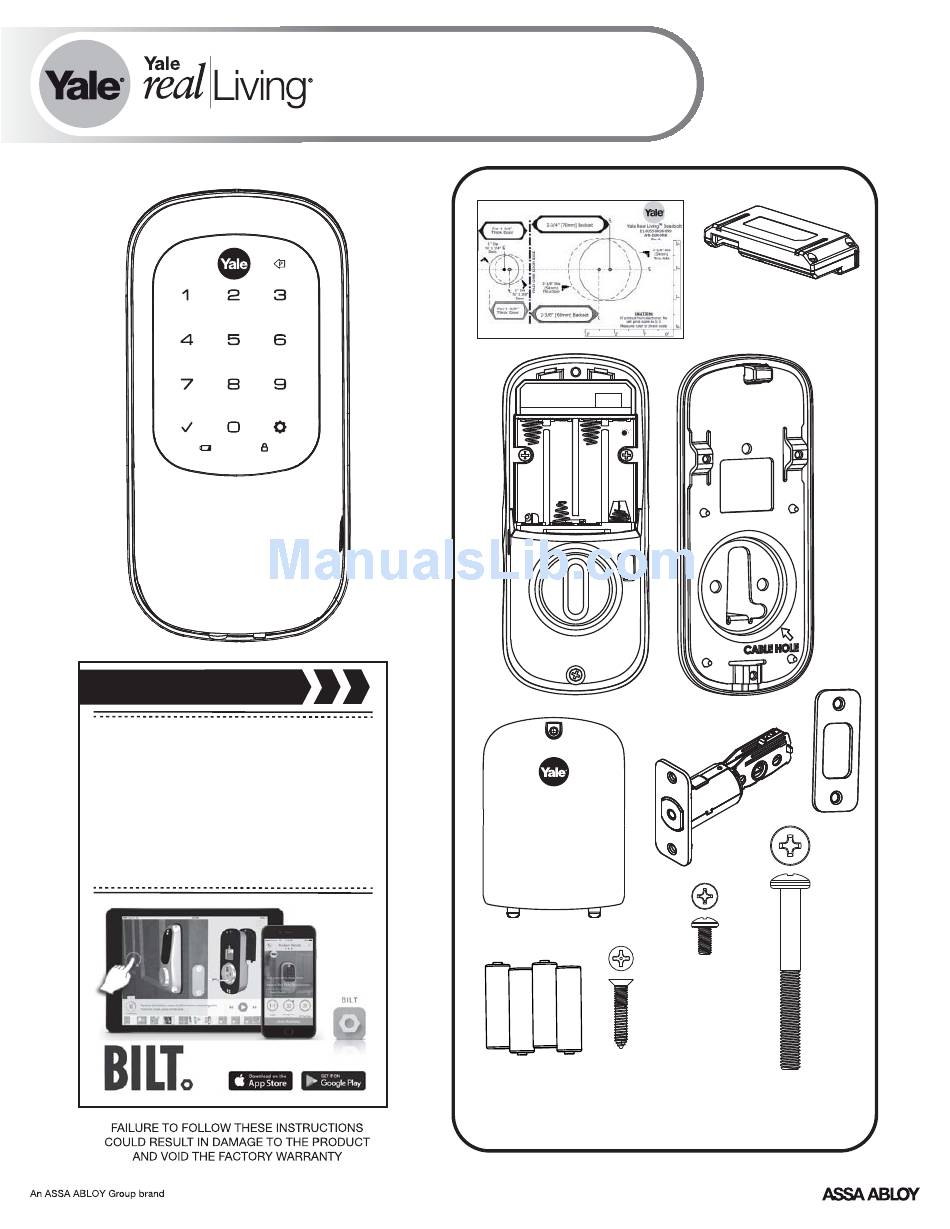

Yale Real Living Assure Lock
®
Key Free Touchscreen Deadbolt
Installation and Programming Instructions
(
YRD
246/
YRD
446)
Optional
Network Module
Before you begin
DOWNLOAD
THE BILT APP
for step-by-step installation
instructions & to register
your product
x3
#8-32 x 5/16"
Machine screws
x4
x2
#7 wood & #8-32
machine x 20mm
M6x55mm
Long through bolt
Combination screws
1
P/N
YRL KFTSINSTL FUL
-
-
Rev E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the YRD246 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Yale YRD246

  • Page 1 Yale Real Living Assure Lock ® ™ Key Free Touchscreen Deadbolt Installation and Programming Instructions 246/ 446) Optional Network Module Before you begin DOWNLOAD THE BILT APP for step-by-step installation instructions & to register your product #8-32 x 5/16" Machine screws #7 wood &...
  • Page 2 Preparing Door YRL KFTSINSTL FUL Rev E...
  • Page 3 Installing Latch & Strike Plate 2-3/8" position d faut 2-3/4" position optional Pull Press Bolt must be in retracted (unlocked) position. Note horizontal orientation of mechanism. YRL KFTSINSTL FUL Rev E...
  • Page 4 Installing Touchscreen Escutcheon Inside of Door Outside of Door Bolt must be in retracted (unlocked) position. Note horizontal orientation of mechanism. YRL KFTSINSTL FUL Rev E...
  • Page 5 Installing Interior Mounting Plate Loosen screw to remove cover. YRL KFTSINSTL FUL Rev E...
  • Page 6 Attaching the Cable Assembly YRL KFTSINSTL FUL Rev E...
  • Page 7 Installing Interior Escutcheon YRL KFTSINSTL FUL Rev E...
  • Page 8: Testing Operation

    Testing Operation Bolt must be in retracted (unlocked) position before installing batteries. YRL KFTSINSTL FUL Rev E...
  • Page 9 Installing Batteries/Handing the Lock "Welcome to Yale Real Living." Lock automatically adjusts for proper handing. Installing Optional Network Module Batteries must be removed prior to removing and/or inserting network module. YRL KFTSINSTL FUL Rev E...
  • Page 10: Installing Cover

    Installing Cover Tighten screw to replace cover. Congratulations, you've installed the Yale Real Living Assure Lock ® ™ Key Free Touchscreen Deadbolt ( 246/ 446)! Continue with Programming Instructions to customize your product. YRL KFTSINSTL FUL Rev E...
  • Page 11: Programming Instructions

    Programming Instructions Exterior Escutcheon "P" Key (Return to Previous) Interior Escutcheon Low Battery Indicator Lockout Mode Privacy Mode Button Speaker Failsafe 9 volt Battery Connection (Use Alkaline battery) Lock Activation Master Code must be created before any further programming. Max User Codes = 250 with Network Module. 246 Max User Codes = 25 without.
  • Page 12 Creating Master Code Creating a Master Code must be performed upon installation or after resetting the lock to factory default. Programming and use of lock is not possible until this step has been successfully completed. "Register Master Code. Press the gear key to continue."...
  • Page 13: Creating User

    Creating User Codes Master code must be created first. *Max User Codes = 250 with Network Module. 246 Max User Codes = 25 without. YRD446 Max User Codes = 12 without. "Menu Mode, enter number, press the gear key Enter Master to continue."...
  • Page 14: Code Chart

    Unlocking Door with Code Enter Code Press Code Chart Duplicate if necessary PIN Code Management (With Network Module - Up to 250 Users) User Type User Name User # PIN Code Master User ___ User ___ User ___ User ___ User ___ User ___ User ___...
  • Page 15: Factory Settings

    Resetting Lock to Factory Default When lock is reset to factory defaults all user codes (including the Master code*) are deleted and all programming features are reset to original default settings (see below). 1. Remove the battery cover and batteries. 2.
  • Page 16 Definitions All Code Lockout Mode: This feature is enabled by the Master code. When enabled, it restricts all user (except Master) code access. When attempting to enter a code while the unit is in Lockout, the locked padlock will appear on the screen. Automatic Re-lock Time: After a successful code entry and the unit unlocks, it will automatically re-lock after thirty (30) seconds.
  • Page 17 Feature Programming Through Menu Mode Using Master code* 1. Touch screen with back of hand or palm to activate. 2. Enter 4-8 digit master code* followed by key. Lock Response: "Menu mode, enter number, press key to continue." 3. Enter digit corresponding to the function to be performed followed by the key.
  • Page 18: Programming Troubleshooting

    Programming Troubleshooting Symptom Suggested Action Touchscreen becomes active when pressed w/whole hand. • Use a larger area of the hand or fingers and verify contact Lock does not respond – with at least 3 areas. door is open and • If touchscreen numbers are visible, check to see if they accessible.
  • Page 19: Hardware Troubleshooting

    (9-Volt battery jumper, low battery warnings), it is still possible for a lockout situation to occur. Because this product does not ® have a mechanical override (a key), Yale recommends to use this product in an environment where there are additional entry points into the dwelling.
  • Page 20 ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited. YALE, with its unique global reach and range of products, is the world's favorite lock – the preferred solution for securing your home, family and personal belongings.

This manual is also suitable for:

Yrd446
