Quick Start Guide
2. Repeat Step 1 for the right slide rail assembly.
3. Verify that the rails are level and straight.
Continue with "Install the Unit in the Rack."

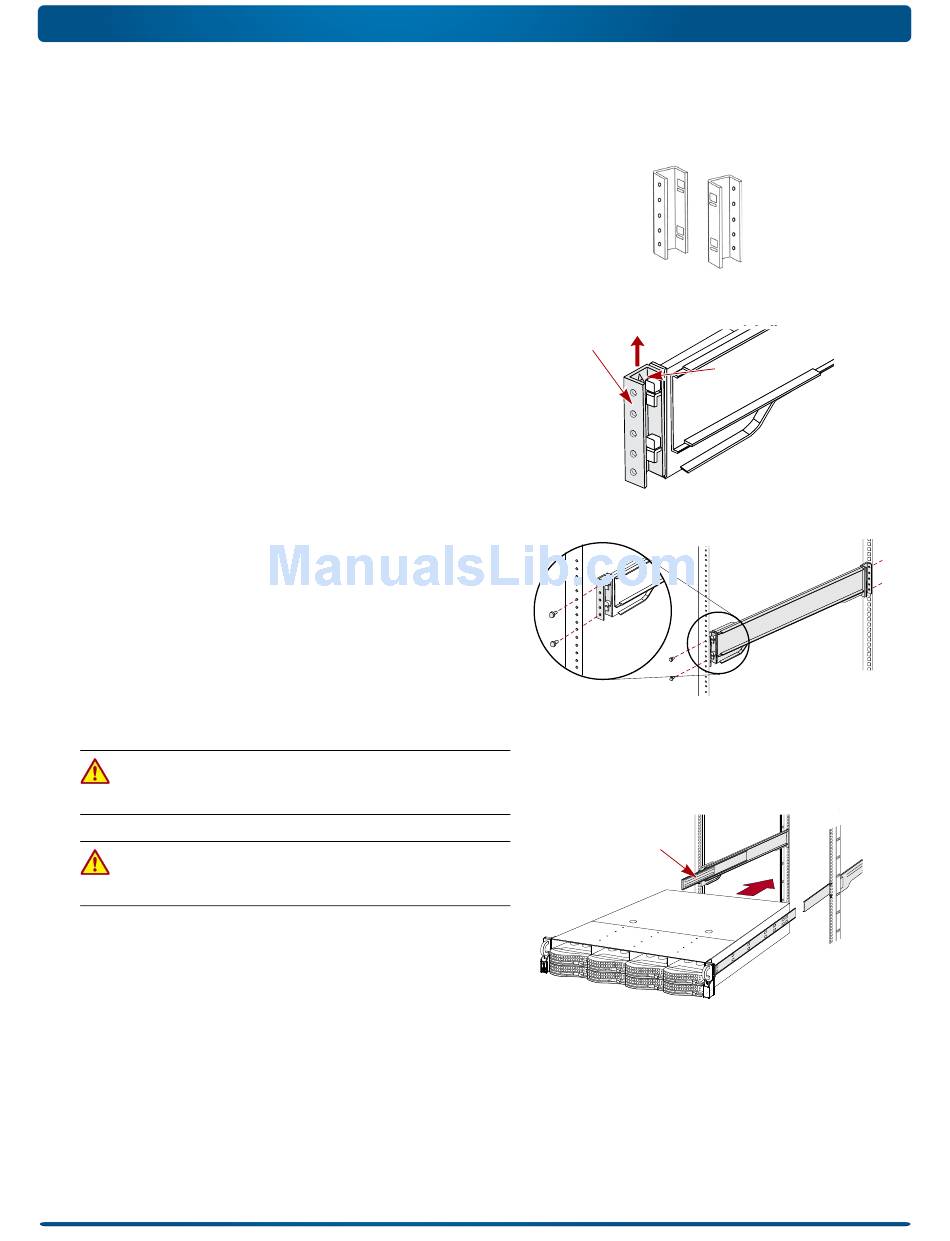

Round-Holed Rack Installation
Before installing the rails onto an unthreaded round-holed rack,
the round-hole rail kit adaptors must be installed on the ends of
the outer rails.
1. Attach the adaptors to both ends of the rail:
a. Position the adaptor stamped "A" at the front of the left
outer rail (end with the graphic label).
NOTE: Make sure the stamp is at the top and the square adaptor
holes are aligned with the hooks on the outer rail.
b. Press the adaptor onto the hooks and slide it upwards
until it locks (clicks).
NOTE: The rail buttons will snap into the square holes.
c. Repeat Steps a–b
2. Facing the rack, position the left rail in the rack, aligning
the adaptor holes with the front left rack holes being used.
3. Using the screws from the kit, secure the front of the rail to
the rack.
4. Slide the rear rail segment rearward until the rear
adaptor holes are in line with holes being used.
5. Using the screws from the kit, secure the rear of the rail to
the rack.
6. Repeat Steps 1–5 for the right rail.
7. Verify that the rails are level and straight.
Continue the installation with
Install the Unit in the Rack
WARNING: It is recommended that a mechanical lifter (or at
least two people) be used during rack installation or removal to
prevent injury.
AVERTISSEMENT: pour éviter toute blessure il est recommande
qu'un monte-charge (ou deux personnes au moins) soit utilisé
lors de l'installation ou de l'enlèvement du support.
1. At the front, extend the middle rail members until they lock
(click).
2. Confirm that the ball-bearing shuttles are at the front.
3. Using a mechanical lifter or two people, insert the server into
the rack rails.
Lift the server to its install height and engage the inner
members on the server with the middle members
protruding from the rack, and slide the server into the rack
until it stops.
10400287-002 03/2011
for the left rear adaptor (stamped "B").
"Install the Unit in the Rack."
©2010-11 Overland Storage, Inc.
A
(Front)
Adaptor
"A" Stamp
Bearing Shuttle
B
(Rear)
