888-45-291-W-01 rev.G • 12/15

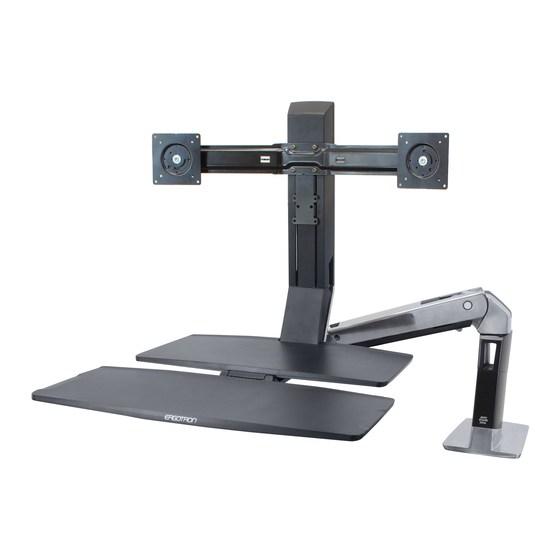

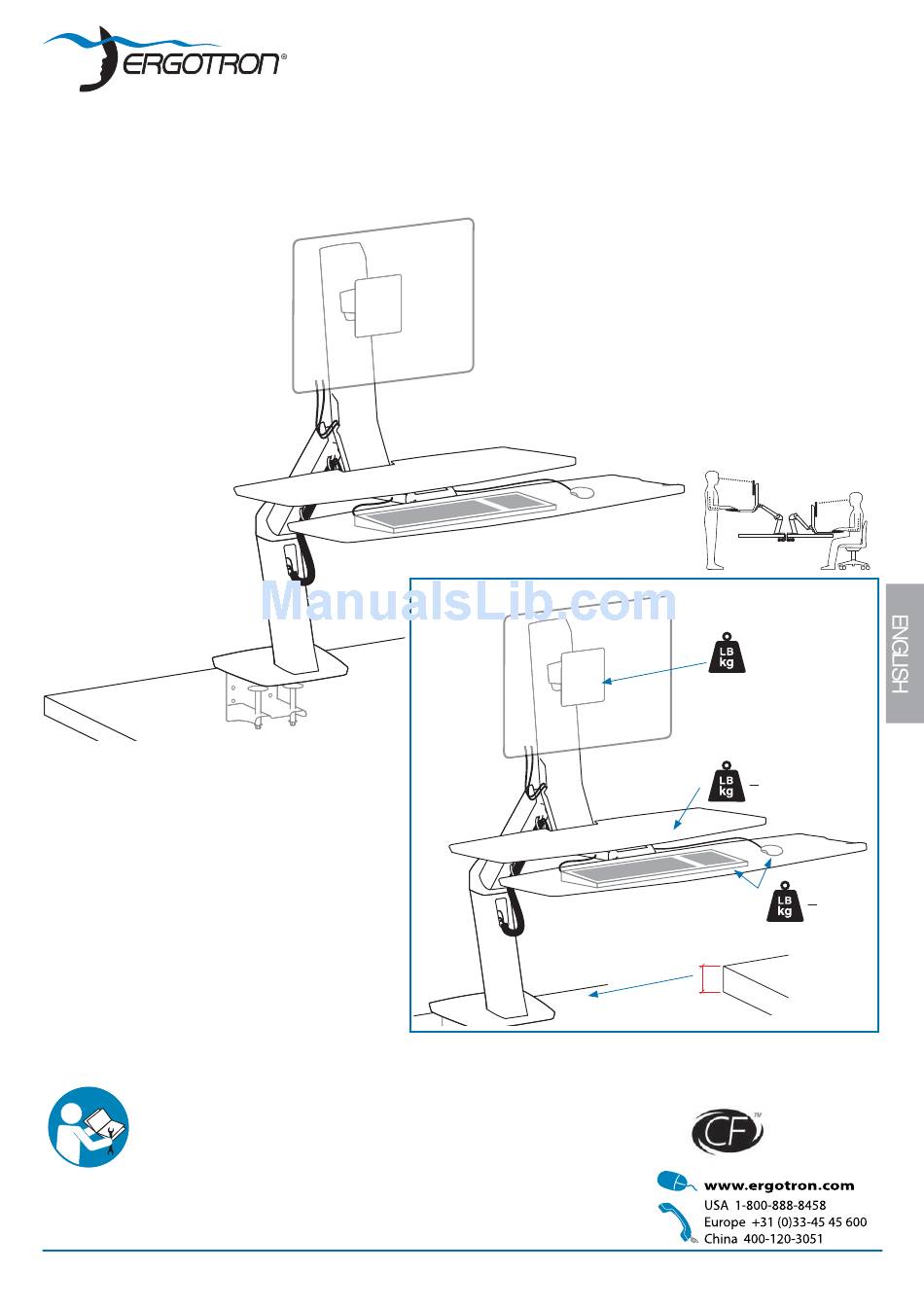

WorkFit-A, Single LCD Mount, LD
User's Guide
5 - 15 lbs
A
(2.3-6.8 kg)
< 5 lbs
B
(2.27 kg)
C
0.78"-2.56" (20-65mm)
< 2 lbs
(0.9 kg)
Includes
Constant Force™
Technology
1 of 13
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Ergotron WorkFit-A
Summary of Contents for Ergotron WorkFit-A
- Page 1 (2.3-6.8 kg) < 5 lbs (2.27 kg) < 2 lbs (0.9 kg) 0.78"-2.56" (20-65mm) For the latest User Installation Guide please visit: www.ergotron.com User's Guide - English Guía del usuario - Español Includes Manuel de l’utilisateur - Français Constant Force™...
- Page 2 Set Your Workstation to Work For YOU! Learn more about ergonomic computer use at: www.computingcomfort.org Height Position top of screen slightly below eye level. To Reduce Fatigue Position keyboard at about elbow height with wrists fl at. Breathe - Breathe deeply through your nose. Distance Position screen an arm's length from face—at least 20”...
-
Page 3: Features And Specifications
Features & Specifi cations 20˚ 5" (127 mm) 10˚ 90˚ 20" (508 mm) 180˚ M5 x 8mm M4 x 10mm M3 x 6mm M4 x 10mm M4x16mm 4 mm M6 x 35mm M4x12mm 1/4” 1/4" 888-45-291-W-01 rev.G • 12/15 3 of 13... - Page 4 Clamp confi gurations for diff erent desk thickness 0.78"-1.78" (20-45mm) 1.70"-2.56" (43-65mm) 4 mm Warning: Because mounting surface materials can vary widely, it is imperative that you make sure mounting surface is strong enough to handle mounted product and equipment. Mount arm to desk.
- Page 5 4 mm M6 x 35mm M4x16mm 888-45-291-W-01 rev.G • 12/15 5 of 13...
- Page 6 4 mm M5 x 8mm M3 x 6mm 0° M4 x 10mm M4 x 10mm 6 of 13 888-45-291-W-01 rev.G • 12/15...
- Page 7 NOTE: Leave enough slack in cable to allow full range of motion. Caution: To avoid the potential to pinch cables it is important to follow the cable routing instructions in this manual. Failure to follow these instructions may result in equipment damage or personal injury. Caution: DO NOT route cables on top of arm.
- Page 8 Adjustment Step Important! You will need to adjust this product after installation is complete. Make sure all your equipment is properly installed on the product before attempting adjustments. This product should move smoothly and easily through the full range of motion and stay where you set it. If movements are too easy or diffi cult or if product does not stay in desired positions, follow the adjustment instructions to create smooth and easy movements.
- Page 9 1/4” Increase Lift Strength 1/4" If the mounted weight is too heavy or this product does not stay up when raised, then you'll need to increase Lift Strength: Decrease Lift Strength If the mounted weight is too light or this product does not stay down when lowered, then you'll need to decrease Lift Strength: Increase Lift Strength...
- Page 10 1/4” 1/4" Increase Friction If this product moves too easily from side-to-side, then you'll need to increase friction: Decrease Friction If this product is too diffi cult to move from side-to-side, then you'll need to decrease friction: Increase Friction If this product moves too easily from side-to-side, then you'll need to increase friction: Decrease Friction...
- Page 11 1/4” 1/4" Increase Friction If this product moves too easily, then you'll need to increase friction: Decrease Friction If this product is too diffi cult to move, then you'll need to decrease friction: 4 mm 888-45-291-W-01 rev.G • 12/15 11 of 13...
- Page 12 Angle Setting Adjustment Loosen these two screws. 4 mm Loosen or tighten this bolt to adjust tilt to desired angle. Loosen to tilt up. Tighten to tilt down. 1/4" 1/4” After desired tilt is achieved, retighten these two screws to secure. WARNING! Screws must be tightened to keep product secure.
- Page 13 Use pads if needed to fi ll space between desk and bottom of product to improve contact when in full down position. For Warranty visit: www.ergotron.com/warranty For Service visit: www.ergotron.com For local customer care phone numbers visit: http://contact.ergotron.com © 2015 Ergotron, Inc. All rights reserved. 888-45-291-W-01 rev.G • 12/15...
