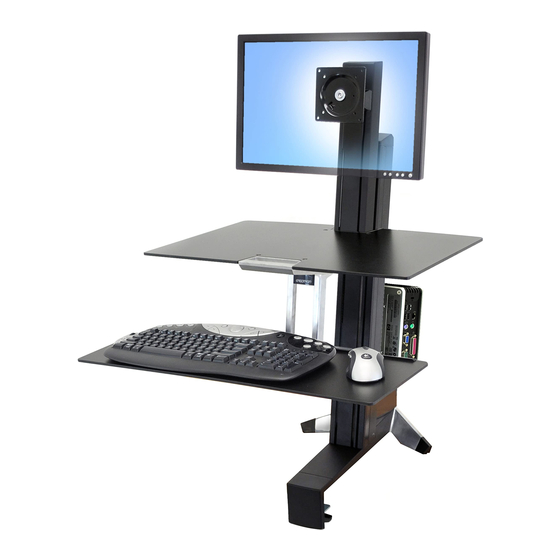

WorkFit Single LD Monitor Kit
B
C
1x
3mm
6x
2x
4x
M6 x 25mm
14mm
TM
for WorkFit-T and WorkFit-PD
D
4x
M4 x 7mm
4x
M4 x 10mm
4mm
1x
info@sit-stand.com
0333 220 0375
User's Guide 1/8
E
1x
M3 x 6mm
1x
M5 x 8mm
2x
M6 x 30mm
2x
M6 x 35mm

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WorkFit Single LD Monitor Kit and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ergotron WorkFit Single LD Monitor Kit

Summary of Contents for Ergotron WorkFit Single LD Monitor Kit

  • Page 1 User’s Guide 1/8 WorkFit Single LD Monitor Kit for WorkFit-T and WorkFit-PD M3 x 6mm M4 x 7mm M5 x 8mm M4 x 10mm M6 x 30mm M6 x 35mm M6 x 25mm 14mm info@sit-stand.com 0333 220 0375...
  • Page 2 User’s Guide 2/8 Hazard Symbols Symbol Signal Word Level of Hazard Review A NOTE indicates important information that helps you NOTE make better use of this product. These symbols alert users of a safety condi- tion that demands attention. All users should A CAUTION indicates either potential damage to CAUTION hardware or loss of data and tells you how to avoid the...
  • Page 3 User’s Guide 3/8 20˚ 5" (127 mm) 10˚ WorkFit-T WorkFit-PD 6 - 16 lbs 6 - 16 lbs (2.7-7.3 kg) (2.7-7.3 kg) < 5 lbs (2.25 kg) < 5 lbs < 2 lbs (2.25 kg) (0.9 kg) < 31 lbs (14 kg) <...
  • Page 4 User’s Guide 4/8 WorkFit-PD WorkFit-T M6 x 35mm M6 x 25mm M6 x 30mm info@sit-stand.com 0333 220 0375...
  • Page 5 User’s Guide 5/8 M3 x 6mm 0° M4 x 10mm M4 x 7mm M5 x 8mm info@sit-stand.com 0333 220 0375...
  • Page 6 User’s Guide 6/8 Adjustment Step Important! You will need to adjust this product after installation is complete. Make sure all your equipment is properly installed on the product before attempting adjustments. This product should move smoothly and easily through the full range of motion and stay where you set it. If movements are too easy or diffi cult or if product does not stay in desired positions, follow the adjustment instructions to create smooth and easy movements.
  • Page 7 User’s Guide 7/8 WorkFit-PD only Increase Lift Strength If the mounted weight is too heavy or this product does not stay up when raised, then you'll need to increase 14mm Lift Strength: Decrease Lift Strength If the mounted weight is too light or this product does not stay down when lowered, then you'll need to decrease Lift Strength:...
  • Page 8 User’s Guide 8/8 Set Your Workstation to Work For YOU! Learn more about ergonomic computer use at: www.computingcomfort.org Height Position top of screen slightly below eye level. Position keyboard at about elbow height with wrists fl at. Distance Position screen an arm's length from face—at least 20” (508mm). Position keyboard close enough to create a 90˚...
