Summary of Contents for Ergotron WorkFit B

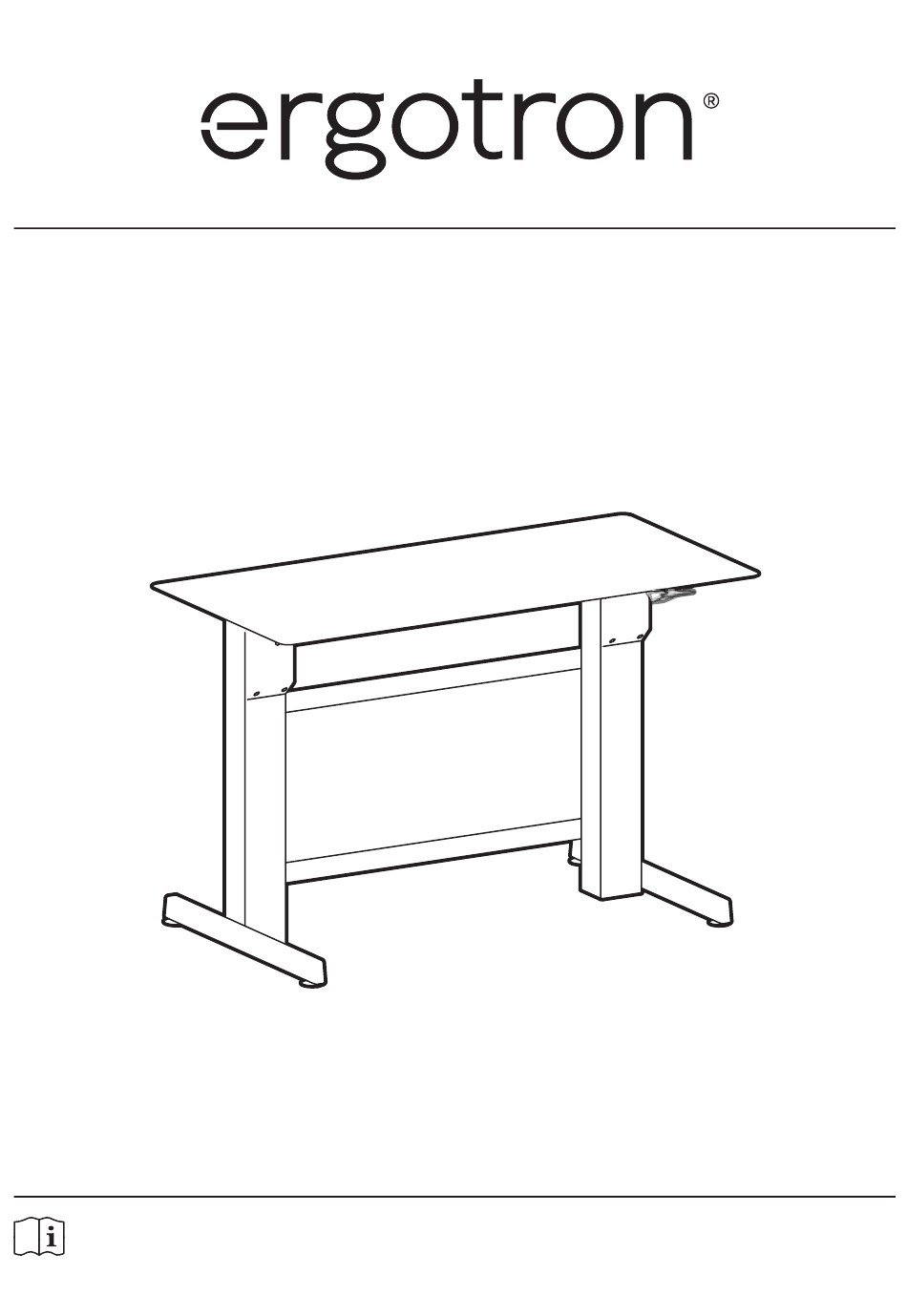

  • Page 1 User's Guide WorkFit B, HD ™ English For the latest User Installation Guide please visit: www.ergotron.com English, Español, Français, Deutsch, Nederlands, Italiano, Svenska, 日本語, 汉语 www.ergotron.com | USA: 1-800-888-8458 Europe: +31 (0)33-45 45 600 China: 400-120-3051 Japan: japansupport@ergotron.com 1 of 19...
  • Page 2: Hazard Symbols Review

    Failure to heed this warning may result in serious personal injury or property damage! For More information and instructions visit www.ergotron.com or contact Ergotron Customer Care at 1-800-888-8458 826-901-00 Refer to Appendix A at the end of this manual...
  • Page 3 Safety WARNING! Stop screws are pre-installed in this product to secure it in the compressed position during shipping and installation. DO NOT REMOVE THESE SCREWS UNTIL INSTRUCTED TO DO SO IN THESE INSTRUCTIONS. Make sure these screws are in place before starting installation. Failure to follow these instructions may cause lift engine to expand rapidly and may result in equipment damage and or personal injury.
  • Page 4 Safety Important! You will need to adjust this product after installation is complete. Make sure all your equipment is properly installed on the product before attempting adjustments. This product should move smoothly and easily through the full range of motion and stay where you set it. If movements are too easy or diffi cult or if product does not stay in desired positions, follow the adjustment instructions to create smooth and easy movements.
  • Page 5 Features & Specifi cations 22.5-88 lbs (10.2-40 kg)* 0.80”-1.75”* (20-44 mm) 41"-72" * 23.5”-30.5”* Important! You will need to adjust this product after installation is (1041-1829 mm) (597-775 mm) complete. Make sure all your equipment is properly installed on the product before attempting adjustments.
  • Page 6: Tools Needed

    Components #12-14 x 5/8” M5 x 6mm ST3.9 x 16mm M2.9 x 8mm 4.25” (108 mm) 4.25” (108 mm) WORKSURFACE TEMPLATE FOR WORKFIT-B, HD 3.75” (95 mm) 3.75” (95 mm) 3.25” (83 mm) 3.25” (83 mm) Align REAR Edge of Worksurface X distance 2.75”...
  • Page 7: Setup Steps

    Set-up Steps Place the worksurface on a clean fl oor with the top side facing down. Center Template Side-to-Side on worksurface. Align REAR Edge of Worksurface X distance from the back of the Base Brackets. See table for value of X based on the depth of your worksurface. Depth of Your Worksurface Depth of...
  • Page 8 Set-up Steps Using the specifi ed drill bit, drill the 17 holes for base. #12, Ø 0.19” (4.8mm) Drill holes 0.375" (9.5 mm) deep. TIP: To ensure proper depth, place a piece of tape on the drill bit 0.375” (9.5 mm) from the tip.
  • Page 9 Front Edge of Worksurface Set-up Steps Place the worksurface on a clean fl oor with the top side facing down. Carefully position the leg with the hand brake on the right end of the worksurface. Place the other leg on the left end. Rear Edge of Worksurface NOTE: The brake cable is attached to both legs.
  • Page 10 WARNING Set-up Steps Keep Brake Cables Away from Sync Rod and Crossbars During Installation! Failure to keep the brake cables away from sync rod and crossbars may restrict lift Set the left leg (without motion and may cause equipment damage or personal injury! Refer to instruction manual for more information.
  • Page 11 Set-up Steps If your brake release handle is not aligned with the front edge of your worksurface and you would like it to be, follow these instructions to relocate the brake release handle. Relocate brake release handle along front edge of worksurface and next to the inside of the leg only.
  • Page 12 Set-up Steps Capture the brake cable in the cable clip as M2.9 x 8mm illustrated, then use a Phillips screwdriver to attach the cable clips to bottom of work surface with the provided M2.9 x 8 mm screws. Using the 2 provided cable ties, attach brake cable to the legs leaving as much slack in cable as possible between the cable tie and the leg to allow desk top to raise up unrestricted.
  • Page 13 Set-up Steps Set the desk upright onto its legs. CAUTION! LIFT HAZARD! Two persons are required for this step. Failure to follow this warning may result in equipment damage and or personal injury. Adjust the riser on each leg and check with a level to make sure the work surface is even.
  • Page 14 Set-up Steps Remove the 4 brake stop screws before installing equipment. Remove the 2 stop screws from the legs then the 2 stop screws from the brake to allow the worksurface to raise and lower. IMPORTANT! Save these stop screws and instructions. Install stop screws when shipping or storing this product.
  • Page 15 Refer to installation manual for instructions on installing stop screws. Failure to heed this warning may result in serious personal injury or property damage! For More information and instructions visit www.ergotron.com or contact Ergotron Customer Care at 1-800-888-8458 826-901-00 15 of 19...
  • Page 16 Adjustment Step Release the hand brake (on the right leg) and move the worksurface up to highest level. Push in the cover located behind each leg to access the adjustment point. NOTE: The covers on the legs will not open unless the worksurface has been lifted to it’s full height.
  • Page 17: Appendix A - Minimize Lift Tension

    APPENDIX A - Minimize Lift Tension WARNING. Before removing mounted equipment (monitor, arm, stand CPU, etc.), from desk, or to prepare for shipping or storing the desk it is extremely important to minimize the lift tension. Failure to install these instructions may cause lift engine to expand rapidly and may result in equipment damage and or personal injury.
  • Page 18: Appendix B - Inserting Stop Screws

    APPENDIX B - Inserting Stop Screws WARNING. Before shipping or storing the desk, or in cases where the desk is placed on it’s back or side*, it is extremely important that the 4 stop screws be re-inserted. Failure to follow these instructions may cause lift engine to expand rapidly and may result in equipment damage and or personal injury.
  • Page 19 Learn more about ergonomic computer use at: www.ergotron.com/ergonomics For Warranty visit: www.ergotron.com/warranty For Service visit: www.ergotron.com For local customer care phone numbers visit: http://contact.ergotron.com www.ergotron.com | USA: 1-800-888-8458 Europe: +31 (0)33-45 45 600 China: 400-120-3051 Japan: japansupport@ergotron.com © 2016 Ergotron, Inc. All rights reserved. WorkFit is a registered trademark of Ergotron, Inc.
