Bracket

QuickFix bracket

FlexFix bracket

O P E R A T I N G I N S T R U C T I O N S | deTec2 Core

Part

BEF-3SHABPKU2, 2 ea. QuickFix bracket (included with delivery)

BEF-1SHABPKU4, 4 ea. FlexFix bracket

BEF-1SHAABBKU2, FlexFix bracket kit (2 x FlexFix bracket, 4 sliding

nuts, 4 screws, 4 washers)

BEF-1SHABP004, replacement bracket (kit with 4 brackets)

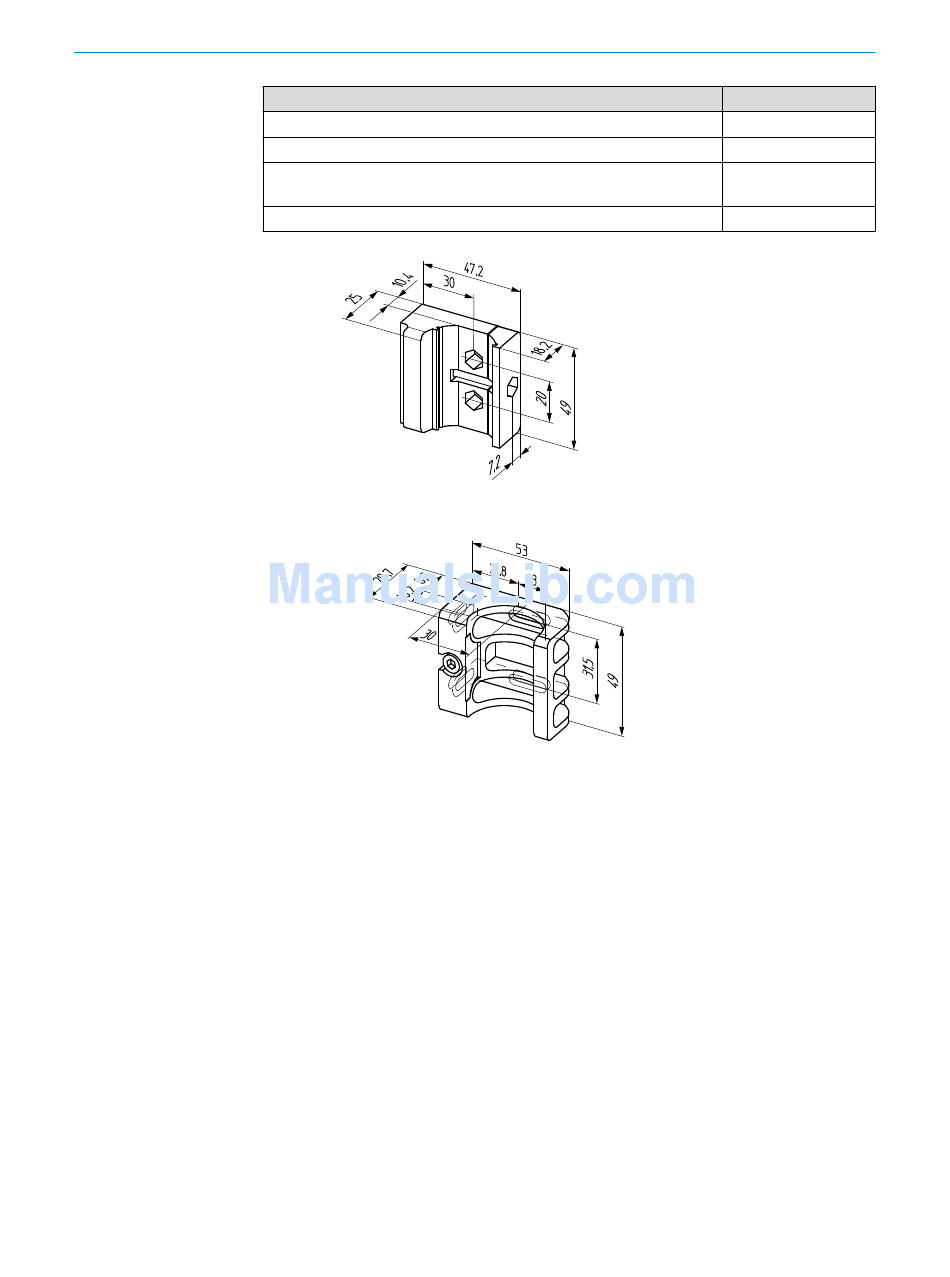

Figure 32: Dimensional drawing of the QuickFix bracket (2066048)

Figure 33: Dimensional drawing of the FlexFix bracket (2066614)

Part number

2066048

2066614

2073543

2071021

8014276/2014-02-18 | SICK
