PRODUCT DESCRIPTION
Status indicators of the
receiver
12 O P E R A T I N G I N S T R U C T I O N S | deTec2 Core
Item LED color
1 Yellow
2 Red
For a complete overview of the fault indications:
1 2 3 4
ERR
OSSD
Resolution 14 mm

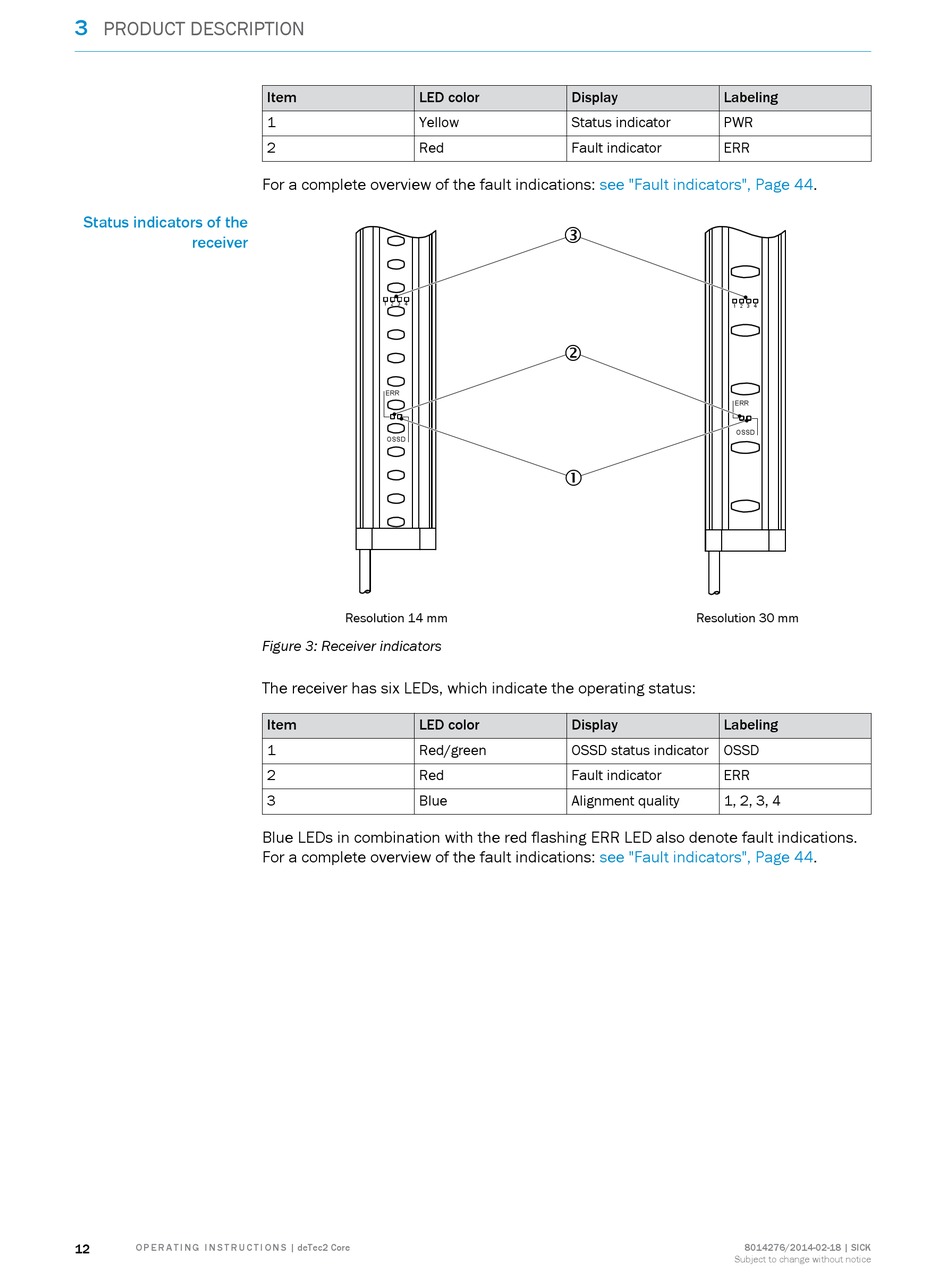

Figure 3: Receiver indicators
The receiver has six LEDs, which indicate the operating status:
Item LED color
1 Red/green
2 Red
3 Blue
Blue LEDs in combination with the red flashing ERR LED also denote fault indications.
For a complete overview of the fault indications:
Display Labeling
Status indicator PWR
Fault indicator ERR
see "Fault indicators", Page
3
1 2 3 4
2
ERR
OSSD
1
Resolution 30 mm
Display Labeling
OSSD status indicator OSSD
Fault indicator ERR
Alignment quality 1, 2, 3, 4
see "Fault indicators", Page
Subject to change without notice
44.
44.
8014276/2014-02-18 | SICK
