MOUNTING
5.3.3
Mount optional replacement bracket
30
O P E R A T I N G I N S T R U C T I O N S | deTec2 Core

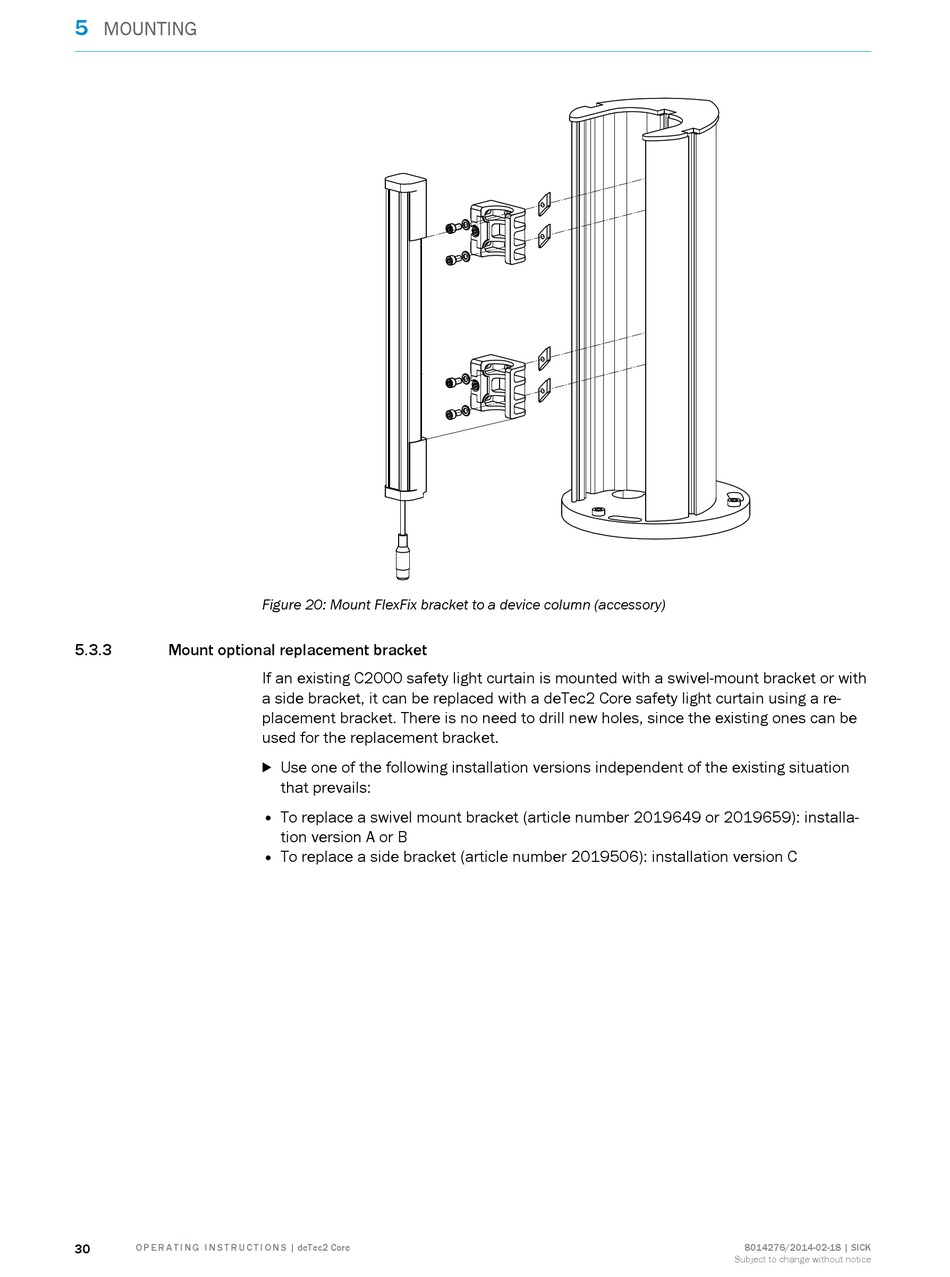

Figure 20: Mount FlexFix bracket to a device column (accessory)
If an existing C2000 safety light curtain is mounted with a swivel-mount bracket or with
a side bracket, it can be replaced with a deTec2 Core safety light curtain using a re‐
placement bracket. There is no need to drill new holes, since the existing ones can be
used for the replacement bracket.
b Use one of the following installation versions independent of the existing situation
that prevails:
•
To replace a swivel mount bracket (article number 2019649 or 2019659): installa‐
tion version A or B
•
To replace a side bracket (article number 2019506): installation version C
8014276/2014-02-18 | SICK
Subject to change without notice
