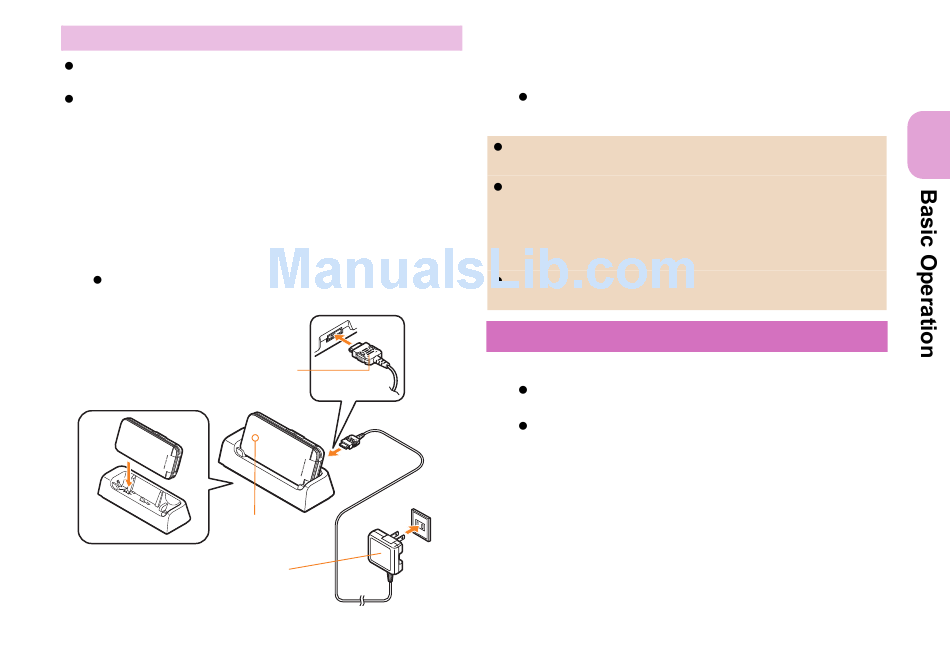

Charging by using desktop holder
Read the user's guide of Desktop Holder SH29 (sold
separately).
Charging is not available with the FOMA terminal opened.
1
Insert the AC adapter connector into the
connector terminal of the desktop holder
2
Insert the AC adapter power plug into an
outlet
3
Place the FOMA terminal in the desktop
holder in the direction of the arrow until it
clicks (1)
Charge start sound is heard, charging LED
illuminates, and charging starts.
Connector
(Turn the side with
the arrows up)
1
Charging LED
FOMA AC
Adapter 01/02
4
Hold the desktop holder, flip the FOMA
terminal forward and lift it out when
charging is complete
Charge end sound is heard and charging LED turns
off when charging is complete.
Pull the AC adapter out of the outlet when left unused for
a long period of time.
When charge start sound is not heard or when charging
LED does not illuminate, check that the FOMA terminal is
placed securely in the desktop holder (except when
terminal is turned off, manner mode is set or charge start
sound is silent).
When placing the FOMA terminal in the desktop holder,
be careful not to catch a strap.
Turning power on
1
H (for 2+ seconds)
Stand-by display appears when initial settings are
complete.
Press H for 2+ seconds to turn the power off.
