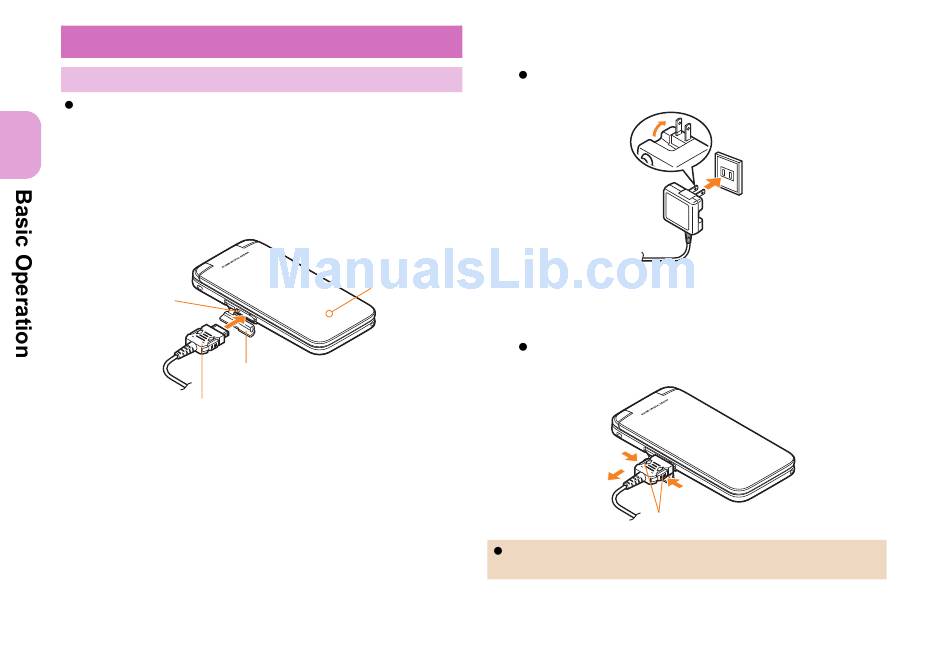

Charging
Charging by using AC adapter
Read the user's guide of FOMA AC Adapter 01/02 (sold
separately).
1
Open the external connector terminal
cover and insert the AC adapter connector
horizontally into the external connector
terminal
External
connector
terminal
Connector (Turn the side with the arrows up)
20
Charging LED
External connector terminal cover
2
Insert the AC adapter power plug into an
outlet
Charge start sound is heard, charging LED
illuminates, and charging starts.
3
Hold the release buttons (1) and
horizontally remove the connector (2)
when charging is complete
Charge end sound is heard and charging LED turns
off when charging is complete.
1
2
Release buttons
Note that excessive force may damage the FOMA
terminal and AC adapter.
