Summary of Contents for Amprobe BAT-200
- Page 1 BAT-200 Battery Tester User Manual • Mode d’emploi • Bedienungshandbuch • Manual d’Uso • Manual de uso...
-
Page 3: Battery Tester
BAT-200 Battery Tester Users Manual September 2009, Rev.1 ©2009 Amprobe Test Tools. All rights reserved. Printed in China... - Page 4 Limited Warranty and Limitation of Liability Your Amprobe product will be free from defects in material and workmanship for 1 year from the date of purchase. This warranty does not cover disposable batteries or damage from accident, neglect, misuse, alteration, contamination, or abnormal conditions of operation or handling.
- Page 5 Non-Warranty Repairs and Replacement – US and Canada Non-warranty repairs in the United States and Canada should be sent to a Amprobe® Test Tools Service Center. Call Amprobe® Test Tools or inquire at your point of purchase for current repair and replacement rates.

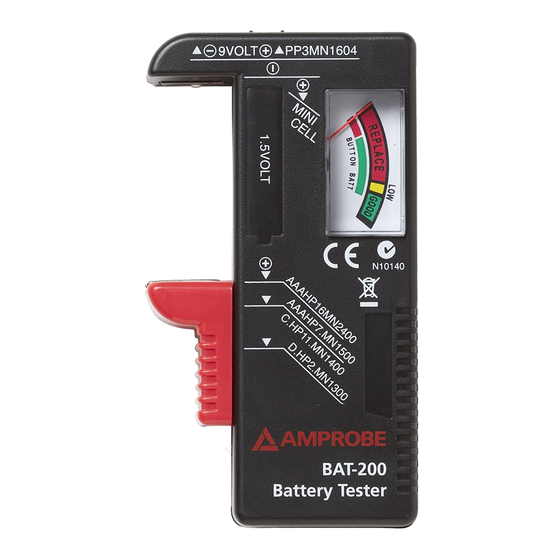

- Page 6 BAT-200 Battery Tester Battery Condition Meter 1.5v Battery Terminal Contactor Caliper 9v Battery Terminal Contactors...
- Page 7 CONTENTS SYMBOLS ................2 UNPACKING AND INSPECTION ........2 INTRODUCTION ..............2 FEATURES ................3 OPERATION ................ 3...
-
Page 8: Unpacking And Inspection
Keep test time as short as possible, to avoid uneccessary battery drain. UNPACKING AND INSPECTION Your shipping carton should include: BAT-200 Battery Tester Users manual If any of the items are damaged or missing, return the complete package to the place of purchase for an exchange. -
Page 9: Operation
FEATURES • Measuring for Multiple battery types • Available for 1.5V and 9V battery • Easy-to-read color-coded display with “Good”, “Low” and “Replace/Recharge” indicators • Works with standard and rechargeable batteries OPERATION Reading The Meter For 1.5V and 9V batteries, read off upper scale. Connect the 1.5V Battery Connect the 9V Battery... - Page 10 For 1.5V button cells, read off “BUTTON BATT” scale.4. Connect the 1.5V button cells = Replace Yellow = Low Power Green = Good If needle does not move,check that battery is touching both contacts before assuming that it is completely dead. The Battery Tester may be used to test the following sizes: 1.5V...
