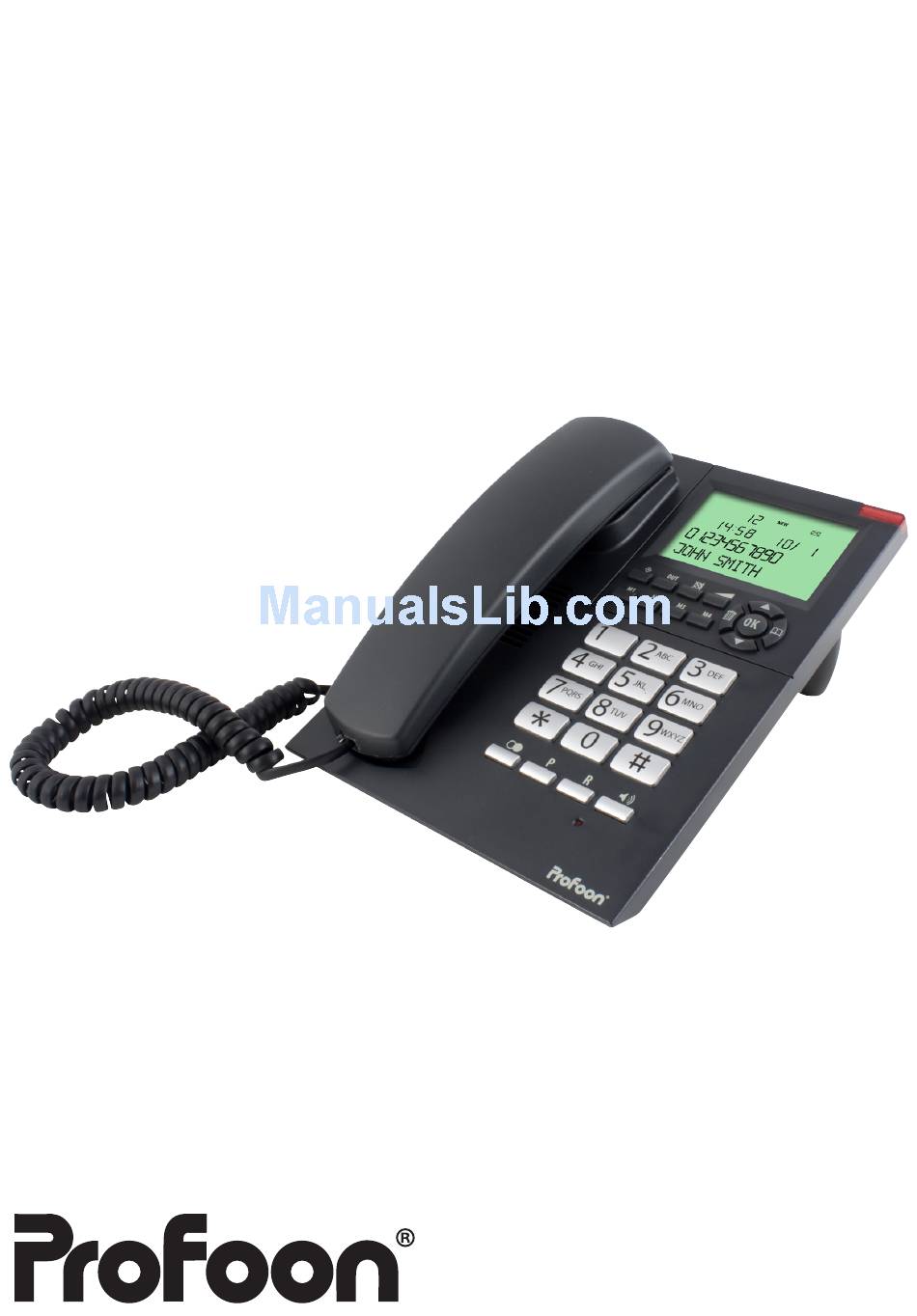

- Page 1 USER’S MANUAL TX-325...

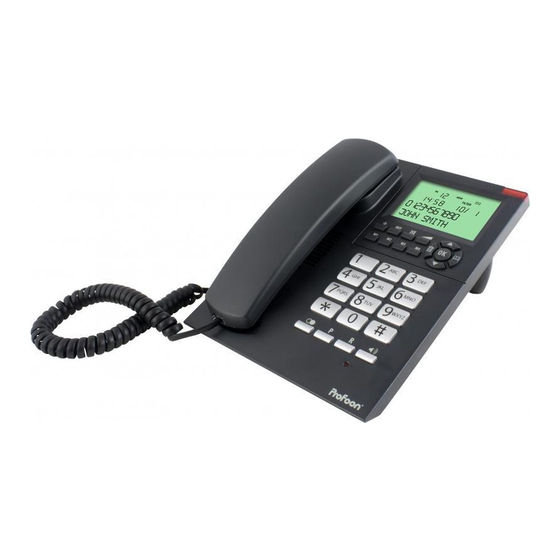

- Page 2 1. PHONE OVERVIEW when using the phone in a suspended position, here you can tem- porarily put the receiver to e.g. pick something up without discon- necting your call call light, illuminates when receiv- ing a call phone line input (bottom of phone) display M...
- Page 3 M... to dial 2-button memories to delete memories during a call, press to switch off the microphone (MUTE), press again to switch the microphone back on to adjust the volume for hands-free calls 4 direct memory buttons correction button, to delete wrong entries in names or numbers buttons, to scroll memories and settings phonebook, the open the telephone memory OK button, to save settings and memories...
- Page 4 2. INSTALLATION 2.1 Receiver: 1. connect the receiver with the telephone by attaching one side of the spiral cable to the bottom of the receiver and the other side to the left side of the telephone (See illustration on previous page) 2.
-
Page 5: Ending Calls
3. USING THE TELEPHON 3.1 Receiving calls: the call light illuminates when you’re receiving a call, the phone will also emit a ringtone M... PQRS WXYZ use the switch at the bottom of the phone to set the call volume to loud, normal or off pick up the receiver or press the speaker button to answer calls 3.2 Dialling numbers:... -
Page 6: Call Signal
(the TX-325 keeps the 16 last dialled numbers in its memory) pick up the receiver or press the speaker button to dial the number You can delete a recently dialled number by searching for it (see above) and then press- and OK buttons. -
Page 7: Dialling Memory Numbers
3.8 Dialling memory numbers: (chapter 5 describes how to program memories) phonebook memories: press the button use the keypad to enter the first letter of the name to be dialled or use the buttons to scroll the entire phonebook PQRS WXYZ pick up the receiver or press the speaker button to dial the number... -
Page 8: Extra Functions
3.9 Extra functions: ‘asterisk’ and ‘pound’ buttons: buttons are used mainly for tele-banking: = ASTERISK buttons = POUND buttons R button: (also called FLASH button) you can use the R button to accept or start a 2nd call keep in mind that this service is not offered by every telephone service provider and that it most likely requires an additional subscription when connected to a switchboard, you can also use this but-... -
Page 9: Settings
4. SETTINGS You can use the menu to customize the phone’s settings. Open the menu by pressing the OK button and use the buttons to scroll the options. Use the C button to leave the settings at any time. 4.1 Display language: Use this option to set the language in which the various phone notifications in the dis- play must be shown: press the OK button... -
Page 10: Time And Date
4.2 Time and date: In standby mode, the display will show the current time and date, which you can set as follows press the OK button use the buttons to select the option [ DATE/TIME ] press the OK button use the buttons to set the year press the OK button... -
Page 11: Display Contrast
4.3 Display contrast: You can set the contrast (readability) of the display as follows: press the OK button use the buttons to select the option [ CONTRAST ADJUST ] press the OK button use the buttons to select the desired contrast (level 1 = lowest contrast, level 5 = highest contrast) press the OK button finally, briefly pick up the receiver and put it back down to... -
Page 12: R/Flash Interruption Duration
4.4 R/Flash interruption duration: When pressing the R button, the phone connection will be briefly interrupted. This inter- ruption allows the switchboard you’re connected with to perform an action, such as con- necting a waiting call or forwarding a call to another phone (ask your telephone network provider or the supplier of your switchboard). -
Page 13: Memories
5. MEMORIES The TX-325 is provided with a memory capacity for 116 telephone numbers: • 100 memories with number and name in the phonebook memory • 4 direct memories (number only) • 12 2-buttons memories (number only) 5.1 Phonebook memories:... - Page 14 Correcting: press the OK button use the buttons to select the option [ PHONEBOOK EDIT ] press the OK button use the buttons to select the memory you’d like to change press the OK button use the C button to delete the incorrect number, enter the cor- rect number and press the OK button PQRS WXYZ...
-
Page 15: Direct Memories M1 ~ M4
press the button, the display will indicate [ DELETE? ] now press the OK button to delete the selected memory (briefly pick up the receiver to cancel the delete action) Enter the next contact or briefly pick up the receiver and put it back down to leave the settings Deleting all memories: press the... -
Page 16: 2-Buttons Memories
press the desired direct memory button under which the num- ber must be saved, the number will be stored directly Correcting: It’s not possible to correct a direct memory. To adjust, you’ll just need to program the new number over the old number; the old number will be overwritten. Deleting: It’s not possible to delete a direct memory. -
Page 17: Emergency Call
6. EMERGENCY CALL When this function is enabled, you can press any button (except the OK button) to im- mediately switch on the speaker function and dial a pre-programmed number. This can be your mobile number, the number where you can be reached or even the general alarm number 112. -
Page 18: Caller-Id
7. Caller-ID When you’re subscribed to the Caller-ID service, the display of your phone will show the number of the person calling you. If the telephone service provider also includes the name or if this number together with a name is programmed in the phonebook memory of your phone, the display will also show the name of the subscriber calling you. -
Page 19: Calling Back
7.3 Calling back: press the button to open the Caller-ID memory Search the desired call pick up the receiver of press the speaker button to call back the selected number 7.4 Copying to the phonebook memory: press the button to open the Caller-ID memory Search the desired call press the OK button press... -
Page 20: Deleting
7.6 Tips and remarks: • The TX-325 has a memory for 100 received calls. When this memory is full and you receive a new call, the oldest call in the memory will be deleted. • The TX-325 is suitable for both the DTMF system, offered by the Dutch PTT, and the FSK system, offered by the Belgian PTT and by cable providers in the Netherlands and Belgium for as far as they offer telephone services. -
Page 21: Voicemail Indication
7.7 Voicemail indication: Voicemail is a service offered by the telephone service provider, allowing callers to leave a message. You can listen to this message at a later time. (*) If your telephone service provider supports the Voicemail service, based on the FSK system, then it’s possible that you receive a notification when somebody has left you a new message. -
Page 22: Maintenance
This device meets the essential requirements and other relevant provisions as stipulated by the European Guideline 1999/5/EC. The TX-325 has a connecting factor of 125 (this corresponds to a connecting factor of 5 according to the old measurement method). 11. CONTENTS PHONE OVERVIEW .................. -
Page 23: Table Of Contents
3.4 Ending calls ....................5 3.5 Call signal ....................6 3.6 Mute (switching off the microphone) ............6 3.7 Hands-free volume ..................6 3.8 Dialling memory numbers ................7 3.9 Extra functions ..................... 8 SETTINGS 4.1 Display language ..................9 4.2 Time and date .................... -
Page 24: Warranty
(see the production label at the bottom of the phone) For the Profoon TX-325 you have a warranty of 24 months from the date of purchase. During this period, we guarantee the free repair of defects caused by material and workmanship errors.
