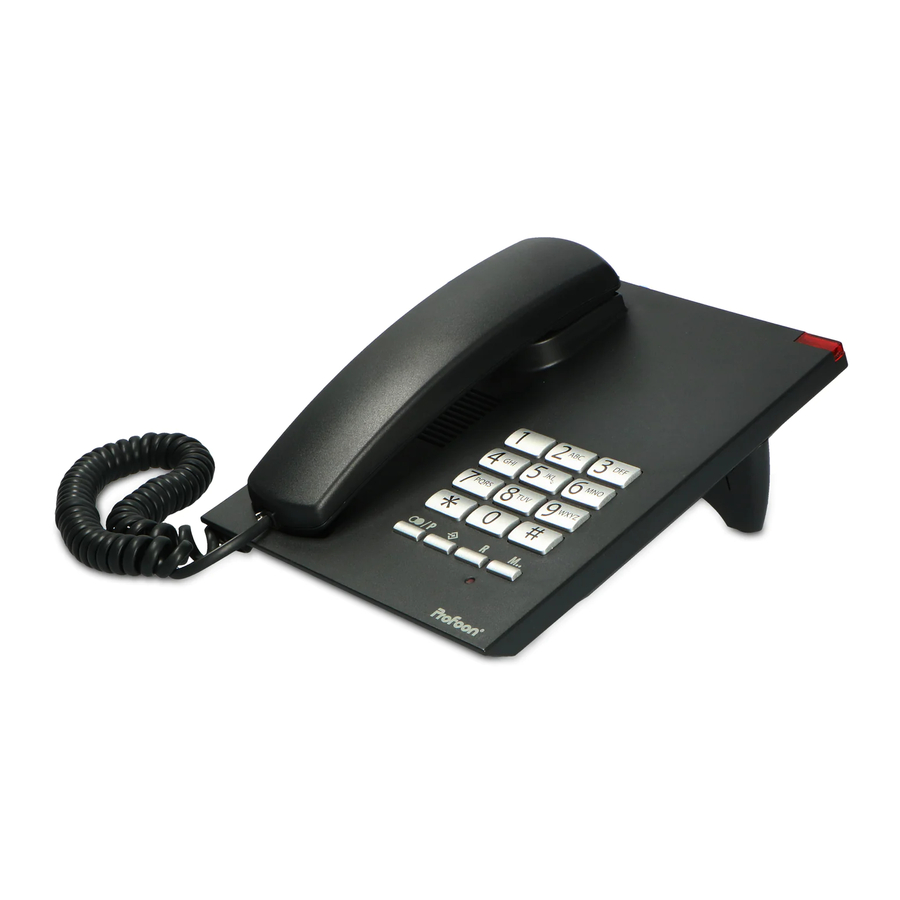

Profoon TX-310 - Analogue Telephone Manual

INSTALLATION

Receiver:

1. connect the receiver with the telephone by attaching one side of the spiral cable to the bottom of the receiver and the other side to the left side of the telephone
2. push in the plugs until they're securely connected

Telephone:

1. plug the telephone wire into the bottom of the telephone
2. insert the telephone plug into a telephone wall socket

Desk bracket:
you can use the phone as a desk model by clicking the bracket onto the bottom of the phone according to the illustration below

press the bracket according to the illustration to disassemble again

Wall-mounting:

1. in a vertical line, drill 2 holes at a distance of 10 cm from each other and insert plugs and screws; let the head of the screws protrude for 5 mm
2. rotate the receiver suspension tab 180° according to the picture; this tab will hold the receiver when used in a suspended position

3. hook the telephone with the screw holes over the screws and press it downward
4. fix the phone line with cable-ties onto the wall

USING THE TELEPHONE

Receiving calls:
the call light illuminates when you're receiving a call

use the switch at the bottom of the phone to set the call volume to hard, normal or soft
pick up the receiver to answer calls

Dialling numbers:

1. pick up the receiver
2. use the keypad to enter the phone number, this number will be dialled directly

Ending calls:

1. put down the receiver to disconnect your call

Call signal:

1. pick up the receiver and wait for the dialling tone
2. press the / button to redial the last dialled number

Memory dialling:

1. pick up the receiver
2. press the M button followed by the numeric button (0-9) under which you've saved the number

Extra functions:
'asterisk' and 'pound' buttons:
the * and # buttons are used mainly for tele-banking:

• press the * button when asked to press


the ASTERISK button

• press the # button when asked to press the POUND button


R button
you can use the R button to accept or start a 2nd call keep in mind that this service is not offered by every telephone service provider and that it most likely requires an additional subscription


when connected to a switchboard, you can also use this button to forward calls; for this, refer to the user manual of your telephone switchboard or the installer
dial pause:
press the / button to insert a dialling pause

MEMORIES

Your phone has a memory for 10 phone numbers up to 16 digits.
Programming:

1. Pick up the receiver and put it next to your phone
2. press 1x the button
3. use the keypad to enter the desired phone number (press the / button to insert a pause)
4. press 1x the button
5. press the desired memory button (0-9) under which you'd like to save the number
6. put the receiver back onto the phone

Dialling:

1. pick up the receiver
2. press the button followed by the numeric button (0-9) under which you've saved the number

Tips and remarks:
The phone uses the voltage of the telephone connectors to store the memories, which means you don't need to insert batteries. However, make sure to keep the phone connected at all times.
A brief interruption, e.g. for quickly moving the phone, is possible without losing the memories.
A memory number may contain up to a maximum of 16 digits.
In addition to normal phone numbers, you can also store the numbers of mobile phones.
You can not Editing or deleting:

• You can change a number by programming the new number over the old number. This will overwrite and delete the old number.
• You can delete a number by programming a non-existing number (e.g. 0000) over the old number. This will overwrite and delete the old number.

TIPS AND WARNINGS

GENERAL:

• Read the user manual carefully and follow all instructions.
• Always disconnect the phone plug from the phone socket before cleaning your phone.
• Never place or use the phone in a wet or moist room or environment.
• Take care of proper heat dissipation; never cover the phone and/or the power supply adapter(s), and do not place them directly beside a heat source.
• Take care that the cable of the phone and the adapter do not get damaged, and prevent that they cause tripping or falling.
• Never disassemble the phone and the adapter; this may only be done by qualified personnel.

INSTALLATION:

• Connect or disconnect the cables of the phone and the power supply adapter only to the base station when the power supply adapter has been unplugged from the mains socket, and the phone connector has been disconnected from the phone socket.
• Do not install the phone during a lightning storm.
• Do not install a phone connection point in a wet or moist environment.
• Do not touch uninsulated phone or adapter cables, unless they are disconnected from the phone network or the mains power.

ENVIRONMENT:

• The packaging of this telephone can be collected as old paper. However, we recommend you to save it, to adequately protect the phone during transport. When replacing this telephone, please return it to the supplier to ensure environment-friendly processing.


MAINTENANCE:

• Only clean the housing with a moist cloth, never use chemical cleaning agents.
• Never place the TX-310 onto cellulose-treated surfaces; the rubber feet could leave tracks.
