Profoon TX-178B User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
USERS MANUAL
TX_178B
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TX-178B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Profoon TX-178B

Summary of Contents for Profoon TX-178B

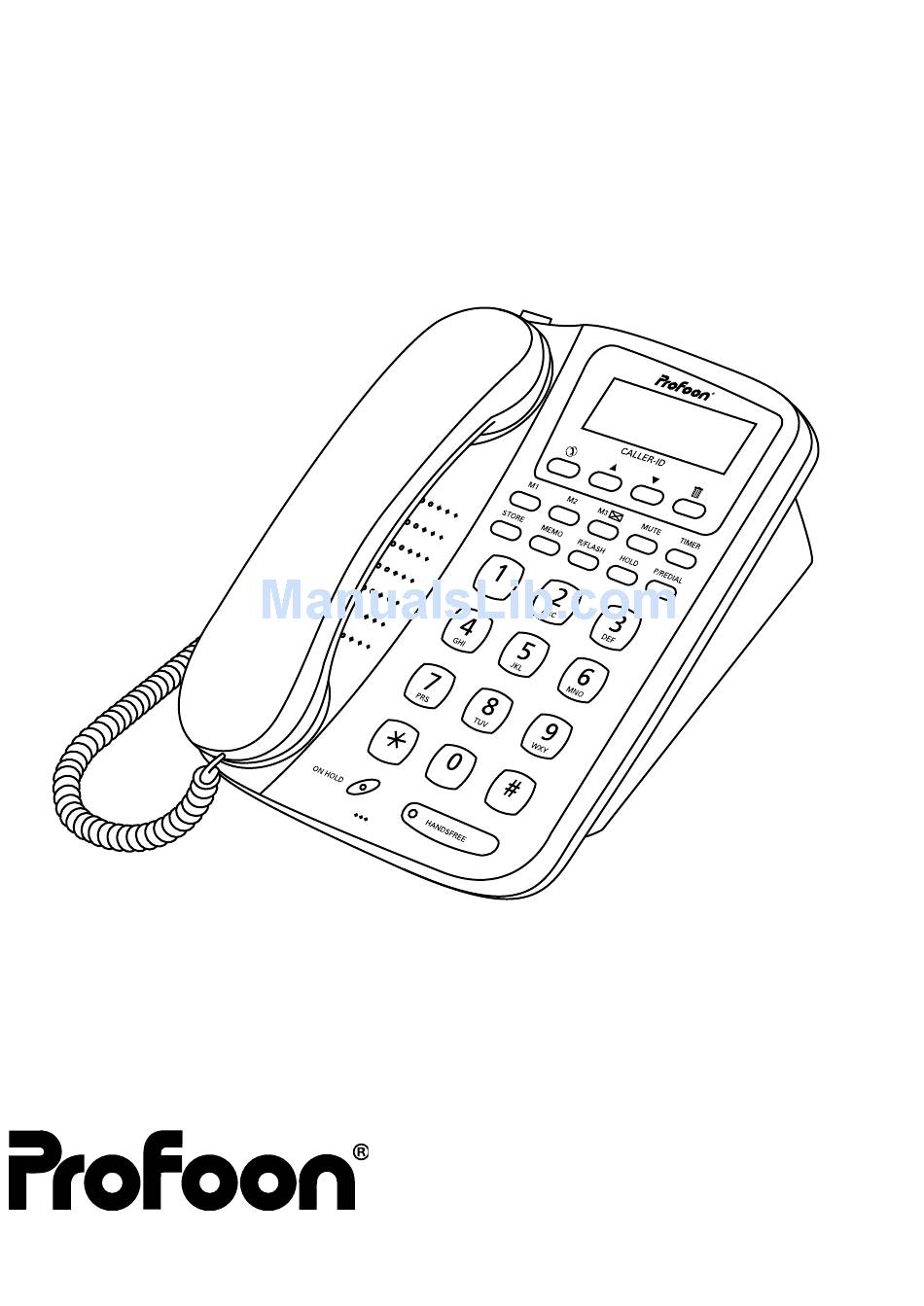

  • Page 1 USERS MANUAL TX_178B...

  • Page 2: Introduction

    INTRODUCTION The PROFOON TX-178B is a speakerphone with built-in Caller-ID. The number of the person who is calling to you is displayed by the TX-178B. The Caller-ID memory can hold 95 calls, together with the time and the date of the call.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Introduction ......... . 1 Preparation .

  • Page 4: Preparation

    3. Plug the telephone plug into your telephone outlet. PABX: In case the TX-178B will be connected to a PABX, check if the PABX is suitable for Caller-ID. If not, the TX-178B has to be connected directly to the public telephone network.

  • Page 5: Wall Mount

    Wall mount: 1. Drill two holes in the wall with a distance of 8.5 cm and insert two screws. Let the heads of the screws stick out a few millimeters of the wall. 2. Install the wall-mount-bracket as per the drawing. 3.

  • Page 6: How To Use

    HOW TO USE Incoming call: Adjust the ringer volume with the ringer switch on the backside of the telephone. Lift the handset and start the conversation. Outgoing call: Lift the handset. Wait for the dial tone and key-in the desired telephone number.

  • Page 7: Flash

    Use the R/FLASH key to activate special services from your telephone- company or to transfer a call in case you are connected through a PABX. The FLASH time of the TX-178B is 100mS. TIMER-button: Press this button during a conversation to start the timerfunction. Press this button after the call to view the duration of the last telephone call.

  • Page 8: Memories

    MEMORIES The TX-178B has a memory capacity of 20 telephone numbers, each with a maximum of 16 digits (including pause). 3 memories are direct accessible and the remaining 17 memories are accessible after pressing key MEMO. Programming: 1. Leave the handset on the cradle 2.

  • Page 9: Remarks

    Remarks: When dialing through a PABX, it is recommendable to insert a pause after the prefix-number. It is not possible to store a new number over an old number. This old number must first be erased. A number can be erased by pressing button STORE followed by the memory location.

  • Page 10: Caller-Id

    Lift the handset or press the speakerphone button. Press button , the selected number will be dialed. In case the TX-178B is connected through a PABX with prefix -0-, then lift the handset, dial the -0- and than look for the number and press but-...

  • Page 11: Delete

    Delete: Look for the number to be deleted and press button twice. In case all numbers have to be deleted, press and hold button until the display reads: “NO CALL”.

  • Page 12: Tips & Remarks

    In case your PABX is not capable to pass the caller-ID signals, than the TX-178B must be connected directly to the CO-line. ISDN: The TX-178B only display's the number of the caller when the used ISDN exchange is suitable for CLIP for analogue telephones Call waiting: If during a telephone-call a new call comes in, the number of this second call will not be displayed.

  • Page 13: Display

    Never use chemical cleansers to clean the cabinet, the cabinet may only be cleaned with a moist cloth. Don't place the TX-178B on furniture with cellulose based coating; the rubber feet will leave stains on the cellulose. Under certain circumstances the sound of the TX-178B might be influen- ced by electromagnetic fields of electronic devices like TV, computer or radio transmitters close to the telephone.

  • Page 14: Guarantee Card

    This at the importers discre- tion. It is only possible to claim to the guarantee when you enclose your purchase ticket with the TX-178B. HOW TO ACT: If you notice a defect, consult the manual first. If this manual gives you no definite answer, consult your dealer with a clear description of your complaint.
