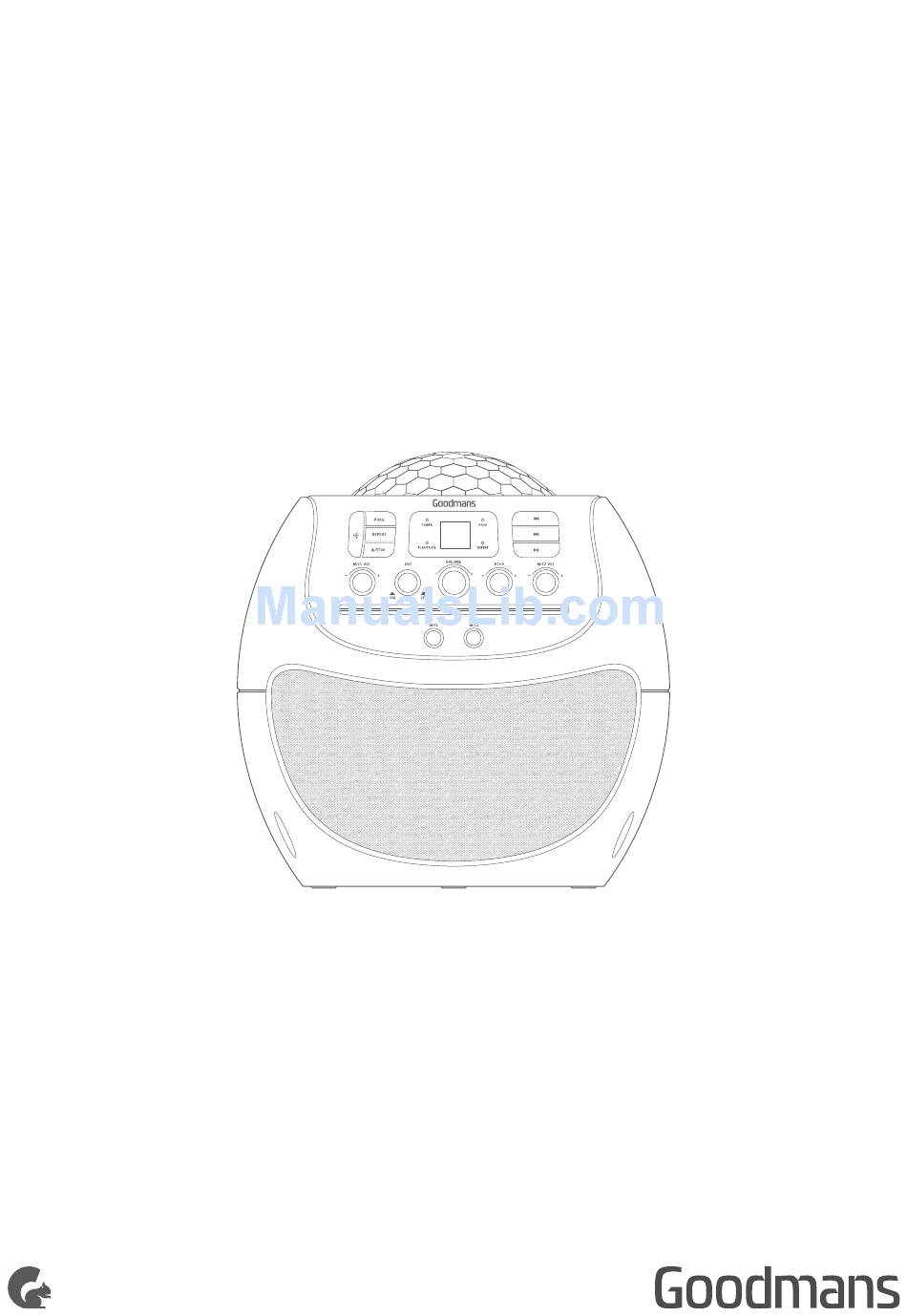

- Page 1 CD+G KARAOKE AND DISCO LIGHT SYSTEM MODEL: XB13CDG USER MANUAL...
-
Page 2: Operation
Welcome Your CD+G Karaoke System 2.1 In The Box 2.2 Front View 2.3 Indicators 2.4 Rear View Quick Setup 3.1 Making the Connections 3.7 Connecting the Power 3.2 Display Lyrics on a TV Screen 3.8 Standby & Auto Standby 3.3 TV Connection for Audio & Video 3.9 Adjusting the Volume 3.4 TV Connection with SCART Adaptor 3.10 Connecting an External Audio Source... -
Page 3: Your Karaoke System
1 Welcome Thank you for choosing this Goodmans product. We’ve been making electronics for the British people for 70 years. Each of our projects has been carefully designed to be great at what it does and this one is no exception. We hope you enjoy your new Karaoke System. -
Page 4: Front View
C J O P A Press to begin playback or pause playback. - MIC 2 VOLUME button. Adjusts the microphone level. - VOLUME. Adjusts the volume level of the internal speaker - MIC 2 input. Microphone input. - SPEAKER XB13CDG... -
Page 5: Rear View
AUDIO OUT VIDEO OUT AUX IN Connect an external audio source for playblack through the speakers. - RCA STEREO AUDIO output Connect to an RCA stereo input on a TV or amplifier. - AC MAINS input - BATTERY compartment XB13CDG... -
Page 6: Quick Setup
Take care to match the socket colours to the jack colours & that the red, white & yellow sockets are all from the same TV input. 5. Select the appropriate video channel on your TV to view the lyrics on-screen and hear the sound from the TV speakers. XB13CDG... - Page 7 RCA STEREO input on your amplifier. 3. Power on the amplifier and select the input you connected the cables to. In order to see the lyrics on your TV screen you also need to connect the yellow cable to your TV (see section 3.1). XB13CDG...
-
Page 8: Connecting The Microphone(S)
2. Insert the mains power cable into a power socket, and switch the power on. 3. Press the ON/OFF button on the behind of the karaoke machine. POWER AUDIO OUT VIDEO OUT AUX IN POWER AUDIO OUT VIDEO OUT AUX IN XB13CDG... -
Page 9: Connecting An External Audio Source
When connecting via the headphone output the volume of the karaoke machine is affected by the volume control on the player. Ensure that the audio source (such as an MP3 player) is set to about 70-80% to avoid distortion. POWER AUDIO OUT VIDEO OUT AUX IN XB13CDG... -
Page 10: Fitting The Batteries
1. Remove the battery cover by pressing the battery cover tabs downwards and out. 2. Insert 6 ‘C’ UM2 type batteries into the battery compartment taking note of the engraved battery direction diagrams on the inside. 3. Replace the battery cover. XB13CDG... -
Page 11: Switching Modes
A CD+G (CD + Graphics) is the standard format for most karaoke discs. Each disc contains the audio track and words that appear on your TV screen. 4.3 Load a Disc Insert the disc into the CD slot (label side up). Press PLAY button to play music. XB13CDG... -
Page 12: Play A Song
3. Press the PROG button to store track ‘1’ of the playlist. 4. Repeat steps 2-3 to program up to 20 tracks. 5. When complete press the button to begin playback. 6. To cancel the program sequence press the STOP button twice. The PROG indicator will go off. XB13CDG... -
Page 13: Repeat Single/All Track(S)
REPEAT indicator to the right of the display stop flashing and remain solid. 3. To cancel the repeat function press the REPEAT button for a third time.You will see the REPEAT indicator to the right of the display go off. XB13CDG... - Page 14 MAX will cut the vocals out almost completely when singing. 4.10 Light Effect Show LED ball can be rotated light patterns onto walls and ceilings. 1. Press the LIGHT button on the front of the karaoke machine to enable the light show. XB13CDG...
-
Page 15: Troubleshooting
Check you have loaded a CD+G disc that contains lyrics. No sound from the microphone. The MIC VOLUME control is set to MIN. The microphone ON/OFF switch is set to the OFF position. The microphone is not connected properly. The microphone is damaged; try another microphone. XB13CDG... -
Page 16: Technical Specification
AC 230-240V ~ 50 Hz 6 x ‘C’UM2 type batteries Speaker Output Power 2W(RMS) Video Output PAL composite (RCA) Supported Disc Types CD, CD+G,CD-R,CD-RW 7 Customer Support Our customer service team is available for technical or guarantee support. Visit www.goodmans.co.uk/support www.goodmans.co.uk XB13CDG...
