Summary of Contents for Goodmans XB7CDGIP

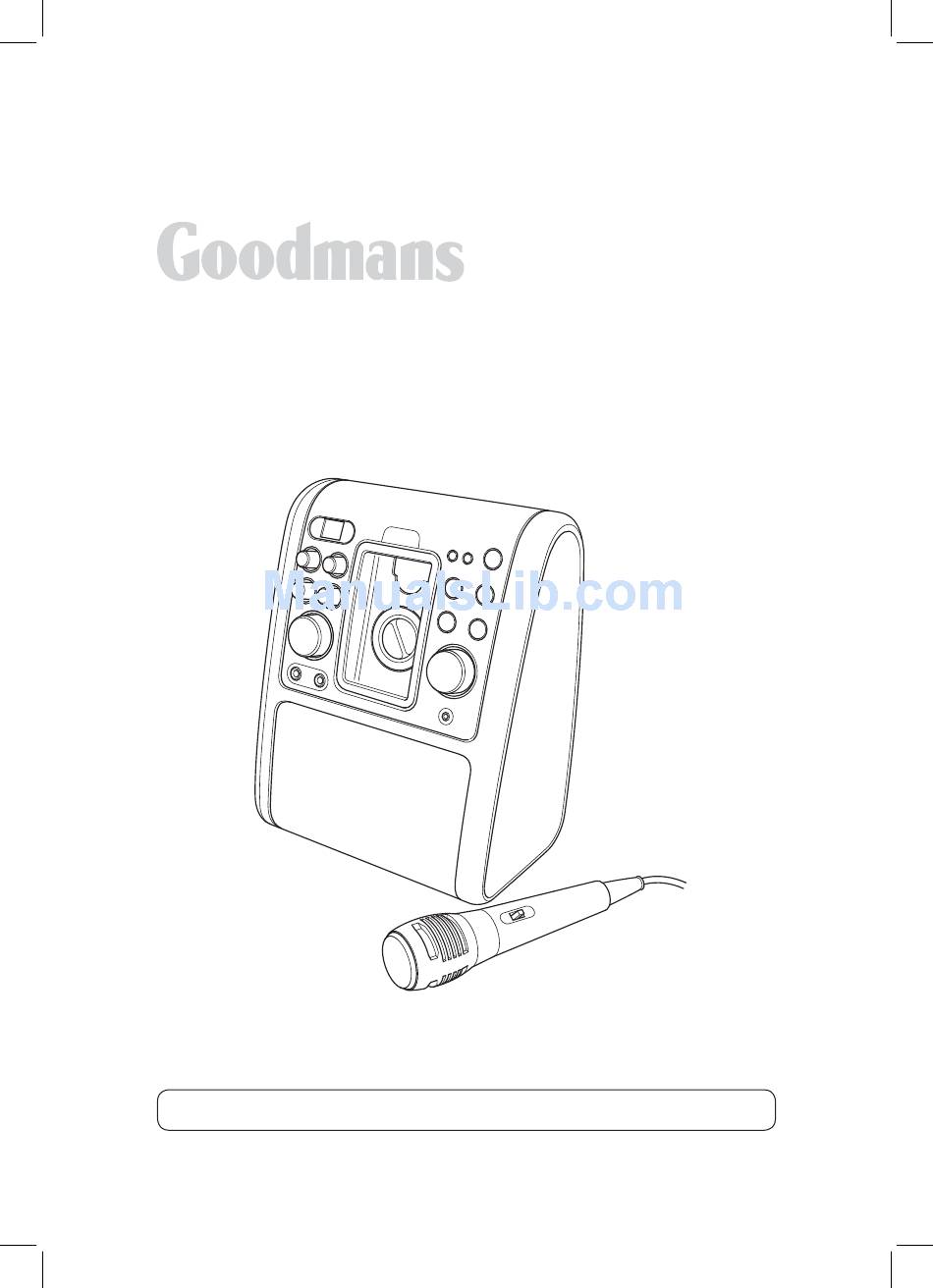

- Page 1 XB7CDGIP Karaoke System with Universal Dock for iPod User Guide IMPORTANT: Please read all instructions carefully before use and keep for future reference...
- Page 2 Introduction Thank you for choosing this Karaoke System with iPod Docking Station. Not only can you and your friends sing along to all your favourite songs, you can also listen to your tracks on your iPod. It’s really simple to use: you can fully operate both the Karaoke System and the iPod using the Remote Control.
-
Page 3: Table Of Contents
What’s in the box? Video RCA Cable Power Cable Audio RCA Cable Quick Start Guide User Guide Contents Your Karaoke System... 4 Getting Started...7 Daily Use...10 CD+G Playback ...12 Using Your iPod...14 Remote Control Karaoke System Microphone Troubleshooting...17 Specification... 20 Warnings... -
Page 4: Your Karaoke System
Your Karaoke System Front view iPod DOCK LED Display MODE Dial ECHO Dial AVC Dial MUSIC/KARAOKE Dial MIC VOLUME Dial MIC 1 Socket MIC 2 Socket REPEAT Button PROG Button STANDBY Button PLAY/PAUSE Button STOP Button NEXT Button PREV Button MASTER VOLUME Dial HEADPHONE Socket IPOD MODEL Switch... -
Page 5: Rear View
Your Karaoke System Rear view CARRY HANDLE AUX IN AUX IN Socket AUX OUT AUX OUT Socket VI DEO OUT VIDEO OUT Socket DISC Tray POWER Socket... -
Page 6: Remote Control
Your Karaoke System Remote control PROG/MENU Button POWER Button UP ARROW Button SELECT Button PREV Button DOWN ARROW Button ALBUM UP Button CHAPTER + Button CHAPTER - Button ALBUM DOWN Button POWER PROG PLAY/PAUSE STOP MENU MENU SELECT MENU SHUFFLE CHAPTER AL BUM PLAY LI ST... -
Page 7: Getting Started
Getting started Using the remote control The Remote Control can be used to operate the Karaoke System. Before using the Remote Control, the Safety Tab should be removed. Simply pull out the Safety Tab from the Remote Control as shown below. To use the Remote Control, simply direct it towards the front of the Karaoke System and press the desired buttons. -
Page 8: Connecting To External Devices
Getting started Connecting to external devices The Karaoke System can be connected to either the TV or a Stereo Sound System using the supplied RCA Cables. To connect the Karaoke System to a TV only, follow the instructions provided in the Quick Start Guide. To connect the Karaoke System to a TV and Stereo Sound System: Use the Yellow RCA Cable to connect the TV and Karaoke System. -
Page 9: Connecting External Devices
Getting started Setting up the Karaoke System Plug the Microphone Jack into the MIC 1 Socket on the front of the Karaoke System. Connect the Karaoke System to your TV using the Supplied RCA Cables. Turn your TV On and select the AV source. Connect the Power Cable to the Power Socket on the rear of the Karaoke System. -
Page 10: Daily Use
Daily use Switching ON To turn the Karaoke System On, press the STANDBY button. To turn the Karaoke System Off, press the STANDBY button again. Mode selection The Karaoke System has the following modes of operation: • Aux - to listen to an external device •... - Page 11 Daily use Mixing the Backing Track and Vocals DON’T FORGET! This feature is only available when the MUSIC/ KARAOKE DIAL is set to Karaoke (vocals). The bias or mix between the backing track and your vocals can be adjusted using the Auto Volume Control (AVC). When the AVC is applied, the volume of the backing track is reduced while you sing.
-
Page 12: Cd+G Playback
CD+G playback Playing CD+G discs Loading discs Press the STANDBY button to turn on the Karaoke System. Press the top right hand corner of the Disc Tray to open. Insert the CD+G Disc into the CD Compartment with the label facing outwards. -
Page 13: Audio Cd Playback
CD+G playback Press the PROG button. The Prog indicator will begin to flash and the number 1 will momentarily appear on the LED Display. This indicates that you can programme the first track. Select the first track using the and I buttons. -
Page 14: Using Your Ipod
Using your iPod iPod docking Any iPods listed below can be connected to the Karaoke System allowing all your favourite songs to be played through the Karaoke Systems speakers. The iPod can be completely controlled by the Karaoke System and charges while docked. - Page 15 Using your iPod Using your iPod The following instructions describe how to operate your iPod when it is connected to the Karaoke System using the Remote Control. DON’T FORGET! The following features only work in iPod mode with an iPod docked. Selecting iPod Mode Press the STANDBY button to turn on the Karaoke System.
- Page 16 Using your iPod Repeat play You can repeat a single Track, Album or Playlist or all the tracks on your iPod. Repeating a single track To repeat a single track, press the REPEAT button once. The Repeat Once symbol will appear on your iPod display.
-
Page 17: Troubleshooting
Troubleshooting General Problem Possible Cause No Power 1. The plug is not plugged into the wall socket. 2. The wall socket is not turned on. The Karaoke System 1. The Karaoke System is not responding to is switched off at the the Remote Control wall socket. - Page 18 Troubleshooting Problem Possible Cause There is no sound 1. The Microphone is when singing into not connected to the the Microphone Karaoke System. 2. The Microphone is not switched On. 3. The Microphone Volume is on the minimum setting. Problem Possible Cause The CD does not 1.
- Page 19 Troubleshooting iPod Problem Possible Cause The iPod is unstable 1. The iPod Model Switch in the Dock. is set to the incorrect setting. iPod does not 1. The iPod is not docked respond to inputs correctly. from the Karaoke System. Need extra help? Don’t worry we are just at the other end of the phone.
-
Page 20: Specification
Nominal Use Frequency Response Power Output Speaker Microphone Unit Dimensions Unit Weight XB7CDGIP 230V AC 50Hz 8 x LR14 C Type 1.5V batteries (not included) Alkaline is recommended for longer life 0.831W 100 - 10,000 Hz (+/- 3db) 2W x 2 (10% THD) 3”... -
Page 21: Warnings
Warnings WEEE This appliance is labelled in accordance with European Directive 2002/96/ EG concerning used electrical and electronic appliances (Waste Electrical and Electronic Equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances. Sound levels Your hearing is very important to you and to us, so please take care when using this Karaoke System. - Page 22 Warnings Make sure that other people in your household are conversant with the Karaoke System. Don’t obstruct the ventilation vents on the Karaoke System, for example with curtains or soft furnishings. Don’t allow electrical equipment to be exposed to rain or moisture. Store the Karaoke System in a clean, dry environment.
-
Page 23: Electrical Information
Electrical information The mains lead supplied with this Karaoke System is fitted with a BS1363/A 13 amp plug. If it is not suitable for your supply sockets it must be removed and replaced with an appropriate plug. If the plug becomes damaged and/or needs to be replaced please follow the wiring instructions below. -
Page 24: Guarantee
The Karaoke System is guaranteed for twelve months from the date of original purchase. If any defect due to faulty materials or workmanship, contact the Goodmans Helpline. Have your receipt of purchase on hand. The guarantee is subject to the following provisions: •... - Page 28 Technical Support: 0871 230 1777 DCS-May10-XB7CDGIP XB7CDGIP_UserGuide Rev5.indd 28...
