Summary of Contents for Goodmans XB4CDGX

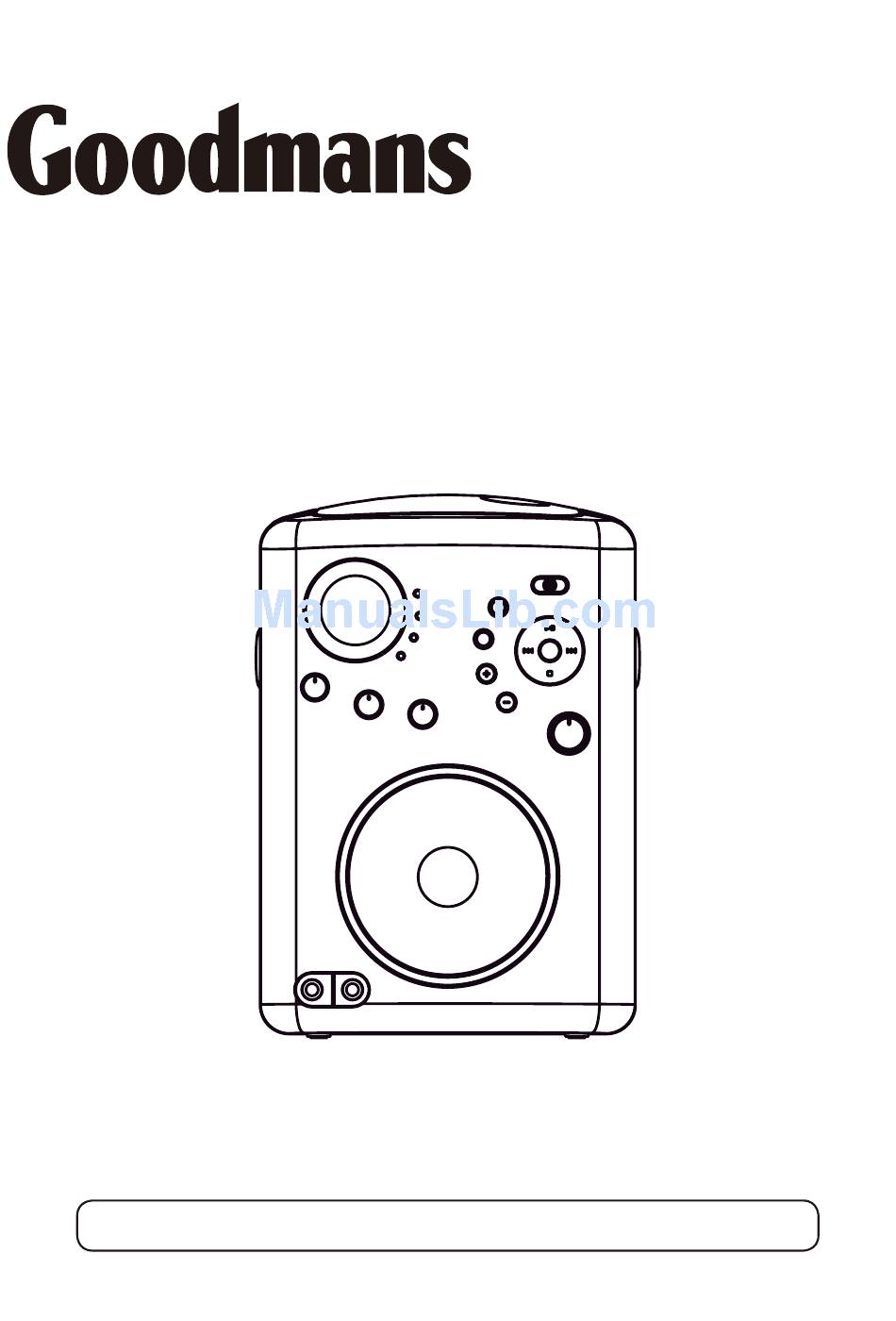

- Page 1 XB4CDGX CD Karaoke User Guide IMPORTANT: Please read all instructions carefully before use and keep for future reference...
-
Page 2: Introduction
Introduction Thank you for choosing this Goodmans CD Karaoke. Your CD Karaoke will provide you with fun and entertainment. It can let you be the “star” while singing with your favorite recordings and also display the song lyrics on your TV screen. -
Page 3: Table Of Contents
What’s in the box? CD Karaoke This User Guide Scart Cable Microphone Contents Introduction......................1 What’s in the box....................2 01 Your CD Karaoke..................3 02 Making Connections..................4 03 CD or CD+G Operation................5 CD or CD+G Operation................5 ................5 04 Additional Features..................7 05 Troubleshooting..................8 Troubleshooting..................8 ..................8 05 Specifications...................9... -
Page 4: Your Cd Karaoke
Your CD Karaoke MIC holder CD Door HANDLE HANDLE Front REPEAT Button REPEAT indicator PROGRAM Button PROGRAM indicator PLAY/PAUSE indicator FUNCTION Switch STANDBY indicator PLAY / PAUSE Button SKIP Forward Button LED display STOP Button MIC VOLUME Knob SKIP Backward Button AUTO VOICE CONTROL Knob MASTER VOLUME Control &... -
Page 5: Making Connections
Making Connections CONNECTING POWER Connect the 3 pin plug to a suitable mains wall outlet. VIDEO CONNECTION Please follow the steps below to display CDG lyrics on the TV screen: 1 Locate the scart cable. 2 Connect the scart cable to the SCART OUT socket of the back of the CD Karaoke. -
Page 6: Cd Or Cd+G Operation
CD and CD+G Operation Handling CDs To remove a disc from its storage case, press down on the centre of the case and lift the disc out, holding it carefully by the edges. Fingerprints and dust should be carefully wiped off the disc’s recorded surface with a soft cloth before use. - Page 7 CD and CD+G Operation Playing/Pausing a track Press the PLAY/PAUSE button to begin playback of the first track. The Play/Pause indicator will light. To pause playback , press the PLAY/PAUSE button. The Play/Pause indicator will flash. To resume playback, press the PLAY/PAUSE button again. To stop playback of the CD, press the STOP button.
-
Page 8: Additional Features
Additional Features Auto Voice Control To replace the original singer’s voice with your own when a pre-recorded multiplex karaoke disc is used: Rotate the Mic VOLUME to the desired level. Rotate the AUTO VOICE CONTROL to achieve a balance between playback and microphone volume levels. -
Page 9: Troubleshooting
Troubleshooting Problem Possible Cause Solution No power. No power plug connection at Insert the power plug into the AC outlet. the AC outlet. No sound. Volume control is set to minimum. Turn up the volume. The wrong function is selected. Select the correct function. -
Page 10: Specifications
Specifications Model Number • XB4CDGX Power source • AC 230V ~ 50Hz Power consumption • 18W Frequency response • 100 – 18,000 Hz Power Output • 5W Speaker • 3” 4 ohms Microphone • -74 dB 600ohms impedance with ø6.3mm dynamic microphone Unit dimensions •... -
Page 11: Warnings
Warnings CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER- RISK OF ELECTRIC SHOCK DO NOT OPEN SERVICEABLE PARTS INSIDE, REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage”... - Page 12 Warnings WEEE This appliance is labelled in accordance with European Directive 2002/96/EG concerning used electrical and electronic appliances (Waste Electrical and Electronic Equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances. Sound levels Your hearing is very important to you and to us, so please take care when using this Karaoke System.
- Page 13 Warnings Electrical Information This Koraoke System is fitted with a mains lead fitted with a BS1363/A 13amp plug. If it is not suitable for your supply sockets it must be removed and replaced with an appropriate plug. If the plug becomes damaged and/or needs to be replaced please follow the wiring instructions below.
-
Page 14: Guarantee
The Karaoke System is guaranteed for twelve months from the date of original purchase. If there are any defects due to faulty materials or workmanship, contact the Goodmans Helpline. Have your receipt of purchase on hand. The guarantee is subject to the following provisions: •... - Page 16 0871 230 1777...
