Page 1: User Guide
XB6CDG Portable CD Karaoke System User Guide IMPORTANT: Please read all instructions carefully before use and keep for future reference XB7CDGIP_UserGuide Rev2.indd 1 23/11/2009 10:03:52... - Page 2 Introduction Thank you for choosing this Goodmans Portable CD Karaoke System. Not only can you and your friends sing along to all your favourite songs, you can also view the song lyrics on your TV screen. It’s really simple to use: yet full of features with a compact design. After just a few simple instructions, you will become an expert.
- Page 3 Introduction Key features Karaoke with CD+G discs - You and your friends can sing along to all your favourite songs using CD+G discs. The Karaoke System can be connected to a TV to display on- screen lyrics. Your voice and the backing tracks will be played through either the built in speaker, or a connected Sound System/TV.
-
Page 4: Table Of Contents
What’s in the box? Audio/Video RCA Cable Quick Start Guide Contents Your Karaoke System ...5 Getting Started ...6 Daily Use ... 8 CD+G Playback ...10 Troubleshooting ...12 XB7CDGIP_UserGuide Rev2.indd 2 Power Cable Scart Adaptor User Guide Specification ...15 Warnings ...16 Electrical Information ...18 Guarantee ...19 Karaoke System... -
Page 5: Your Karaoke System

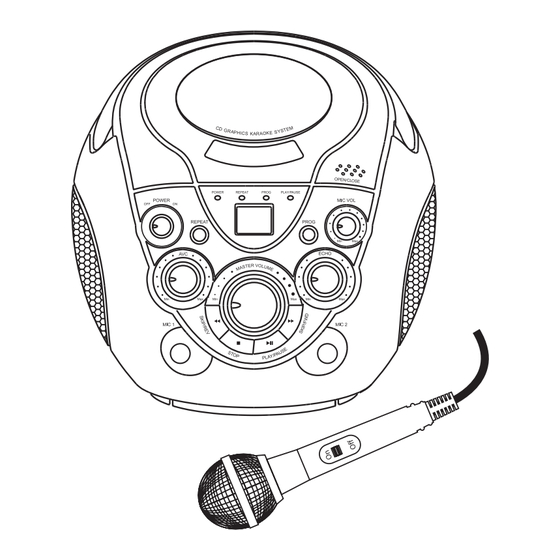

Your Karaoke System Front view Program Indicator Repeat Indicator Power Indicator Power Switch Repeat Button Auto Voice Control Skip Button Stop Button Microphone 1 Input Volume Dial Rear view Carry Handle Video Output (Composite) VIDEO OUT AUDIO OUT Battery Compartment CD Door Play/Pause Indicator Open/Close Button... -
Page 6: Getting Started
Getting started Power the Karaoke System using batteries The Karaoke System can be powered using eight ‘C’ type batteries. Insert eight batteries (not supplied) into the Battery Compartment at the bottom of the Karaoke System observing the polarity markings on the base of the Battery Compartment. - Page 7 Getting started Setting up the Karaoke System Plug the Microphone Jack into the MIC 1 Socket on the front of the Karaoke System. Connect the Karaoke System to your TV using the Supplied RCA Cables (use the supplied SCART adaptor if required). Turn your TV ON and select the AV source.
-
Page 8: Daily Use
Daily use Switching ON To turn the Karaoke System On, Rotate the POWER switch to the ON position. To turn the Karaoke System Off, Rotate the POWER switch to the OFF position. Using the microphone Up to two Microphones can be used with the Karaoke System. - Page 9 Daily use Cutting Backing Vocals while you Sing The Karaoke System allows you to reduce or turn off the vocals of the backing track while you sing. To turn off the vocals of the backing track while you sing, rotate the AVC DIAL on the front of the Karaoke System clockwise.
-
Page 10: Cd+G Playback
CD+G playback Playing CD+G discs Loading discs Rotate the POWER switch to the ON position to turn on the Karaoke System. Press the top right hand corner of the CD Door to open. Insert the CD+G Disc into the CD Compartment with the label facing outwards. -
Page 11: Audio Cd Playback
CD+G playback Press the PROG button. The Prog indicator will begin to flash and the number 1 will momentarily appear on the LED Display. This indicates that you can programme the first track. Select the first track using the and I buttons. -
Page 12: Troubleshooting
Troubleshooting General Problem Possible Cause No Power 1. The plug is not plugged into the wall socket. 2. The wall socket is not turned on. No sound is heard 1. The volume is on the minimum setting. There is no sound 1. - Page 13 Troubleshooting Problem Possible Cause The CD does not 1. The CD is incorrectly play loaded. 2. The CD is an unsupported format. 3. The CD is paused. 4. The Karaoke System is not playing CD or CD+G discs. 5. The CD is dirty or scratched.
- Page 14 Troubleshooting Karaoke Problem Possible Cause Some vocals are 1. Backup vocals are still present when supposed to be AUTO VOICE included. CONTROL is on the minimum setting Feedback is heard 1. Microphone is too when singing close to unit or the microphone volume is too high.
-
Page 15: Specification
Operating Frequency Response Power Output Speaker Microphone Unit Dimensions Unit Weight XB6CDG 230V AC 50Hz 12V DC (8 x 1.5V "C" size batteries) (not included) Alkaline is recommended for longer life 0.5W 100 - 10,000 Hz (+/- 3db) 1W x 2 (10% THD) 3”... -
Page 16: Warnings
Warnings WEEE This appliance is labelled in accordance with European Directive 2002/96/ EG concerning used electrical and electronic appliances (Waste Electrical and Electronic Equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances. Sound levels Your hearing is very important to you and to us, so please take care when using this Karaoke System. - Page 17 Warnings Make sure that other people in your household are conversant with the Karaoke System. Don’t obstruct the ventilation vents on the Karaoke System, for example with curtains or soft furnishings. Don’t allow electrical equipment to be exposed to rain or moisture. Store the Karaoke System in a clean, dry environment.
-
Page 18: Electrical Information
Electrical information The mains lead supplied with this Karaoke System is fitted with a BS1363/A 13 amp plug. If it is not suitable for your supply sockets it must be removed and replaced with an appropriate plug. If the plug becomes damaged and/or needs to be replaced please follow the wiring instructions below. -
Page 19: Guarantee
The Karaoke System is guaranteed for twelve months from the date of original purchase. If any defect due to faulty materials or workmanship, contact the Goodmans Helpline. Have your receipt of purchase on hand. The guarantee is subject to the following provisions: •... - Page 20 Technical Support: 0871 230 1777 Rev5-11052010 XB6CDG IB...
