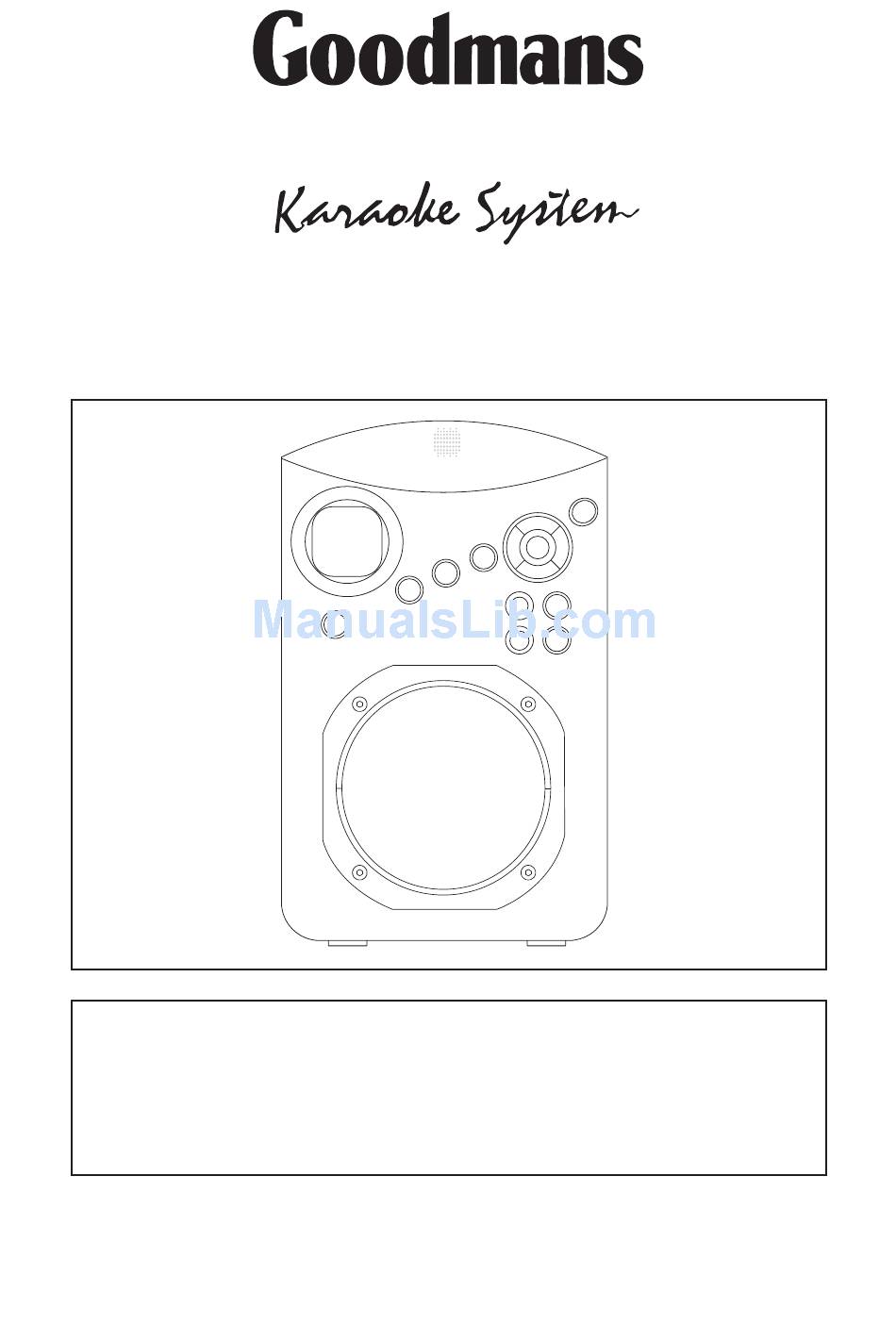

- Page 1 XB5CDG CDG TV GRAPHICS SYSTEM VIDEO READY CONTENTS This product includes the following accessories 1 X Microphone 1 X Scart Lead 1 X CD+G Disc 1 X Colour Camera Before operating this unit, please read this Owners Manual carefully.
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS PREFITTED MAINS PLUGS For your convenience a mains plug has been fitted to this appliance. For your safety please observe the following information. 1. Should the fuse in the plug fail remove the plug from the wall socket and replace the fuse with a 3 Amp ASTA approved to BS 1362 fuse. - Page 3 MAINTENANCE AND CARE SOME DO’S AND DON’TS ON THE SAFE USE OF EQUIPMENT This equipment has been designed and manufactured to meet European safety standards but like any electrical equipment, care must be taken if you are to obtain the best results and safety is to be assured.
- Page 4 LOCATION OF CONTROLS...
- Page 5 1. MIC 2 input socket 2. MIC 2 volume control 3. MIC 1 input socket 4. MIC 1 volume control button button 7. STANDBY button 8. REPEAT button button button 11. MASTER VOLUME control 12. OPEN/CLOSE button 13. MUSIC / VOCAL button 14.
- Page 6 INTRODUCTION The XB5 operates on a power supply of 230V 50Hz AC. The XB5 contains the following facilities: 1. Digital audio CD and Graphic player: 2. 2 microphones Input sockets (1 mic is supplied). 3. AVC (Auto Vocal Control) facility. 4.
- Page 7 USING THE CAMERA 1. Connect the supplied scart cable to unit and TV. Switch on TV and select Scart / AV input. CAMERA DC OUT VIDEO IN VIDEO SWITCH: Slide switch to Camera position. Scart cable 2. Connect the camera to the DC and Video input sockets located at the rear of the unit. a.
- Page 8 SINGING TO MUSIC The microphone can operate together with the CD functions. 1. Insert the supplied microphone into either MIC input socket. 2. Move the ON / OFF switch on the microphone to the ON position and operate the microphone. 3.
- Page 9 PLAYING CD OR CD+G DISCS 1. Push the CD door to open the disc compartment, and load a CD. 2. Close the door, the unit will search the track and the display will show the total number of tracks. 3. Press the button, disc play will begin from the start of the first track.
- Page 10 TRACK SKIP TO SKIP TO THE NEXT TRACK ON A DISC 1. For example to skip ahead to the beginning of track 5 while track 4 is playing, 2. Press the button once. Disc play will resume at the beginning of track 5. The CD player will skip ahead to the next track each time the button is pressed.
-
Page 11: Important Notes
IMPORTANT NOTES Hearing is very important to you and to us so please take care when operating this equip- ment. It is strongly recommended that you follow the listed guidelines in order to prevent possible damage or loss of hearing. ESTABLISH A SAFE SOUND LEVEL Over time your hearing will adapt to continuous loud sounds and will give the impres- sion that the volume has In fact been reduced. -
Page 12: Specifications
SPECIFICATIONS Power supply AC 230V~50Hz CD section system Frequency response 60Hz - 15KHz (+/- 3dB) S/N ratio 50 dB D/A converter 1 bit DAC with 8 times over sampling digital filter CDG section system System PAL I ESD Remark: In case of misfunction due to electrostatic discharge just reset the product (reconnect of power source may be required) to resume normal operation.
