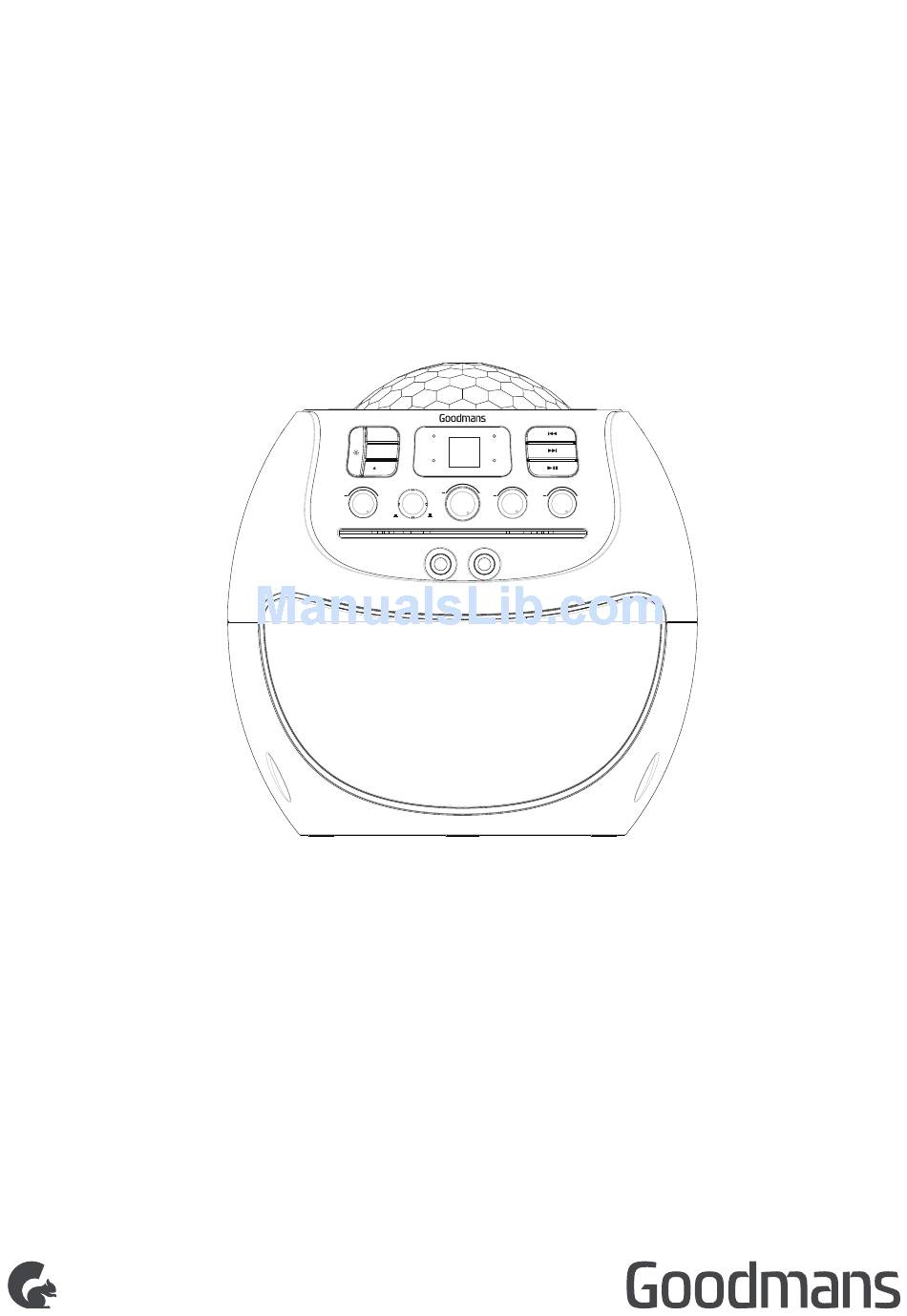

- Page 1 CD+G PORTABLE DISCO KARAOKE PROG POWER PROG REPEAT PLAY/PAUSE REPEAT /STOP VOLUME MIC1 VOL ECHO MIC2 VOL MIC1 MIC2 MODEL: XB13CDG USER MANUAL...
-
Page 2: Quick Setup
Welcome 2 Your CD+G Karaoke System 2.1 In The Box 2.3 Indicators Rear View 2.2 Front View 3 Quick Setup 3.1 Making the Connections 3.7 Connecting the Power 3.2 Display Lyrics on a TV Screen 3.8 Standby & Auto Standby 3.3 TV Connection for Audio &... -
Page 3: Your Karaoke System
Welcome Thank you for choosing this Goodmans product. We’ve been making electronics for the British peoplefor 70 years. Each of our projects has been carefully designed to be great at what it does and this one is no exception. We hope you enjoy your new Karaoke System. -
Page 4: Front View
Front View ECHO control. Adjusts the amount of echo for the microphone output. LIGHT. Illuminated light show PROG POWER PROG REPEAT PLAY/PAUSE REPEAT /STOP VOLUME MIC1 VOL ECHO MIC2 VOL Controls the auto Contro. MIC1 MIC2 PROG button. Activates the program program playlist function. -
Page 5: Rear View
TV input. AUX IN input. connect an external audio source for playblack through the speakers. outputs. RCA STEREO AUDIO Connect to an RCA stereo input on a TV or amplifier. AC MAINS input. BATTERY compartment. XB13CDG... -
Page 6: Making The Connections
Take care to match the socket colours to the jack colours & that the red, white & yellow sockets are all from the same TV input. 5. Select the appropriate video channel on your TV to view the lyrics on-screen and hear the sound from the TV speakers. XB13CDG... - Page 7 RCA STEREO input on your amplifier. 3. Power on the amplifier and select the input you connected the cables to. In order to see the lyrics on your TV screen you also need to connect the yellow cable to your TV (see section 3.1). XB13CDG...
-
Page 8: Connecting The Microphone(S)
Insert the mains power cable into a power socket, and switch the power on. Press the ON/OFF button on the behind of the karaoke machine POWER POWER AUDIO OUT AUDIO OUT VIDEO OUT AUX IN POWER POWER XB13CDG... - Page 9 Adjust the volume to your desired level. When connecting via the headphone output the volume of the karaoke machine is affected by the volume control on the player.Ensure that the audio source(such as an MP3 player) is set to about70-80% to avoid distortion. XB13CDG...
-
Page 10: Fitting The Batteries
Fitting the Batteries Remove the battery cover by pressing the battery cover tabs downwards and out. Insert 6 ‘C’ UM2 type batteries into the battery compartment taking note of the engraved battery direction diagrams on the inside. Replace the battery cover. XB13CDG... -
Page 11: Switching Modes
What is a CD+G disc? A CD+G (CD + graphics) is the standard format for most karaoke discs. Each disc contains the audio track and words that appear on your TV screen. Load a Disc Insert CD into the slot below the dials XB13CDG... -
Page 12: Programmed Playback
Press the PROG button to store track ‘1’ of the playlist. /STOP Repeat steps 2-3 to program up to 20 tracks. When complete press the button to begin playback. To cancel the program sequence press the STOP button twice.The PROG indicator will go off. XB13CDG... -
Page 13: Repeat Single/All Track(S)
REPEAT indicator to the right of /STOP the display stop flashing and remain solid. To cancel the repeat function press the REPEAT button for a third time.You will see the REPEAT indicator to the right of the display go off. XB13CDG... -
Page 14: Other Operation
MAX will cut the vocals out almost completely MIC1 when singing. 4.10 Light Effect Show LED ball can be rotated light patterns onto walls and ceilings. PROG 1. Press the LIGHT button on the front of the karaoke machine to enable the light show. REPEAT /STOP XB13CDG... -
Page 15: Troubleshooting
Check you have loaded a CD+G disc that contains lyrics. No sound from the microphone The MIC VOLUME control is set to MIN. The microphone ON/OFF switch is set to the OFF position. The microphone is not connected properly. The microphone is damaged; try another microphone. XB13CDG... -
Page 16: Technical Specification
AC 230-240V ~ 50 Hz Power Supply 6 x 'C' UM2 type batteries Speaker Output Power 2W (RMS) Video Output PAL composite (RCA) Supported Disc Types CD, CD+G,CD-R,CD-RW Customer Support Our customer service team is available for technical or guarantee support.Visit www.goodmans.co.uk/support QSG-SEP16-XB13CDG www.goodmans.co.uk...
