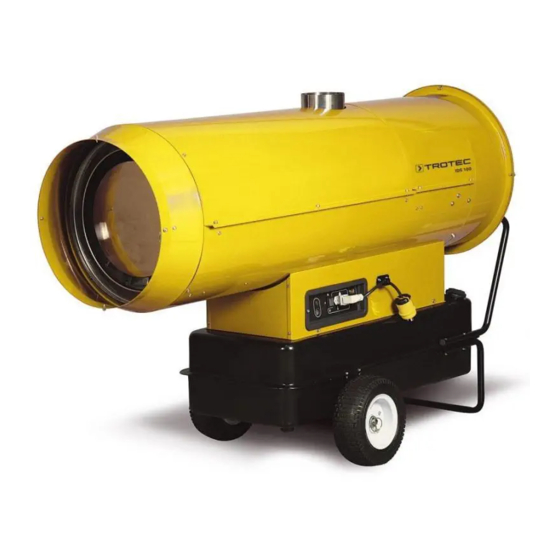

- Page 1 IDS 100 OPERATION MANUAL OIL HEATER...
-
Page 2: Table Of Contents
Setting of the air setting ring ..... . . A-9 3. Guarantee provisions 1. Notes on how to use the manual The warranty period granted for the oil heating unit IDS 100 shall be 12 months. This operating manual contains all important information required for a Any damage to the device resulting from non-compliance with the in- safe commissioning and use of your oil heating unit. -
Page 3: General Safety Instructions
5. Function and product characteristics sons and could result in property damage and damage to the environment. The oil heating unit IDS 100 is used to heat up room air in order to achieve a fast heating of large rooms. Risk of explosion! The oil heating unit is operated with heating oil. -
Page 4: Fuels
9. Description of device Proper use The oil heating unit IDS 100 has been developed for the generation of hot The oil heating unit IDS 100 consists of the following components: air and may be used indoors and in roofed outdoor areas. -
Page 5: Installation And Commissioning
10. Installation and commissioning • Check that the scope of delivery of your oil heating unit is com- plete. If an accessory part is missing, please contact the Trotec customer service or the specialist dealer from whom you pur- chased the device. -
Page 6: Switching Off The Oil Heating Unit
This will cause the flame control system to be activated and the device will be blocked. • Wait for approx. 1 minute. • Press and hold the reset button for at least 5 seconds. Operating manual – IDS 100... -
Page 7: Transport
Danger to life due to improper repair! Do no attempt to carry out modifications or repairs on the device. Any unauthorised modification may result in serious injuries or even death. Have repairs carried out by a certified specialist workshop. Operating manual – IDS 100... - Page 8 - have the heating oil circuit checked for air that may have entered the circuit and to have the tight- ness of the lines and filter seal checked. - have the nozzle cleaned or replaced. Operating manual – IDS 100...
- Page 9 - have the pump pressure value checked. - have the nozzle replaced. Device does not switch off continuous green Solenoid valve seal defec- - Have the solenoid valve replaced by the customer light tive service. Operating manual – IDS 100...
-
Page 10: Appendix
Ignition transformer RFI filter Heated filter (optional) DV Change-over switch, power stage (high-low) Plug for heated filter TD Transformer Setting of the air setting ring Type IDS 100 Parameter Value Setting of air setting ring A=1.5 Operating manual – IDS 100... - Page 12 Trotec GmbH & Co. KG Grebbener Str. 7 D-52525 Heinsberg +49 2452 962-400 +49 2452 962-200 info @ trotec.com www.trotec.com...
