APPLICATION:

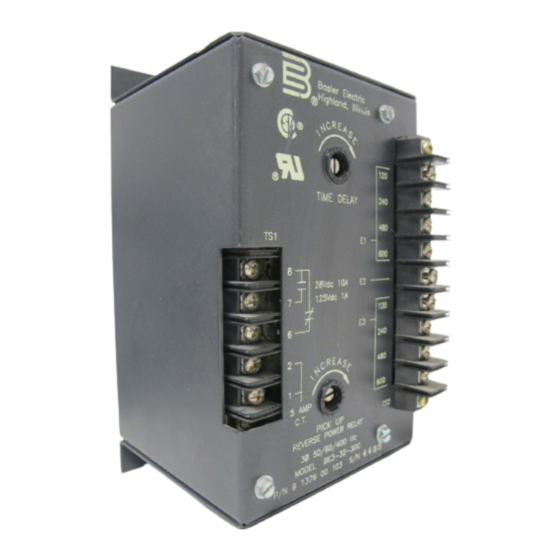

The BE3-32 Reverse Power Relay is designed to protect the prime mover
of a paralleled generator that has lost prime mover torque from a power
reversal and subsequent "motoring". The relay also protects against a
power reversal caused by a frequency increase of the other paralleled
power source. The relay is applicable to three phase, 50, 60 and 400 Hz
power systems.
FEATURES:
Reliable solid-state design.
•
Adjustable pickup sensitivity.
•
Adjustable time delay.
•
Two models: for single phase sensing and three phase sensing.
•
Both with either AC or DC output contacts.
Designed for use on 50, 60 or 400Hz systems.
•
Can be used to monitor current flow.
•
Automatic reset.
•
Low input burden.
•
Rugged construction.
•
Available from stock.
•
CSA certified, UL recognized.
•
P.
0.
BOX 269 HIGHLAND, ILLINOIS 62249,
BE3-32-3
(3 Phase)
.Basler Electric
§
U.S.A.
PHONE 618-654-2341
CLASS 300 EQUIPMENT
BE3-32
REVERSE POWER RELAY
DEVICE NUMBER: 32
FAX 618-654-2351
FEATURES AND
APPLICATIONS
page
this
DESCRIPTION AND
SPECIFICATIONS
&
page 2
3
INTERCONNECTION
DIAGRAMS
page 3
OUTLINE DRAWINGS
4
page
INSTRUCTION MANUAL
Reference
Publication Number
9 1376 00 990
UEE-4
9-94
